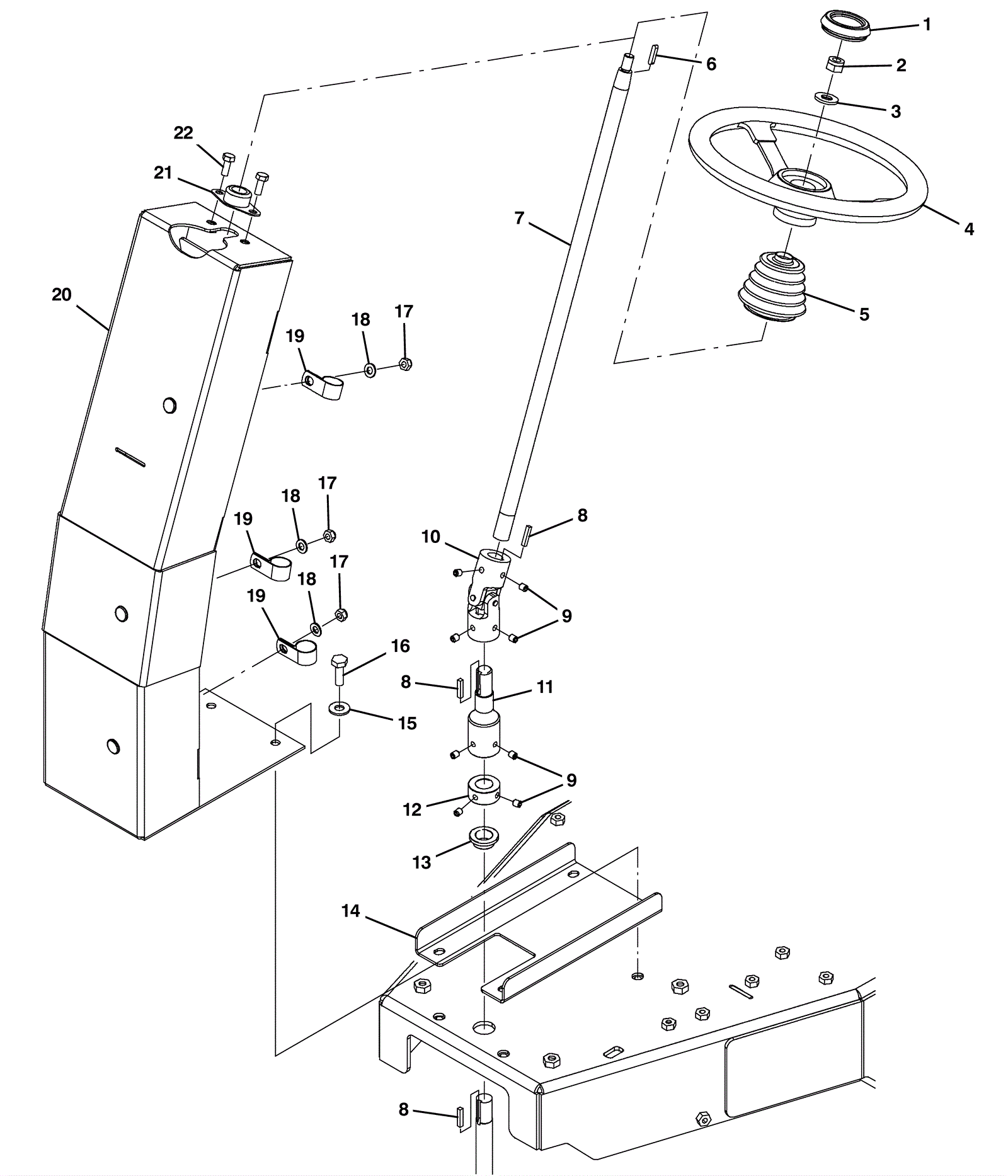

B10 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-8080 Steering wheel cap $11.99 1 usually ships 5-16 days
2 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 ships same day
3 275-9343 WASHER, FLAT, 0.53B 1.12D .11, STL, PL (Tennant Industrial) $7.52 1 usually ships 5-16 days
4 275-8079 Steering wheel $200.75 1 usually ships 5-16 days
5 275-8081 Steering shaft bellows $9.35 1 usually ships 5-16 days
6 275-1468 Square keyway $3.96 1 ships same day
7 275-8078 Steering wheel shaft $247.61 1 ships same day
8 175-3200 Square keyway $3.30 3 ships same day
9 175-4926 Screw 5/16-18 x 3/8 set nylon lock $3.96 8 ships same day
10 275-5323 U joint $109.56 1 ships same day
11 275-7029 Steering shaft adapter $234.85 1 usually ships 1-5 days
12 275-7030 Shaft collar $32.78 1 usually ships 1-5 days
13 275-7031 Flanged bushing $26.07 1 usually ships 1-5 days
14 275-7032 Steering plate $12.76 1 usually ships 1-5 days
15 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
16 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 4 ships same day
17 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 usually ships 11-24 days
18 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
19 175-2260 P clamp $3.96 3 usually ships 5-16 days
20 275-8077 Steering support weldment $611.16 1 usually ships 1-5 days
21 175-3201 Flanged bearing $5.83 1 usually ships 5-16 days
22 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
