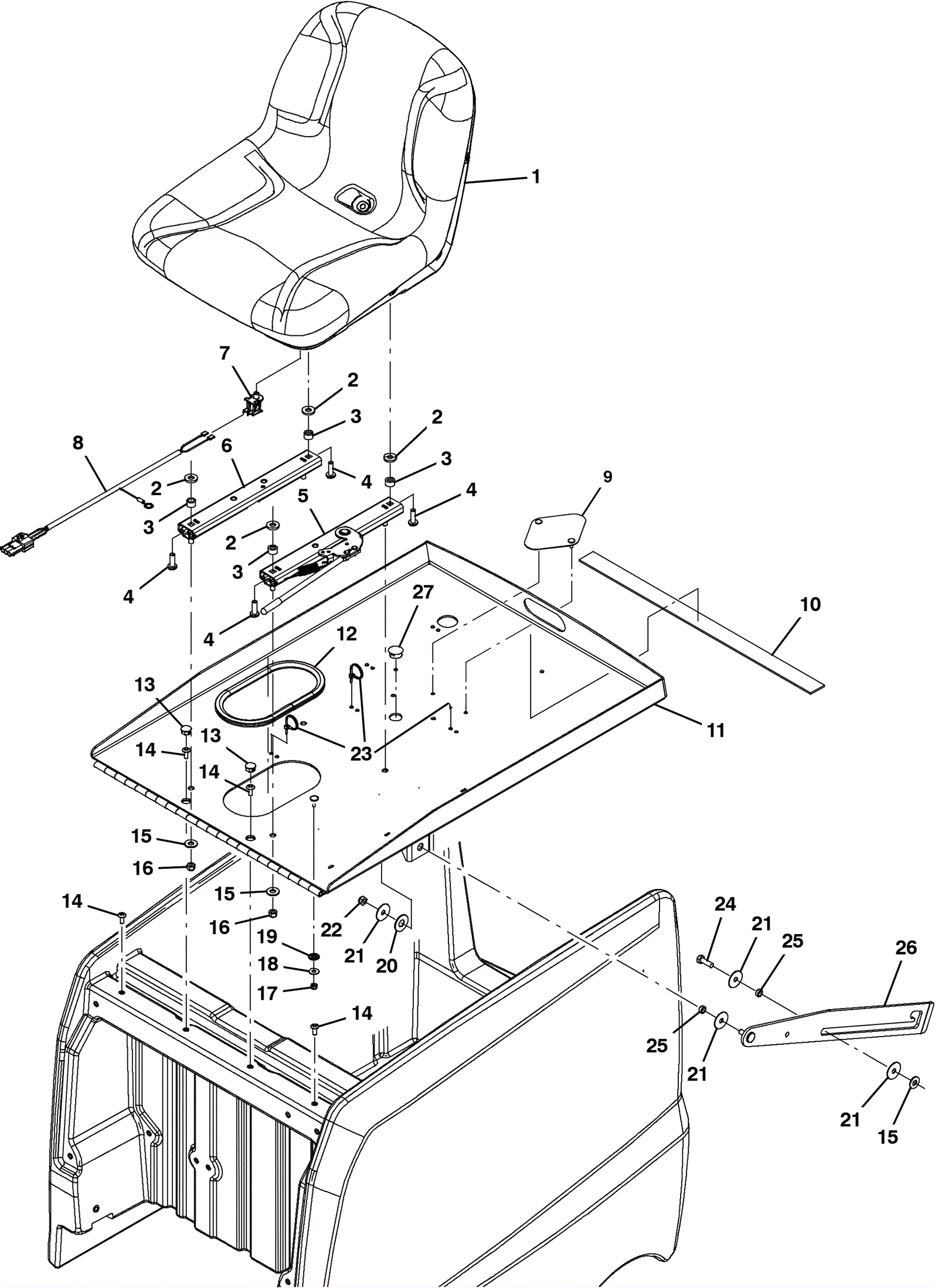

B10 Seat Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9328 Seat kit (includes screw and spacer) $268.18 1 ships same day
2 175-3176 Washer 3/8 flat steel plated $3.30 4 ships same day
3 275-9333 Spacer $5.15 4 usually ships 1-5 days
4 275-9278 SCREW, PAN, PHL, .31-18 X 1.00, G2 (Tennant Industrial) $5.50 4 usually ships 10-13 days
5 275-8070 11 1/2 inch seat adjuster rail with latch $47.32 1 ships same day
6 275-8069 11 1/2 inch seat adjuster rail (OBSOLETE)- SEE NOTE $60.50 1 usually ships 10-13 days
7 275-9280 Seat switch $11.11 1 usually ships 10-13 days
8 275-9329 Seat harness $44.55 1 ships same day
9 275-7023 Cover plate (OBSOLETE) $6.38 1 (models without flashing light option) (before SN 10923468) usually ships 10-13 days
10 275-7024 Adhesive rubber pad $27.61 1 usually ships 1-5 days
11 275-7025 Seat plate $454.96 1 usually ships 1-5 days
12 275-8075 Trim $39.30 1 ships same day
13 275-7026 Plug (Tennant Industrial) $2.50 2 usually ships 1-5 days
14 275-7027 Screw M6-1 x 16mm truss head phillips $3.30 4 usually ships 10-13 days
15 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 5 ships same day
16 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
17 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 3 ships same day
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
19 275-0288 Washer 1/4 internal-external lock $4.36 1 ships same day
20 275-0055 WASHER, FLAT, 0.52B 1.25D .06, NYL (Tennant Industrial) $5.67 1 usually ships 1-5 days
21 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
22 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
23 175-7795 Cable tie $5.15 3 ships same day
24 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
25 175-0550 Sleeve $5.02 2 ships same day
26 275-7028 Arm bracket $29.70 1 usually ships 1-5 days
27 175-3126 Plug $5.28 1 (after SN 10923467) usually ships 10-13 days
