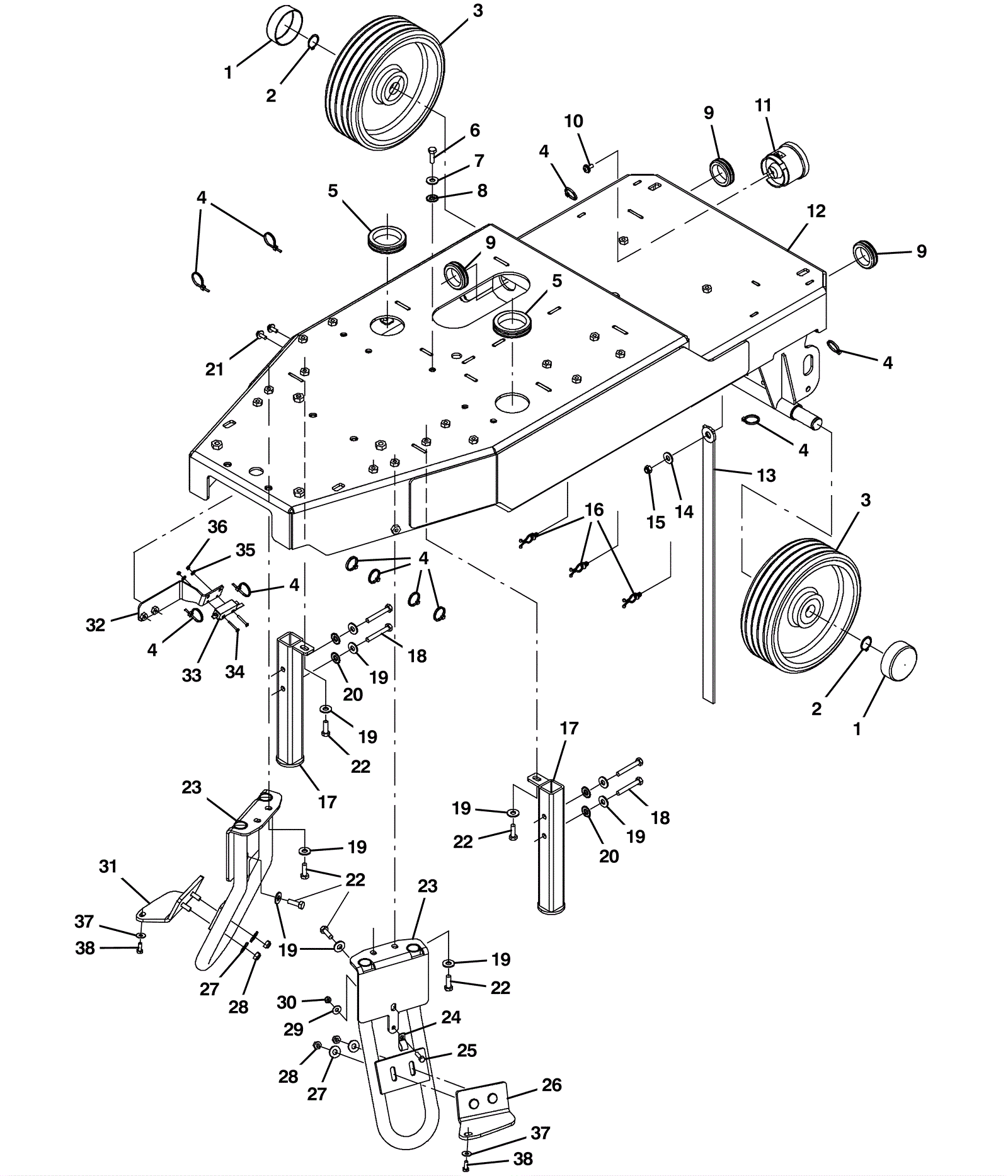

B10 Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-8060 Cap $7.37 2 ships same day
2 175-3294 Retaining ring $2.42 2 ships same day
3 275-8059 Tire assembly $205.48 2 ships same day
4 175-7795 Cable tie $3.85 11 ships same day
5 275-7016 Rubber grommet $3.96 2 usually ships 1-5 days
6 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
7 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
8 175-2893 Washer 5/16 internal/external locking $3.30 1 usually ships 5-16 days
9 175-2366 Rubber grommet $5.83 3 ships same day
10 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 1 ships same day
11 275-8062 Horn $146.52 1 usually ships 5-16 days
12 275-7017 Frame weldment $1,399.20 1 usually ships 1-5 days
13 275-9261 Static strip with grommet $25.74 1 usually ships 5-16 days
14 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
15 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 usually ships 11-24 days
16 175-2095 Keeper clip $3.08 3 usually ships 5-16 days
17 275-7018 Jack weldment $76.45 2 usually ships 1-5 days
18 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 4 ships same day
19 999-9097 Washer M8 flat stainless steel $0.99 12 ships same day
20 175-2893 Washer 5/16 internal/external locking $3.30 4 usually ships 5-16 days
21 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
22 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 8 ships same day
23 275-7019 Stabilization weldment $168.08 2 usually ships 1-5 days
24 175-2667 P clamp $3.96 1 usually ships 5-16 days
25 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
26 275-7020 Left hand support bracket $14.63 1 usually ships 1-5 days
27 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
28 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 usually ships 11-24 days
29 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
30 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
31 275-7021 Right hand support bracket $16.50 1 usually ships 1-5 days
32 275-7022 Switch mounting bracket $11.77 1 usually ships 1-5 days
33 175-6532 Snap switch $14.41 1 usually ships 5-16 days
34 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
35 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
36 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
37 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
38 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
