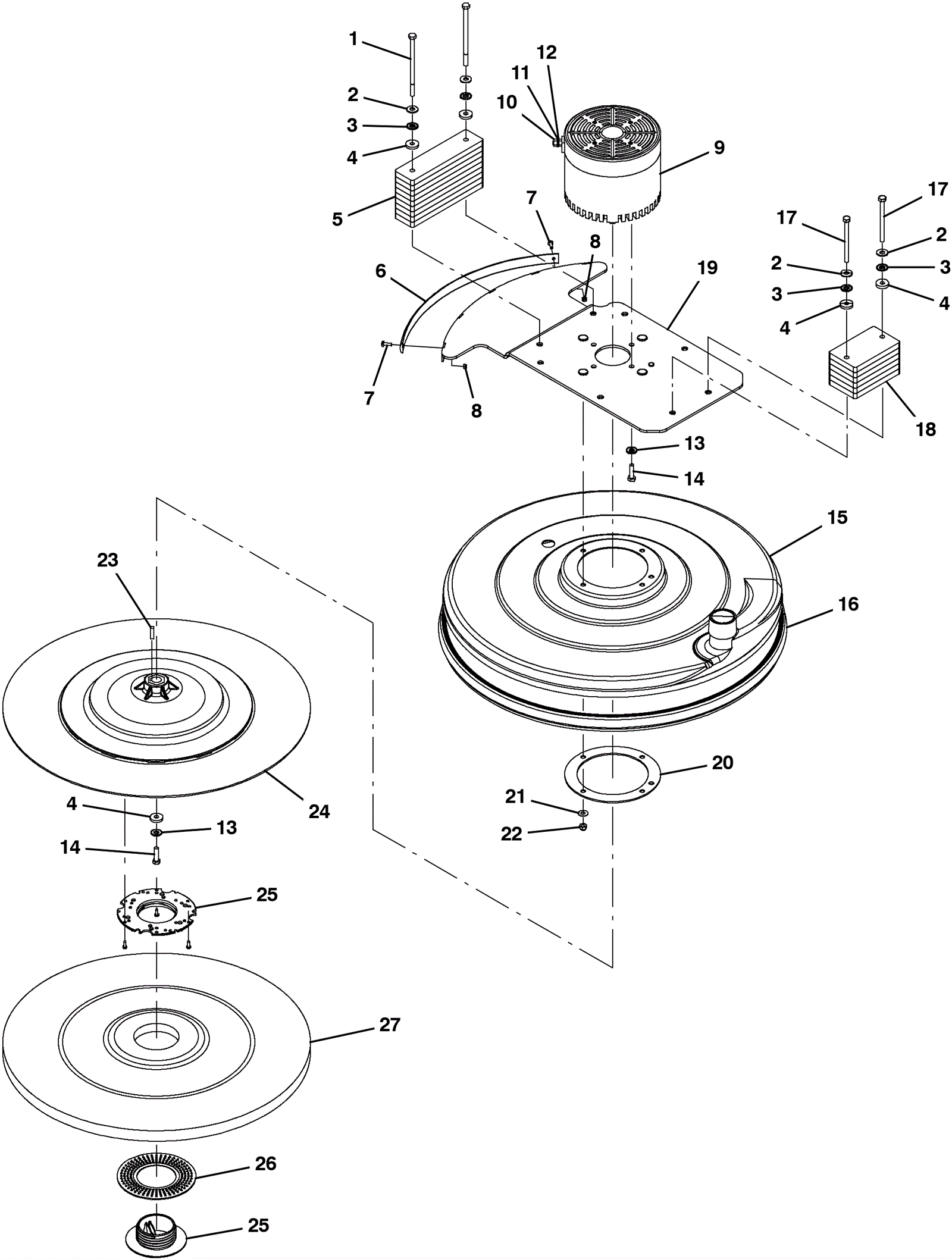

B10 Pad Driver Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7000 Screw M8-1.25 x 140mm hex hd stainless steel $4.95 2 (24 inch) usually ships 5-16 days
2 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
3 175-2893 Washer 5/16 internal/external locking $3.30 4 (24 inch) usually ships 5-16 days
4 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 5 ships same day
5 275-7001 Long block $14.63 9 (24 inch) usually ships 5-16 days
6 275-7002 3 foot bumper strip $110.00 1 ships same day
7 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 2 ships same day
8 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
9a 475-2901 MOTOR KIT, BURNISH, REPLMT [B10] $3,726.03 1 (includes 9b-12) usually ships 5-16 days
9b 275-7004 Carbon brush assembly $297.00 1 (includes 8 carbon brushes and springs) usually ships 5-16 days
10 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
11 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
12 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
13 999-1407 Washer 5/16 belleville $3.04 5 ships same day
14 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 5 ships same day
15a 275-7007 24 inch (600mm) shroud assembly $477.51 1 usually ships 5-16 days
15b 275-7014 27 inch (680mm) shroud assembly $583.11 1 usually ships 5-16 days
16a 275-7008 24 inch (600mm) skirt assembly $223.52 1 ships same day
16b 275-7015 27 inch (680mm) skirt assembly $228.03 1 ships same day
17 175-0822 SCREW, HEX, M8 X 1.25 X 100, SS (Tennant Industrial) $7.52 2 (24 inch) usually ships 5-16 days
18 275-7006 Short block $13.97 6 (24 inch) usually ships 5-16 days
19a 275-7005 Motor mounting plate (for 24 inch model) $143.44 1 usually ships 1-5 days
19b 275-7013 Motor mounting plate (for 27 inch model) $132.77 1 usually ships 1-5 days
20 275-7010 Plate $7.26 1 usually ships 1-5 days
21 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
22 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 usually ships 11-24 days
23 175-5356 Square keyway $3.30 1 ships same day
24a 275-7011 24 inch (600mm) pad driver assembly $816.09 1 (includes 25-26) usually ships 5-16 days
24b 275-7525 27 inch (680mm) pad driver assembly $494.67 1 (includes 25-26) usually ships 5-16 days
25a 175-0182 Universal center lock $32.23 1 (OEM) ships same day
25b 991-2202 Big mouth pad holder set (blue) $17.75 1 (NON-OEM) ships same day
26 275-7012 Locking collar $10.12 1 usually ships 5-16 days
27 475-1263 PAD, BURNISH, 24.0D, HAIRBLEND 1PK=1PAD $24.53 1 usually ships 5-16 days
