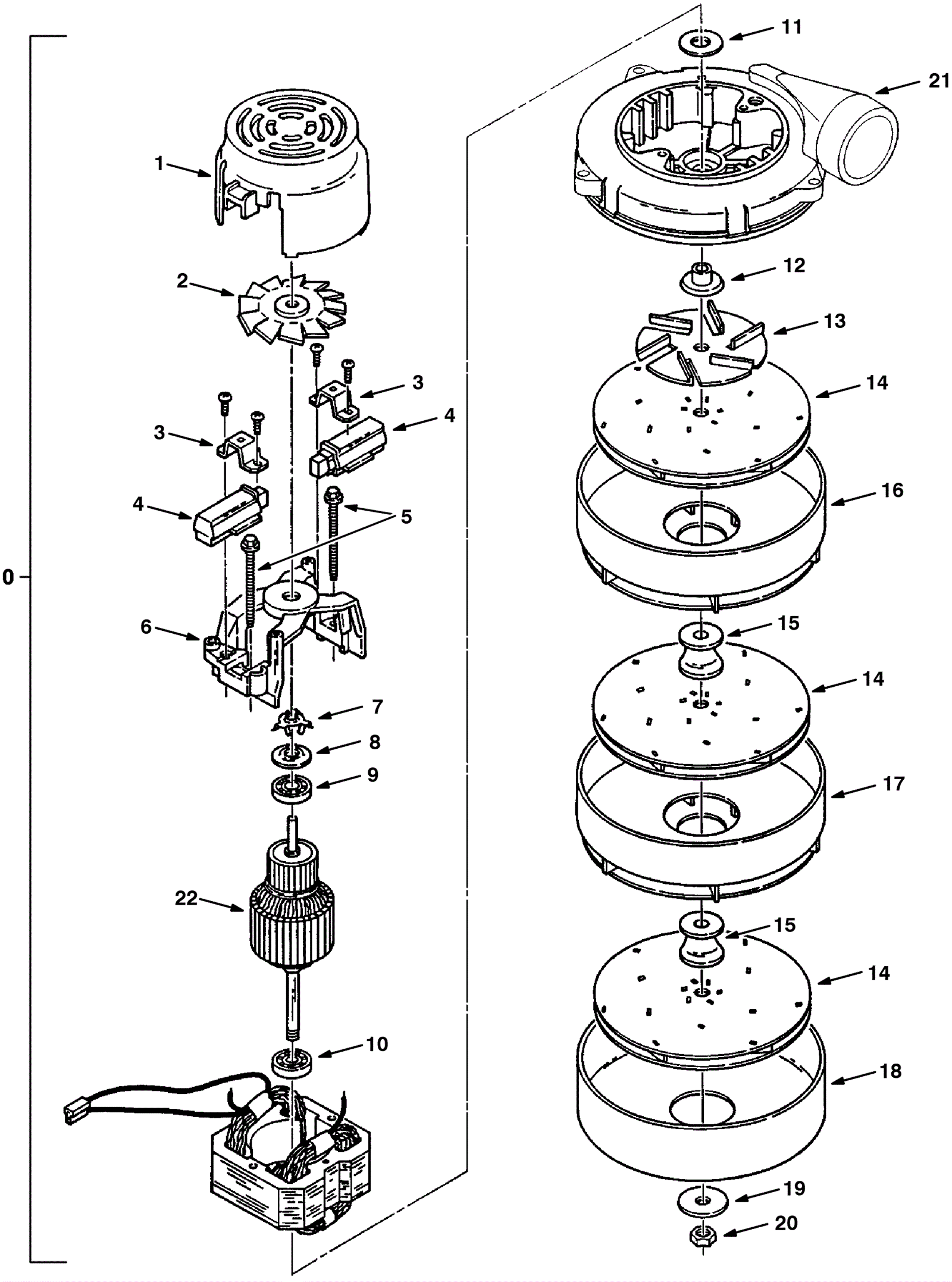

515 Electric Motor Assembly - 17363

#PartDescriptionPriceReqNotesAvailability
0 275-5200 36V 3 stage vacuum motor kit $361.24 1 (includes 1-22) usually ships 3-26 days
1 275-0172 Vacuum motor housing $20.46 1 usually ships 5-16 days
2 275-0173 Vacuum motor fan $26.95 1 usually ships 5-16 days
3 275-0174 Brush holder clamp $4.07 2 usually ships 1-5 days
4 991-1222 Plastic covered carbon brush (sold individually) $10.77 2 ships same day
5 275-0175 Vacuum motor screw $7.81 2 usually ships 1-5 days
6 275-0176 Vacuum motor bracket $29.92 1 usually ships 1-5 days
7 175-5279 Spring $2.97 1 usually ships 1-5 days
8 275-0177 Vacuum motor armature disc $4.07 1 usually ships 1-5 days
9 275-0178 Vacuum motor bearing $35.53 1 usually ships 5-16 days
10 175-5281 Bearing $33.66 1 usually ships 5-16 days
11 175-5282 Washer neoprene $4.18 1 usually ships 1-5 days
12 275-0179 Vacuum impeller spacer $12.65 1 usually ships 1-5 days
13 175-5284 Fan $6.38 1 usually ships 1-5 days
14 175-5285 Vacuum fan $13.64 3 usually ships 5-16 days
15 275-0180 Vacuum fan impeller spacer $18.70 2 usually ships 1-5 days
16 175-5287 Stationary fan $24.75 1 usually ships 1-5 days
17 175-5288 Stationary fan $23.32 1 usually ships 1-5 days
18 275-0181 Vacuum fan shell $19.03 1 usually ships 1-5 days
19 275-0182 VR, WASHER (Tennant Industrial) $6.18 1 usually ships 1-5 days
20 175-5290 Nut $4.18 1 usually ships 1-5 days
21 175-5291 Fan end bracket $102.63 1 usually ships 1-5 days
22 275-0183 Motor armature $241.12 1 usually ships 1-5 days
N/S 175-5293 Female connector $10.01 1 ships same day
N/S 175-5294 Female terminal $3.30 2 usually ships 1-5 days
