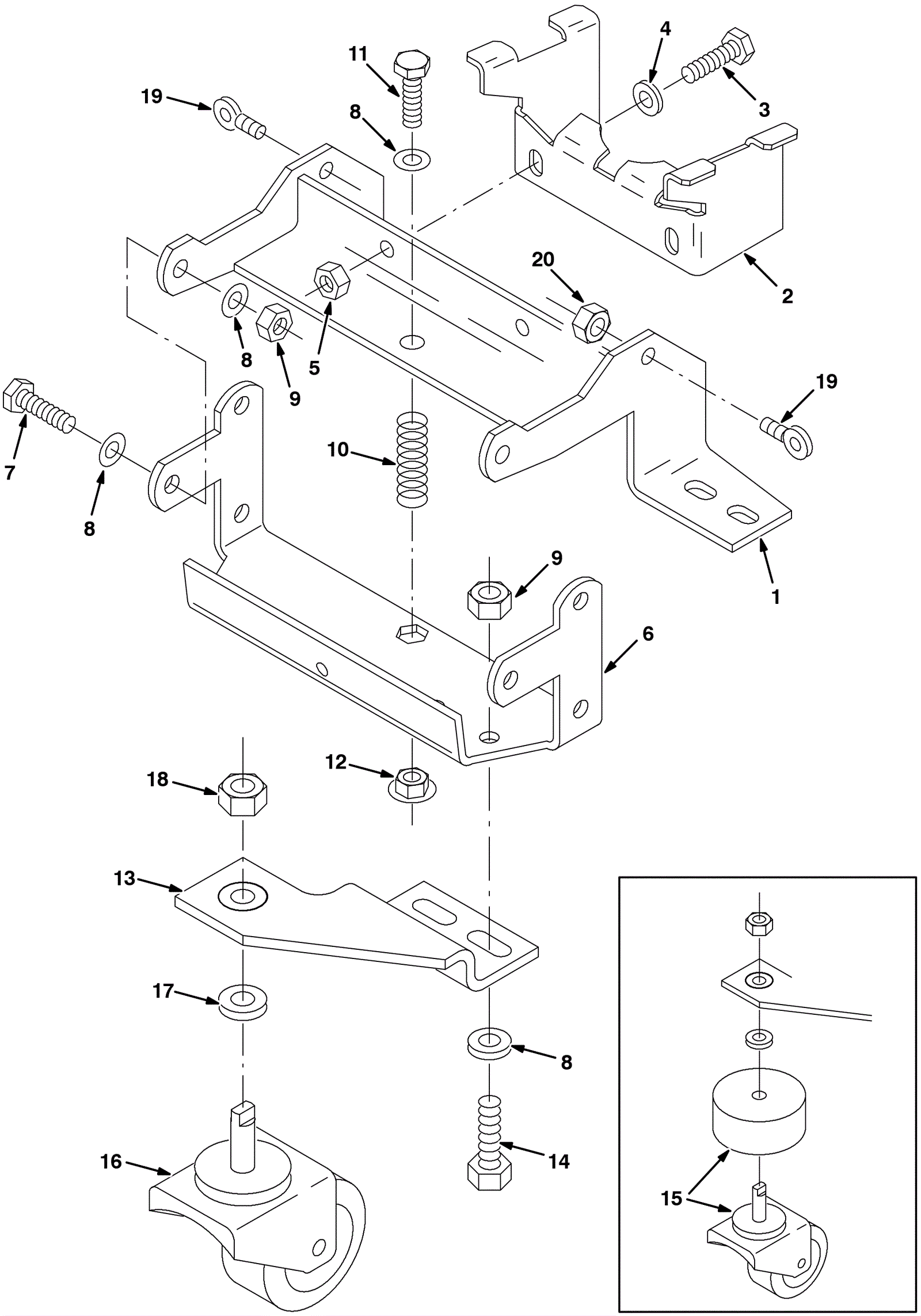

515 Rear Squeegee Mount Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-2244 BRACKET WLDT, MTG, SQGE (Tennant Industrial) $288.91 1 usually ships 1-5 days
2 275-2245 BRACKET, HOSE, SQGE (Tennant Industrial) (OBSOLETE) $81.00 1 usually ships 1-5 days
3 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
4 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
5 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 usually ships 11-24 days
6 275-2246 PIVOT (Tennant Industrial) (OBSOLETE) $63.13 1 usually ships 5-16 days
7 999-0774 Bolt M10-1.5 x 30mm hex head stainless steel full thread $0.99 2 ships same day
8 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 7 ships same day
9 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 4 ships same day
10 175-0790 SPRING, DSL, 1.00OD 0.50ID 2.00L (Tennant Industrial) $62.79 1 usually ships 1-5 days
11 175-0792 Bolt M10-1.5 x 60mm hex head stainless steel $6.60 1 usually ships 5-16 days
12 175-0791 Nut M10 x 1.5 hex flange $3.96 1 ships same day
13 N/A Not available Call for price 1 (caster bracket) usually ships 3-26 days
14 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 2 ships same day
15 275-2248 CASTER KIT, SEALED [3.0 DIM] (Tennant Industrial) $185.37 1 (before SN 004733) usually ships 5-16 days
16 275-2249 CASTER, SWIVEL, 3.0D 1.4W, .50-13 STEM (Tennant Industrial) $255.01 1 (after SN 004732) usually ships 5-16 days
17 175-2188 Washer $3.30 1 usually ships 5-16 days
18 999-0050 Nut 1/2-13 hex jam plain finish $0.99 1 ships same day
19 375-2307 Steel Bolt - 1.38 x 0.47 in $8.85 2 usually ships 5-16 days
20 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
