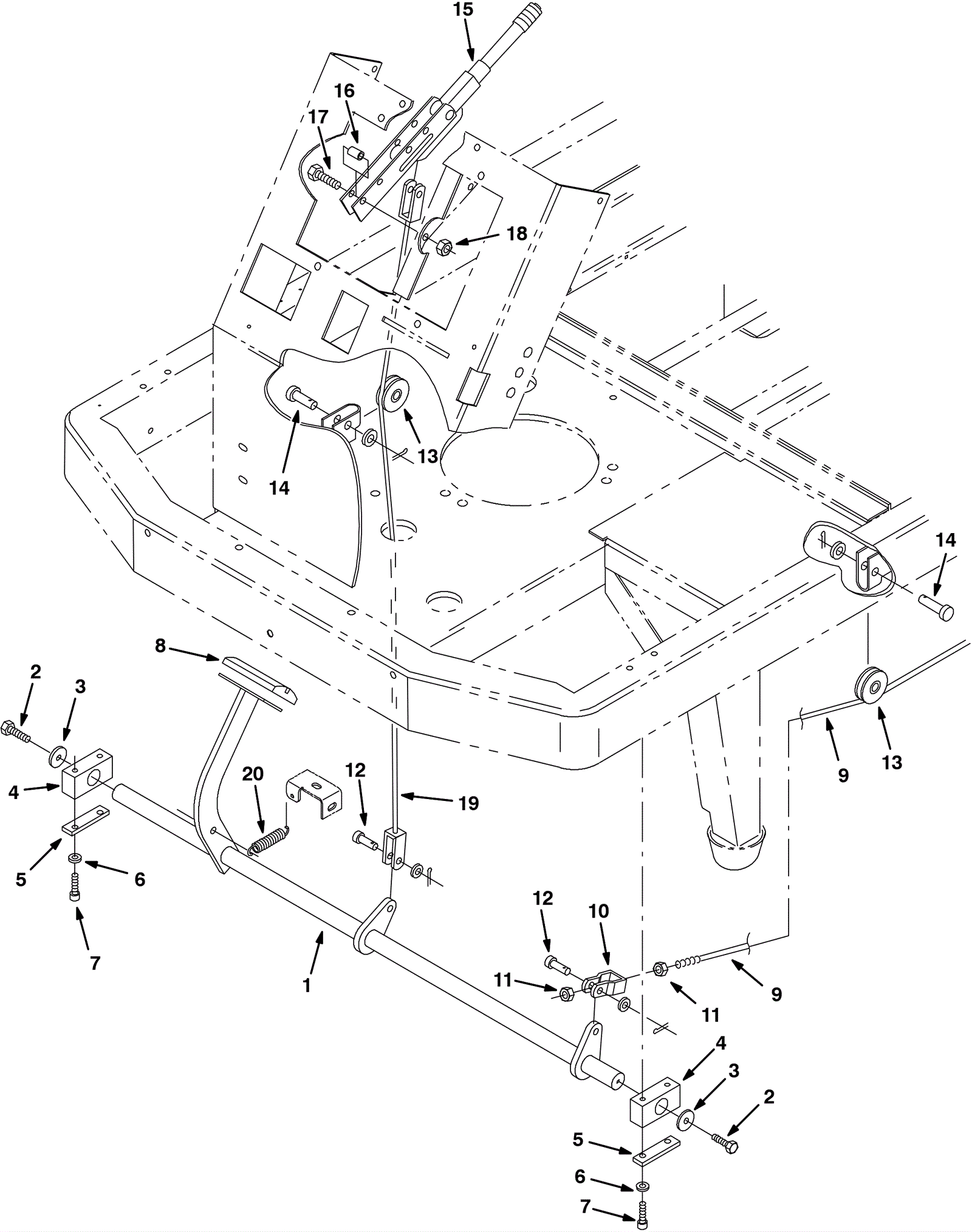

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
275-2016
|
Front brake shaft weldment (Tennant Industrial) (OBSOLETE) |
$604.10
|
1 |
|
usually ships 1-5 days |
2 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
$0.99
|
2 |
|
ships same day |
3 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
$0.99
|
2 |
|
ships same day |
4 |
275-2017
|
BEARING, PILLOWBLOCK, 1.02B [SOLID PYE] (Tennant Industrial |
$31.84
|
2 |
|
usually ships 1-5 days |
5 |
275-2018
|
Support bar (Tennant Industrial) (OBSOLETE) |
$91.10
|
2 |
|
usually ships 1-5 days |
6 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
7 |
175-0614
|
Screw M8-1.25 x 60mm socket head (Tennant Industrial) |
$8.84
|
4 |
|
usually ships 10-16 days |
8 |
175-3279
|
Pedal pad |
$30.58
|
1 |
|
usually ships 10-16 days |
9 |
N/A
|
Not available |
Call for price
|
1 |
(brake cable) |
usually ships 3-26 days |
10 |
N/A
|
Not available |
Call for price
|
1 |
(brake adjust clevis) |
usually ships 3-26 days |
11 |
999-1281
|
Nut M10-1.25 hex fine thread |
$0.99
|
2 |
|
usually ships 1-5 days |
12 |
175-0637
|
Clevis pin |
$4.09
|
2 |
|
usually ships 10-16 days |
13 |
275-0912
|
Pulley |
$25.63
|
2 |
|
usually ships 1-5 days |
14 |
N/A
|
Not available |
Call for price
|
2 |
(clevis pin) |
usually ships 3-26 days |
15 |
275-2022
|
LEVER, BRAKE, PARKING (Tennant Industrial) |
$227.88
|
1 |
|
usually ships 1-5 days |
16 |
275-2023
|
TUBE, 0.33ID 0.51OD 00.8L, STL, PL (Tennant Industrial) |
$14.17
|
2 |
|
usually ships 1-5 days |
17 |
175-3436
|
Bolt 8mm-1.25 x 40mm hex head |
$4.09
|
2 |
|
usually ships 1-5 days |
18 |
999-0665
|
Nut M8-1.25 flange lock |
$0.99
|
2 |
|
ships same day |
19 |
N/A
|
Not available |
Call for price
|
1 |
(cable service brake) |
usually ships 3-26 days |
20 |
N/A
|
Not available |
Call for price
|
1 |
(extension spring) |
usually ships 3-26 days |
