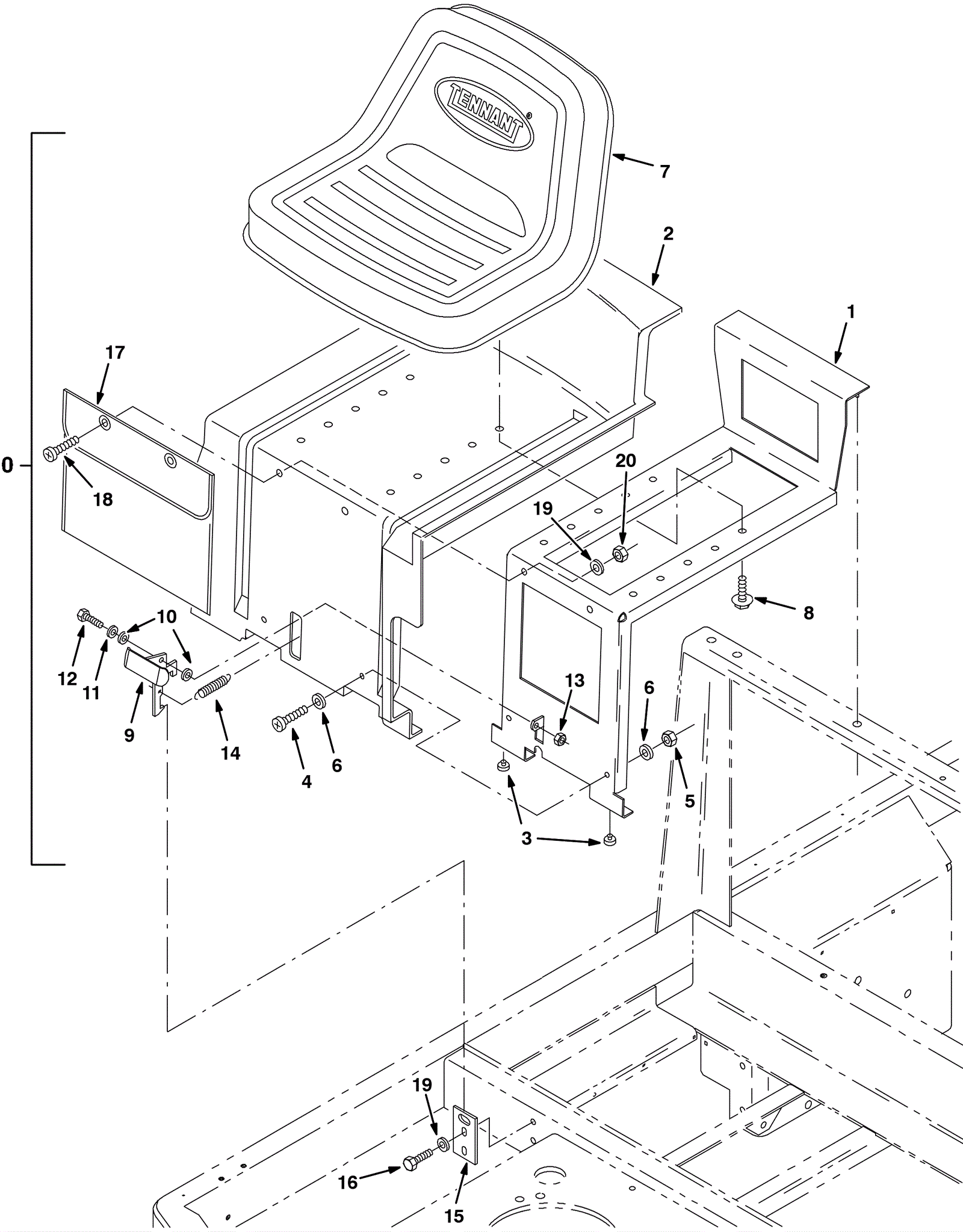

# | Part | Description | Price | Req | Notes | Availability |
0 |
N/A
|
Not available |
Call for price
|
1 |
(includes 1-14) (seat assembly kit) |
usually ships 3-26 days |
1 |
N/A
|
Not available |
Call for price
|
1 |
(seat support frame) |
usually ships 3-26 days |
2 |
N/A
|
Not available |
Call for price
|
1 |
(seat support shroud panel) |
usually ships 3-26 days |
3 |
275-1992
|
BUMPER, REAR, RH, 0.09IN MATL (Tennant Industrial) |
$4.60
|
2 |
|
usually ships 1-5 days |
4 |
275-1993
|
SCREW, PAN, PHL, M8 X 1.25 X 30, 4.8 (Tennant Industrial) |
$5.51
|
2 |
|
usually ships 1-5 days |
5 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
$0.99
|
2 |
|
ships same day |
6 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
4 |
|
ships same day |
7 |
275-1994
|
Seat assembly (TENNANT INDUSTRIAL) |
$512.69
|
1 |
|
usually ships 5-16 days |
8 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
$1.50
|
4 |
|
ships same day |
9 |
N/A
|
Not available |
Call for price
|
1 |
(latch) |
usually ships 3-26 days |
10 |
175-8945
|
Washer 9/32 x 5/8 x 1/16 nylon |
$2.31
|
2 |
|
usually ships 1-5 days |
11 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
$0.99
|
1 |
|
ships same day |
12 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
$0.99
|
1 |
|
ships same day |
13 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
$1.32
|
1 |
|
ships same day |
14 |
275-1997
|
SPRING, EXTN, 0.96OD 0.05WIR 01.4L (Tennant Industrial) |
$11.36
|
1 |
|
usually ships 1-5 days |
15 |
N/A
|
Not available |
Call for price
|
1 |
(strike plate) |
usually ships 3-26 days |
16 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
$1.85
|
2 |
|
ships same day |
17 |
175-9796
|
Pouch |
$31.90
|
1 |
|
usually ships 1-5 days |
18 |
275-1993
|
SCREW, PAN, PHL, M8 X 1.25 X 30, 4.8 (Tennant Industrial) |
$5.51
|
2 |
|
usually ships 1-5 days |
19 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
4 |
|
ships same day |
20 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
$0.99
|
2 |
|
ships same day |
