# | Part | Description | Price | Req | Notes | Availability |
0 |

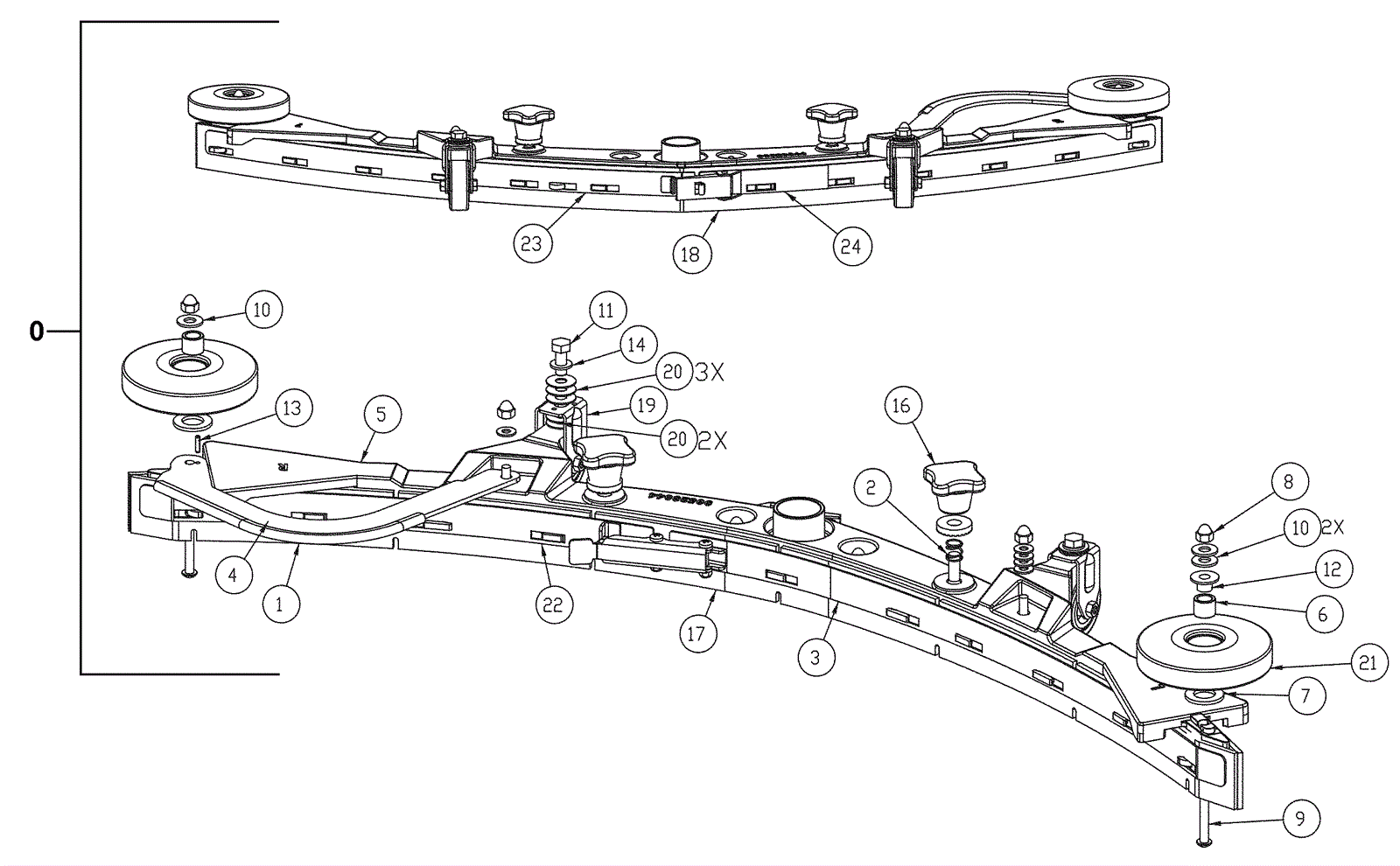

274-9472
|
38 inch squeegee assembly curved |
$763.19
|
1 |
(includes 1-24 and N/S part) |
usually ships 4-14 days |
1 |
174-8326
|
Edge trim black 5/16 x 10 inch |
$15.17
|
1 |
|
ships same day |
2 |
374-1935
|
SPRING, COMP .4 ID X .5FL SS |
$1.42
|
2 |
|
usually ships 4-14 days |
3 |
274-5745
|
STRAP W/ LATCH, FRONT LEFT, 38 inch SQG |
$111.58
|
1 |
|
usually ships 4-14 days |
4 |
174-9438
|
38 inch squeegee bumper |
$20.04
|
1 |
|
usually ships 4-14 days |
5 |
274-8804
|
38 inch SQG BASE ASSY, C.S. SEE NOTES (OBSOLETE) |
$378.82
|
1 |
|
usually ships 1-5 days |
6 |
174-8328
|
Bushing |
$5.51
|
2 |
|
usually ships 4-14 days |
7 |
999-0349
|
Washer 5/8 SAE flat |
$0.99
|
2 |
|
ships same day |
8 |
999-1344
|
Nut 1/4-20 acorn stainless steel |
$1.38
|
2 |
|
ships same day |
9 |
999-0621
|
Screw 1/4-20 x 3 truss head slotted stainless steel |
$5.79
|
2 |
|
ships same day |
10 |
174-8251
|
Washer flat stainless steel |
$1.08
|
3 |
|
ships same day |
11 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
$2.79
|
2 |
|
ships same day |
12 |
374-1803
|
BUSHING-FLG .31 X .435 X .325 NYL |
$0.97
|
1 |
|
usually ships 4-14 days |
13 |
274-9820
|
Pin-roll |
$0.97
|
1 |
|
usually ships 1-5 days |
14 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
2 |
|
ships same day |
16 |
174-8339
|
Star knob |
$2.98
|
2 |
|
ships same day |
17 |
174-8180
|
Squeegee blade front polyurethane |
$47.68
|
1 |
|
usually ships 4-14 days |
18 |
174-8179
|
Squeegee blade rear polyurethane |
$29.11
|
1 |
|
ships same day |
19 |
174-8933
|
Fixed caster |
$12.43
|
2 |
|
ships same day |
20 |
374-1931
|
Washer flat 8.3 x 22 x 1.00mm stainless steel |
$1.54
|
10 |
|
usually ships 4-14 days |
21 |
174-8932
|
4 inch plastic roller |
$3.86
|
2 |
|
usually ships 4-14 days |
22 |
174-7104
|
Front right tension band |
$12.86
|
1 |
|
usually ships 4-14 days |
23 |
174-3539
|
Rear left tension band |
$24.12
|
1 |
|
usually ships 4-14 days |
24 |
174-3541
|
Rear right tension band |
$31.74
|
1 |
|
ships same day |
N/S |
174-8669
|
Washer M10.6 serrated tooth |
$3.48
|
2 |
|
usually ships 4-14 days |
