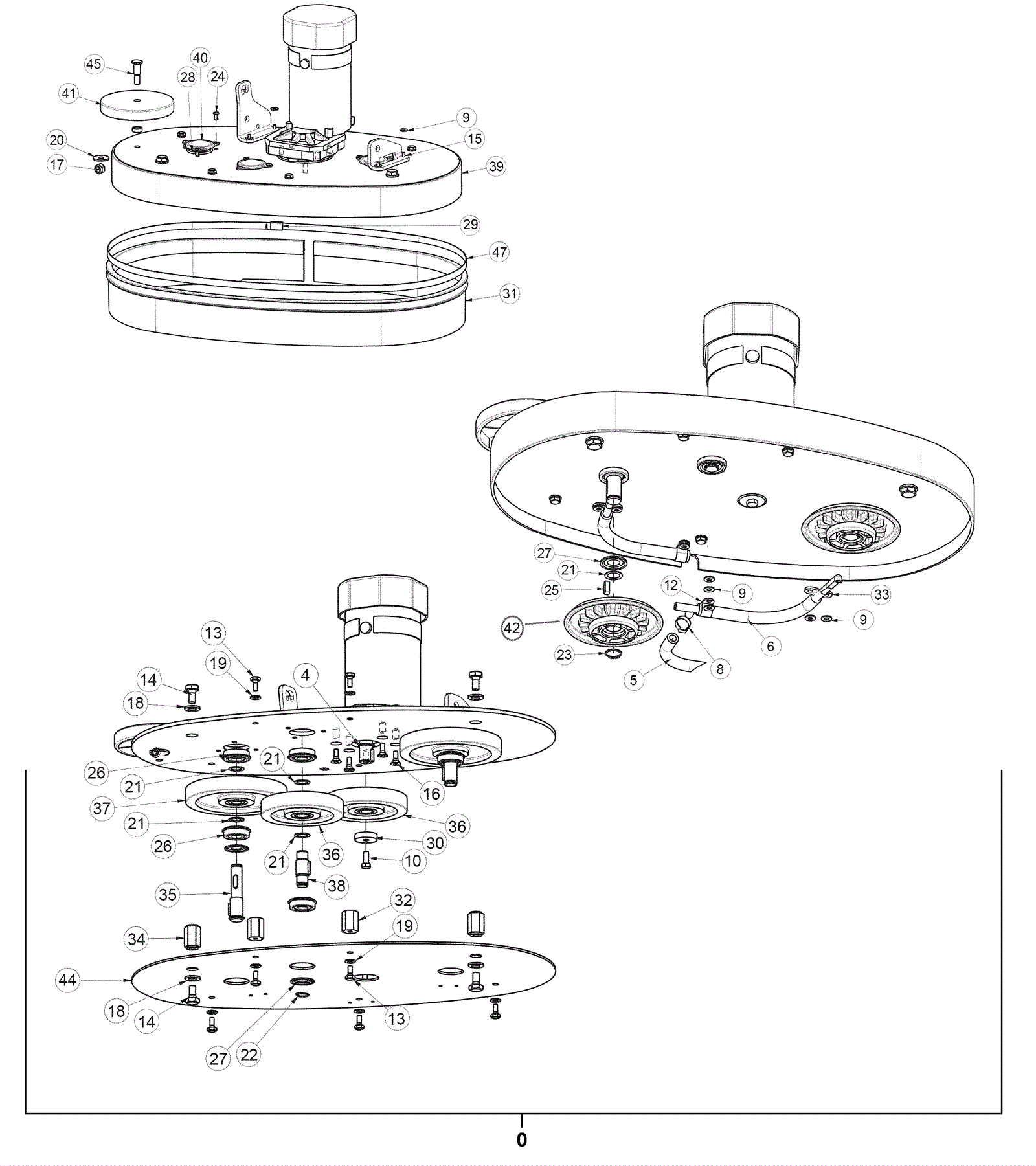

ECO 26 Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
0 174-9189 26 inch disc brush deck $3,144.82 1 (includes 4-47 and N/S parts) usually ships 12-16 days
4 174-7157 Retaining ring $1.08 1 usually ships 1-5 days
5 174-5329 Hose 3/8 x 25 $4.97 1 usually ships 12-16 days
6 374-2721 HOSE-NYLO REINF 3/8 X 8 inch $2.81 2 usually ships 1-5 days
8 997-2001 Hose clamp $2.42 1 ships same day
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 14 ships same day
10 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 1 ships same day
12 374-2985 TUBE CLAMP $2.97 2 usually ships 1-5 days
13 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 10 ships same day
14 174-5330 Bolt M12 x 20 hex head Call for price 4 usually ships 12-16 days
15 174-5333 Screw M6 x 20 flat head Call for price 4 usually ships 12-16 days
16 174-5334 Screw M8 x 20 flat head Call for price 4 usually ships 12-16 days
17 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
18 374-0693 Washer M13 $4.15 4 usually ships 1-5 days
19 999-9097 Washer M8 flat stainless steel $0.99 10 ships same day
20 274-0071 ADJUSTING WASHER $1.22 1 usually ships 1-5 days
21 274-0071 ADJUSTING WASHER $1.22 8 usually ships 1-5 days
22 274-0048 RETAINING RING $1.22 3 usually ships 1-5 days
23 374-1585 CIRCLIP $1.22 2 usually ships 1-5 days
24 374-0627 RIVET $1.22 9 usually ships 1-5 days
25 274-5497 FEATHER KEY $1.22 5 usually ships 12-16 days
26 274-5801 DEEP GROOVE BALL BEARING $20.58 6 usually ships 12-16 days
27 374-2278 RING $4.13 3 usually ships 1-5 days
28 174-5335 O ring Call for price 3 usually ships 12-16 days
29 174-8450 Tension band lock $4.20 1 usually ships 12-16 days
30 174-5345 Motor gear cap Call for price 1 usually ships 12-16 days
31 274-4042 SPLASH GUARD, 26 inch DECK $96.30 1 usually ships 12-16 days
32 174-5349 Standoff Call for price 5 usually ships 12-16 days
33 174-8314 Solution feed nozzle $2.63 2 ships same day
34 174-5388 Standoff Call for price 2 usually ships 12-16 days
35 274-3914 SHAFT $48.89 2 usually ships 12-16 days
36 274-5143 GEAR WHEEL $73.64 2 usually ships 12-16 days
37 274-6161 GEAR WHEEL $121.86 2 usually ships 12-16 days
38 274-3396 SHAFT $29.28 1 usually ships 1-5 days
39 274-7188 SIDE COVER, 26 inch DECK $197.19 1 usually ships 1-5 days
40 374-2134 COVER, BEARING $4.81 3 usually ships 1-5 days
41 274-1307 BUMPER WHEEL, 140MM, BLACK $9.99 1 usually ships 1-5 days
42 274-6006 CARRIER $64.97 2 ships same day
44 174-5375 Bottom plate Call for price 1 usually ships 12-16 days
45 274-2384 BLT-SHLD 12.4 X 22MM X M10 $11.43 1 usually ships 1-5 days
47 174-8449 Tension band $22.94 1 usually ships 12-16 days
N/S 174-5099 Spacer $3.71 1 usually ships 12-16 days
N/S 174-5402 Right hand mounting bracket Call for price 1 usually ships 12-16 days
N/S 174-5443 Left hand mounting bracket Call for price 1 usually ships 12-16 days
N/S 174-0084 3/8 tee barb $1.55 1 usually ships 1-5 days
N/S 174-8313 24v brush motor $675.49 1 usually ships 12-16 days
N/S 174-5446 Top plate Call for price 1 usually ships 12-16 days
N/S 174-5580 Brush motor spacer Call for price 1 usually ships 12-16 days
