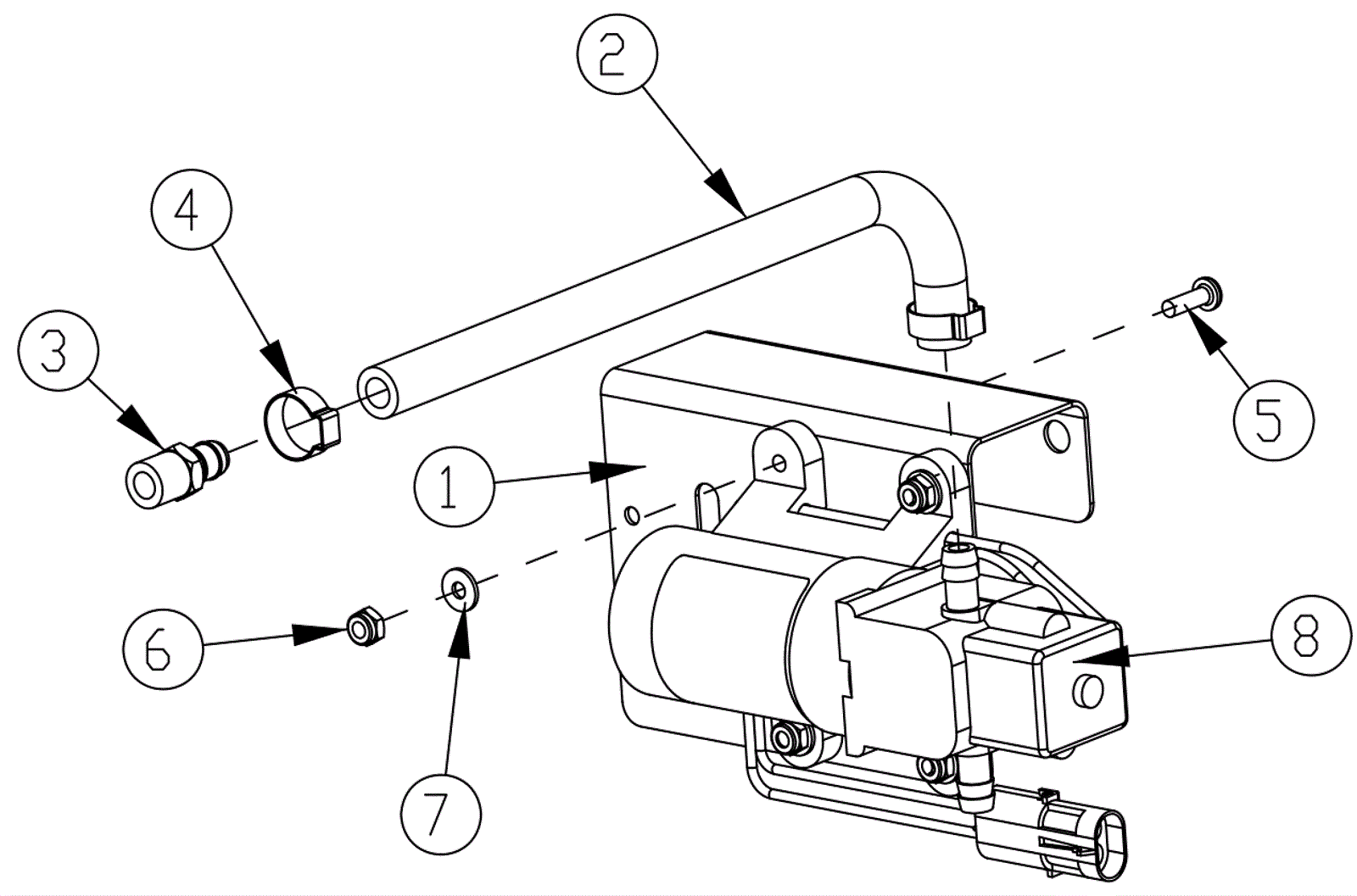

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-7193
|
Pump bracket assembly |
1 |
|
|
2 |
174-0361
|
Solution valve hose |
1 |
|
|
3 |
174-0368
|
Double barb 3/8 x 1/4 MPF |
1 |
|
|
4 |
997-2001
|
Hose clamp |
2 |
|
|
5 |
999-0726
|
Screw 10-32 x 5/8 pan head phillips zinc plated |
4 |
|
|
6 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
7 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
8 |
274-7416
|
24v pump |
1 |
|
|
