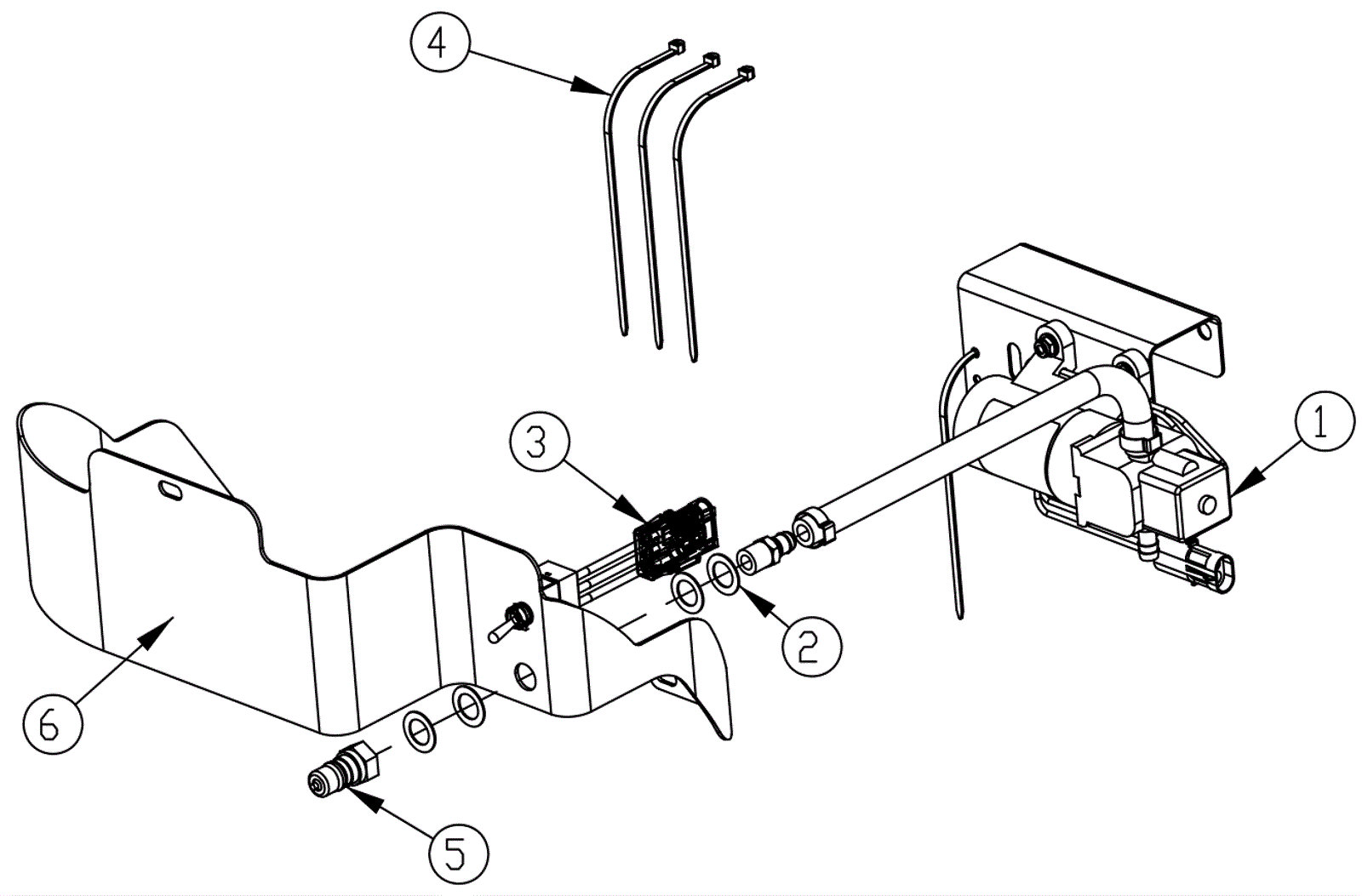

Internal Pump Assembly 2

#PartDescription ReqNotesAvailability
1 174-7191 OAW pump assembly 1
2 999-0855 Washer 9/16 SAE flat 4
3 174-7192 Toggle on/off switch assembly 1
4 997-2102 Cable tie 4
5 174-0218 Male quick coupler 1
6 174-7153 Front panel 1
N/S 374-2228 Mesh screen filter 1
N/S 174-5804 Bolt 5/16 x 3/4 shoulder 1
