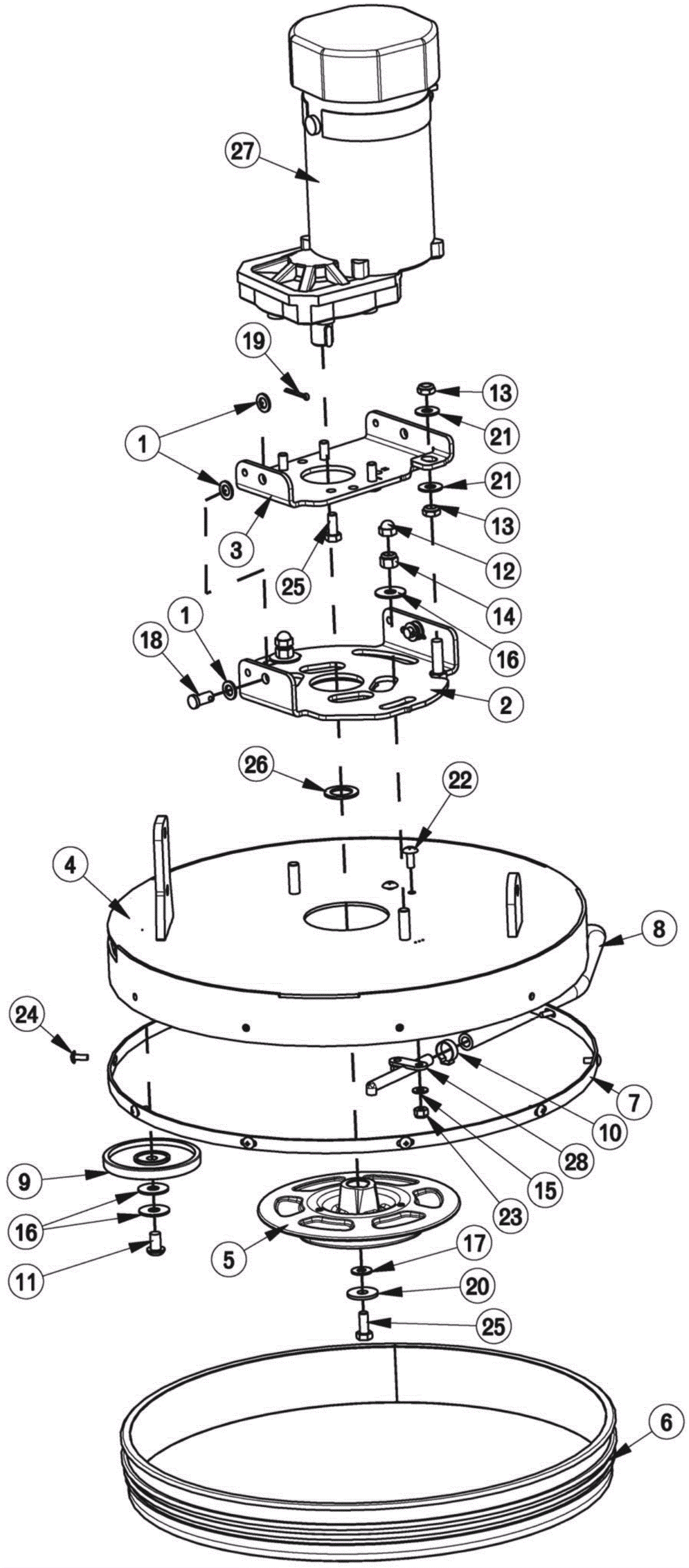

WD20 Disk Deck Assmbly - 20 inch

#PartDescriptionPriceReqNotesAvailability
1 174-5328 Special washer $1.10 6 usually ships 12-16 days
2 174-8306 Deck angle weldment $57.69 1 usually ships 12-16 days
3 174-8307 Motor mount plate $27.47 1 usually ships 12-16 days
4 174-8308 17 inch deck cover weldment $257.39 1 usually ships 1-5 days
5 174-8171 Brush drive hub assembly $58.25 1 ships same day
6a 274-8325 20 inch deck cover weldment $266.39 1 (after November 2009) usually ships 12-16 days
6b 174-8315 20 inch deck cover weldment $243.74 1 (before November 2009) usually ships 12-16 days
7 274-6772 Brush deck skirt $102.21 1 usually ships 12-16 days
8 374-2817 Nylon hose 3/8 x 23 inch $3.31 1 usually ships 12-16 days
9 174-5216 Roller wheel $7.25 1 usually ships 12-16 days
10 997-2001 Hose clamp $2.42 1 ships same day
11 999-0616 Screw 3/8-16 x 5/8 socket head alloy plain finish $0.99 1 ships same day
12 999-0234 Nut 3/8-16 acorn nickel plated $1.18 2 ships same day
13 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 2 ships same day
14 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
15 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
16 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
17 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
18 174-8312 Clevis pin 3/8 x 3/4 $1.08 2 usually ships 12-16 days
19 174-1039 Cotter pin 1/8 x 1 $1.08 2 usually ships 12-16 days
20 174-8169 Washer flat .37 x 1.12 x .10 $2.57 1 ships same day
21 999-1363 Washer 7/8 flat stainless steel $3.48 2 ships same day
22 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
23 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
24 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 10 ships same day
25 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 5 ships same day
26 999-1134 Washer 1 1/4 flat stainless steel $6.01 1 ships same day
27 174-8313 24v brush motor $675.49 1 usually ships 12-16 days
28 174-8314 Solution feed nozzle $2.63 1 ships same day
