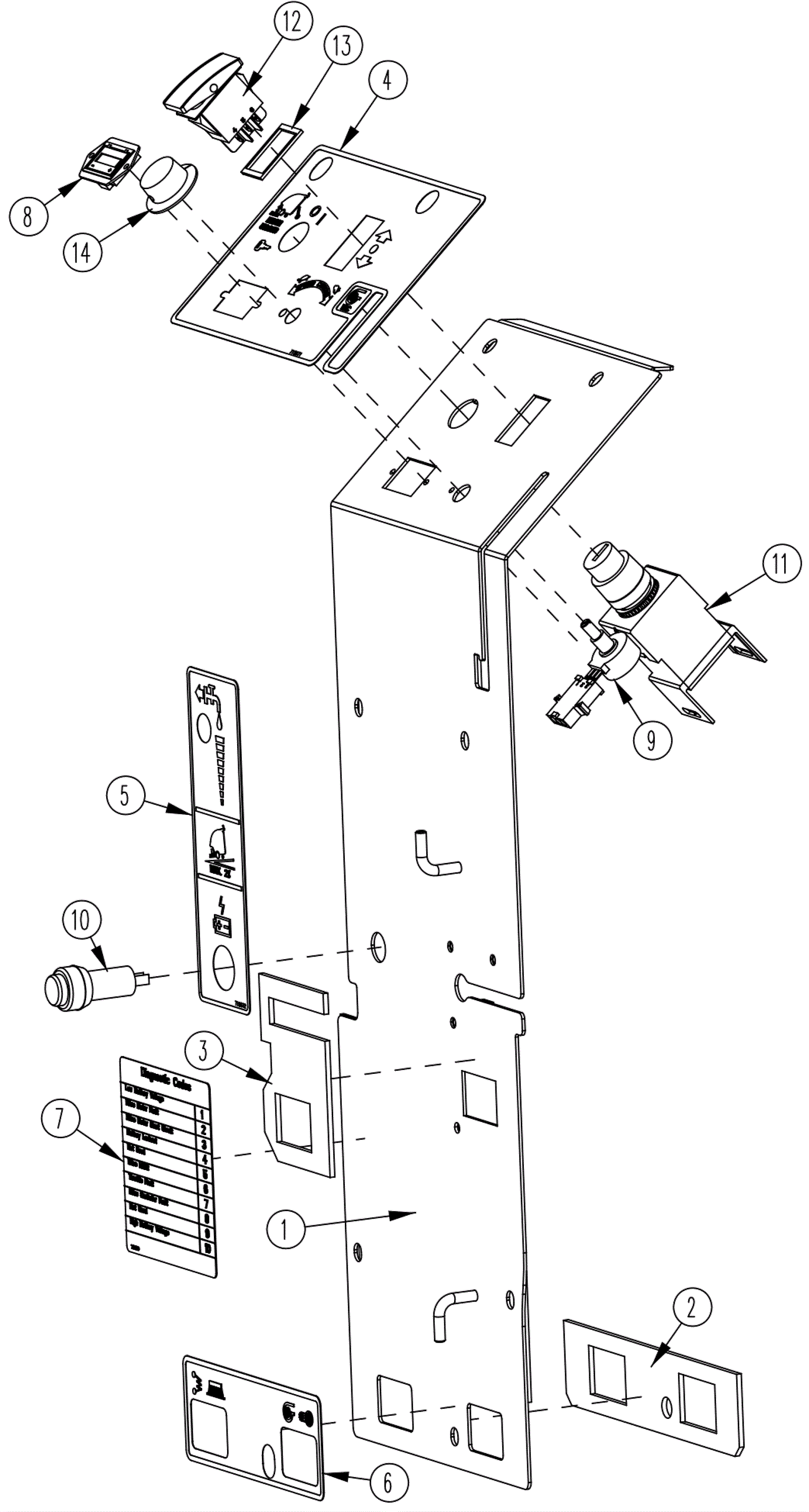

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
274-7152
|
Electrical cover weldment |
1 |
|
|
2 |
174-8294
|
Circuit breaker gasket |
1 |
|
|
3 |
174-8295
|
Charger cord plate gasket |
1 |
|
|
4 |
174-4557
|
Dashboard decal |
1 |
|
|
5 |
174-8296
|
Electrical box decal |
1 |
|
|
6 |
374-2319
|
Circuit breaker decal |
1 |
|
|
7 |
274-0306
|
Diagnostic code decal |
1 |
|
|
8 |
274-6252
|
Battery gauge |
1 |
|
|
9 |
174-6335
|
Speed control potentiometer assembly |
1 |
|
|
10 |
174-8299
|
Charge status indicator |
1 |
|
|
11a |
274-7375
|
Keyswitch assembly w/ harness |
1 |
|
|
11b |
174-8456
|
Replacement key (set of 2) |
1 |
|
|
12 |
274-4726
|
Directional switch |
1 |
|
|
13 |
374-2345
|
Directional switch gasket |
1 |
|
|
14 |
174-0259
|
Knob |
1 |
|
|
