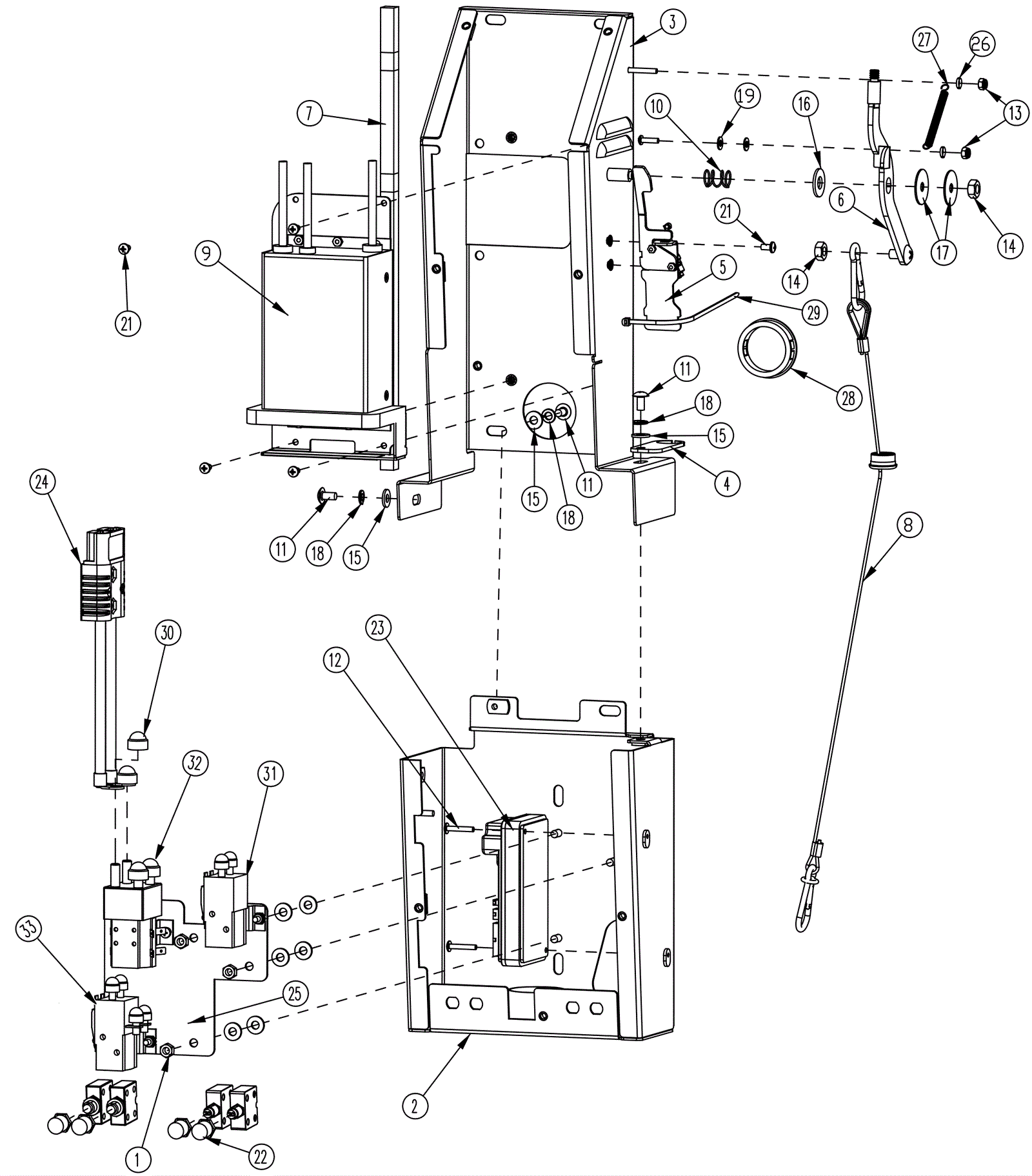

WD20 Electrical Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-9057 Nut 1/4-20 serated nylock $1.08 3 usually ships 1-5 days
2 174-8283 Bottom electrical box weldment $127.97 1 usually ships 1-5 days
3 174-8284 Upper electrical box weldment $128.09 1 usually ships 12-16 days
4 174-8285 Upper bushing mount bracket Call for price 1 usually ships 1-5 days
5 174-8287 Vac switch assembly $49.73 1 usually ships 12-16 days
6 174-8128 Lever $41.92 1 usually ships 12-16 days
7 174-8288 Foam tape 1/2 x 16 1/2 inch $2.63 1 usually ships 12-16 days
8 274-4152 Squeegee cable assembly $31.92 1 (gromment is NLA) usually ships 12-16 days
9 174-7106 Onboard battery charger assembly DO NOT ORDER Call for price 1 usually ships 12-16 days
10 174-5749 Compression spring $3.52 1 usually ships 12-16 days
11 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 3 ships same day
12 174-5933 Screw #8-32 x 1 $1.08 2 usually ships 12-16 days
13 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
14 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
15 999-0016 Washer 1/4 flat plain finish $0.99 9 ships same day
16 999-0328 Washer 7/16 USS flat $0.99 1 ships same day
17 174-2255 Washer 5/16 x 7/8 x 3/64 flat $1.08 2 usually ships 12-16 days
18 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
19 174-0532 Washer 7/32 x 3/64 nylon $1.08 2 usually ships 12-16 days
21 999-0817 Screw 10-24 x 5/8 round head zinc plated $0.99 6 ships same day
22 174-5824 Circuit breaker boot $5.95 4 usually ships 12-16 days
23 174-7084 24V I-drive motor controller $254.81 1 usually ships 12-16 days
24 174-8290 Wire assembly $65.83 1 usually ships 12-16 days
25 274-9186 Electrical panel assembly $584.25 1 ships same day
26 374-2258 Mount ring $2.63 2 usually ships 12-16 days
27 174-5235 Spring $4.03 1 usually ships 12-16 days
28 174-0255 Bushing $1.38 1 usually ships 1-5 days
29 997-2102 Cable tie $1.38 1 ships same day
30 174-3716 Safety nut cover cap Call for price 2 usually ships 12-16 days
31 174-8389 24V vacuum motor relay 1 pole 80 amp $59.67 1 usually ships 12-16 days
32 174-8373 24V main relay 2 pole 125 amp $99.90 1 usually ships 12-16 days
33 174-8375 24V brush motor relay 2 pole 80 amp $63.13 1 usually ships 12-16 days
N/S 999-0089 Washer #10 internal star lock zinc plated $0.99 6 ships same day
