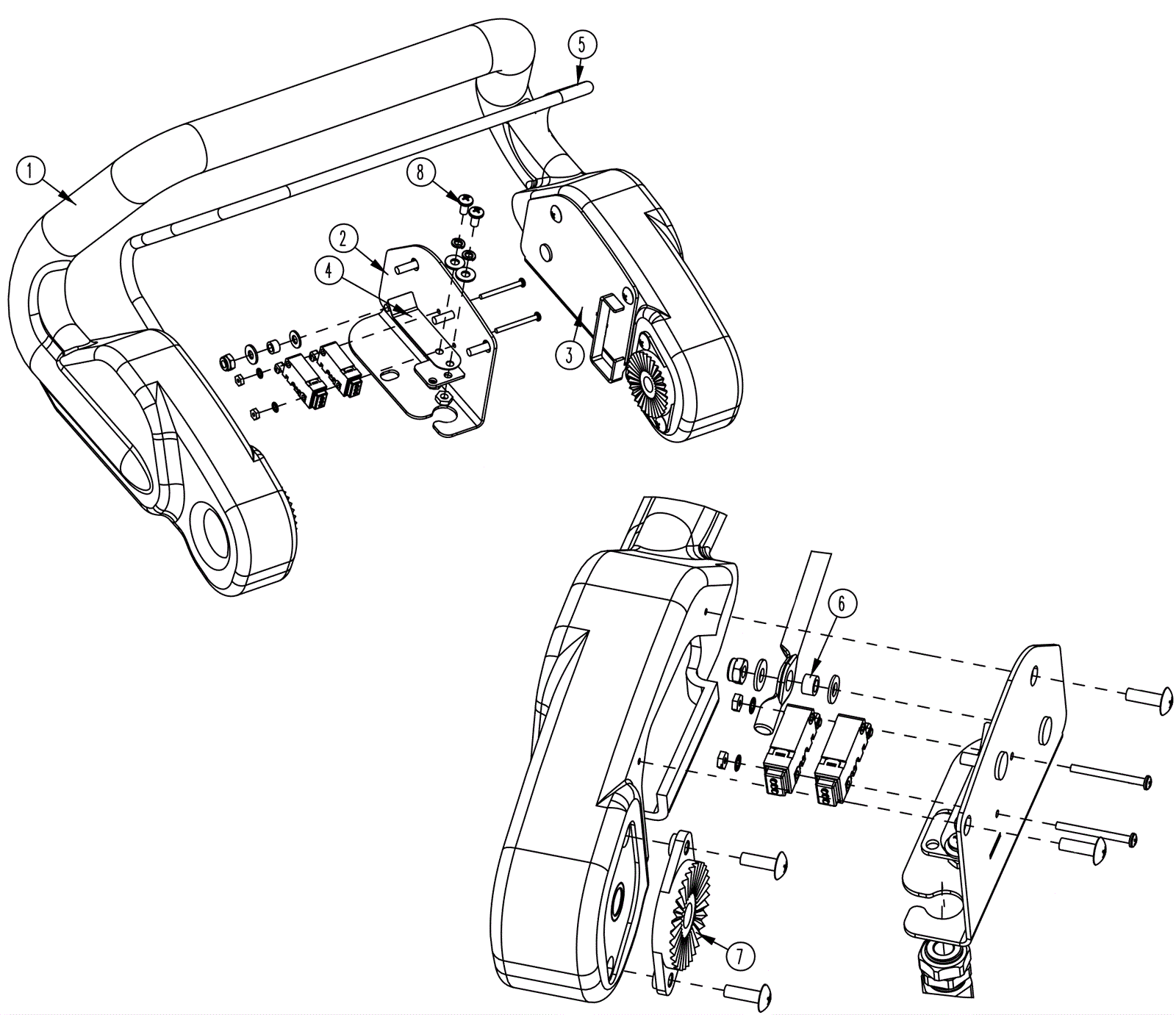

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-8272
|
Handle |
1 |
|
|
2 |
174-8273
|
Right hand bail plate weldment |
1 |
|
|
3 |
174-8274
|
Left hand bail plate weldment |
1 |
|
|
4 |
174-8275
|
Leaf spring |
2 |
|
|
5 |
174-8276
|
Bail handle |
1 |
|
|
6 |
174-8277
|
Spacer |
2 |
|
|
7 |
174-8278
|
Handle pivot jaw |
2 |
|
|
8 |
999-0321
|
Screw 10-32 x 3/8 pan head slotted zinc plated |
4 |
|
|
