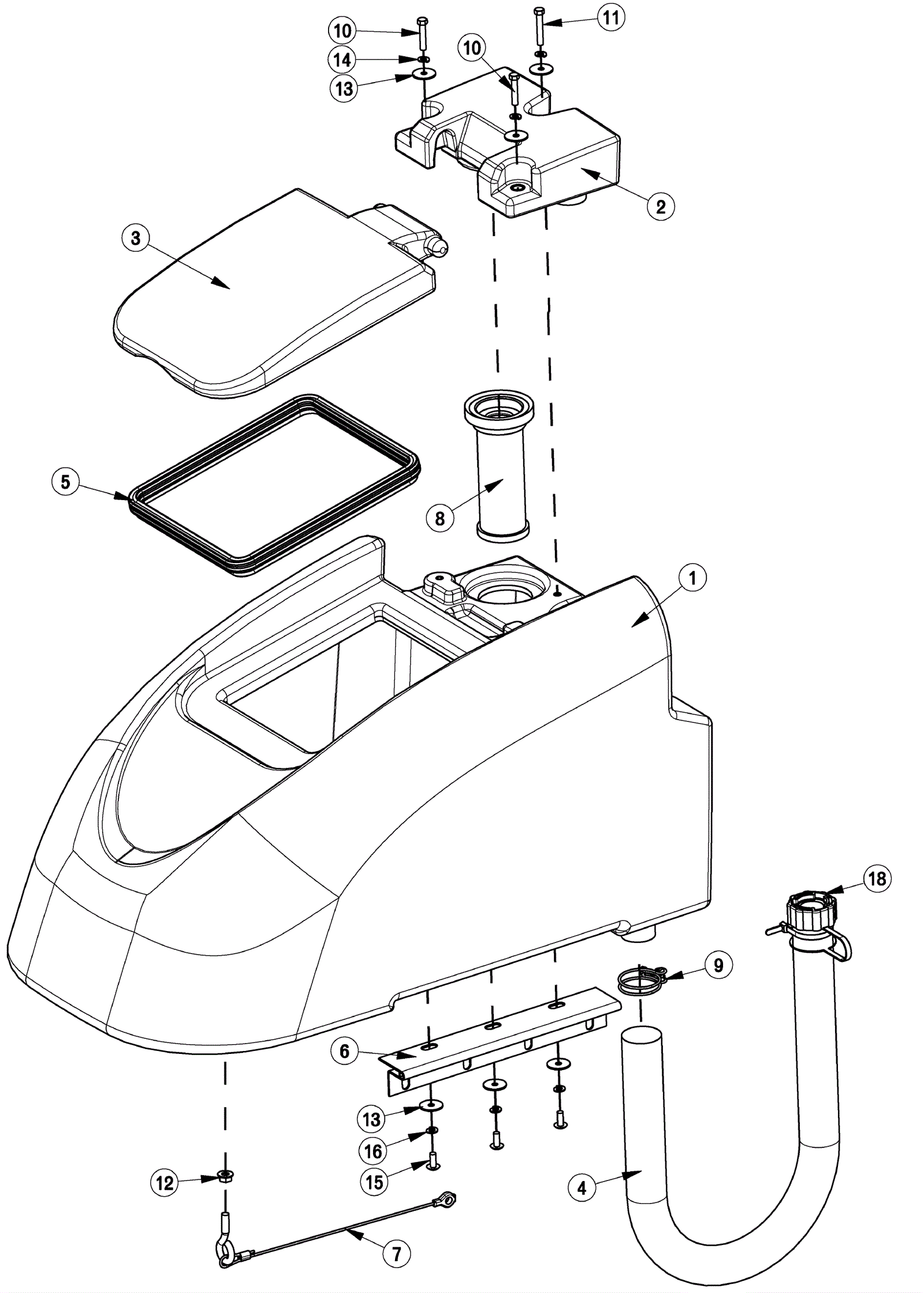

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 174-7167 Recovery tank 1
2 174-7168 Vacuum manifold 1
3 174-7169 Lid 1
4 174-8455 Drain hose assembly 1
5 174-8268 Lid gasket 1
6 174-8269 Recovery tank hinge 1
7 174-7166 Recovery tank cable assembly 1
8 174-8271 Screened float 1
9 174-3354 Hose clamp 1
10 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 2
11 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 1
12 999-0525 Nut 5/16-18 flange lock serrated zinc plated 1
13 174-0536 Washer 1/4 6
14 999-0060 Washer 1/4 split lock plain finish 3
15 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 3
16 999-0632 Washer 1/4 split lock stainless steel 3
18 174-8960 Drain hose cap 1
N/S 174-8959 O-ring 1
