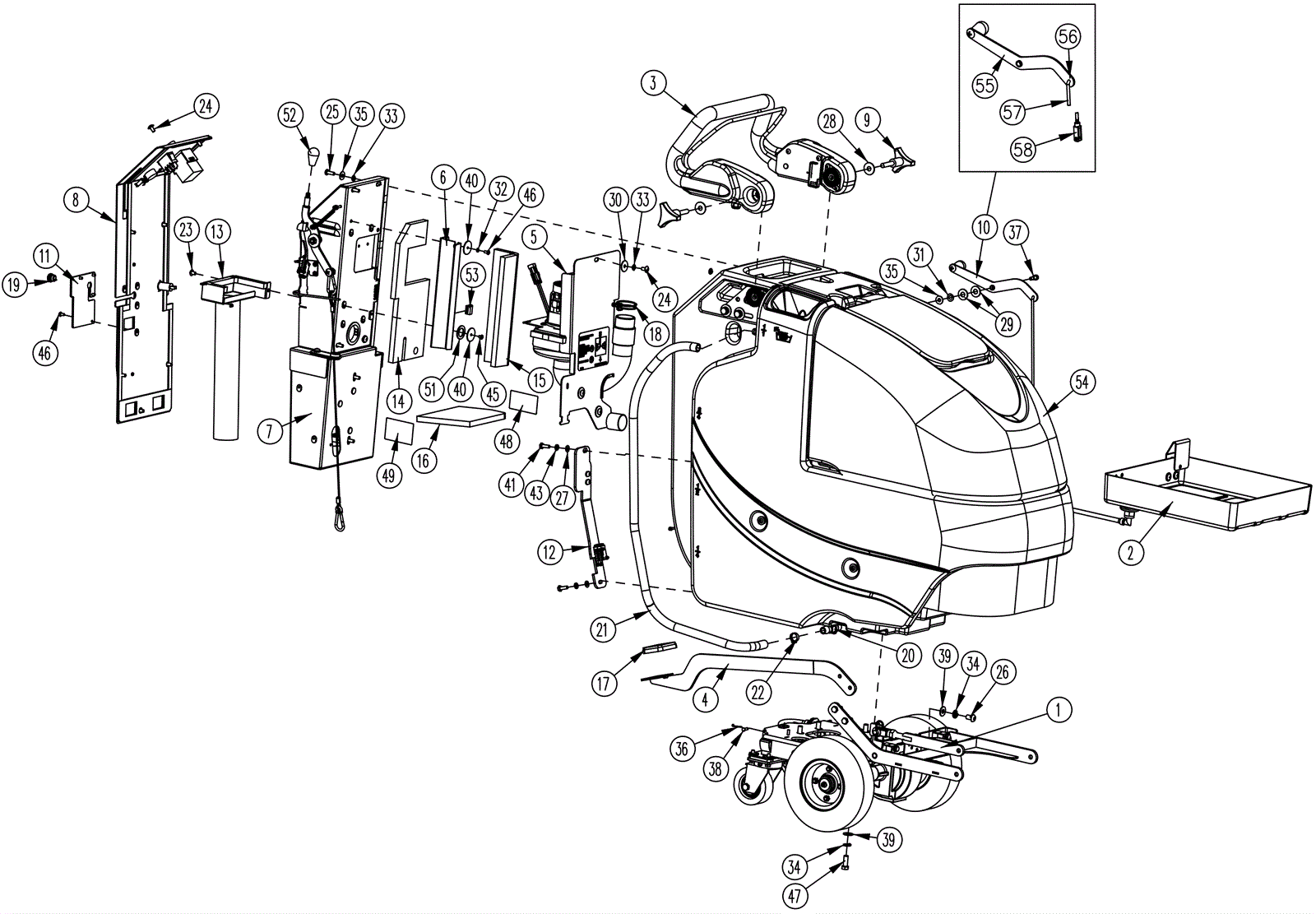

Traction Drive Base Assembly

#PartDescription ReqNotesAvailability
1 374-0116 Chassis assembly 1
2 174-8207 Battery tray assembly 1
3 274-9128 Handle assembly 1
4 174-8209 Lift pedal weldment 1
5 174-8210 Vac motor assembly 1
6 174-8211 Inside cover bracket 1
7 374-0085 TD ELEC BOX ASSY, 120V CHARGER 1
8 174-7146 Electrical box cover assembly 1
9 174-8214 Knob 3/8-16 stud 2
10 174-8215 Solution control assembly 1 (includes 55-58)
11 174-8216 Power cord mount bracket 1
12 274-6436 Lift pedal bracket assembly 1
13 174-8218 Charger inlet assembly 1
14 174-8219 Foam cover with adhesive 1
15 174-8220 1/2 inch foam cover 1
16 174-8222 1/2 inch foam cover 1
17 174-0102 Pedal pad 1
18 997-2000 Hose clamp 1
19 174-8223 Strain relief 1
20 174-8224 Fitting 1/2 barb 3/4 mpt 1
21 174-8225 Hose 1/2 ID x 42 inch clear 1
22 174-8226 3/4 inch hose clamp 2
23 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated 1
24 999-0113 Screw 1/4-20 x 1/2 truss head slotted 10
25 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated 5
26 999-0616 Screw 3/8-16 x 5/8 socket head alloy plain finish 2
27 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
28 999-0617 Washer 3/8 x 1 flat stainless steel 2
29 999-0328 Washer 7/16 USS flat 2
30 174-0536 Washer 1/4 3
31 999-0120 Washer 3/8 SAE flat 1
32 174-5259 Washer #10 helical 1
33 999-0060 Washer 1/4 split lock plain finish 9
34 999-0034 Washer 3/8 split lock plain finish 6
35 999-0024 Washer 5/16 flat stainless steel 6
36 174-3219 Cotter pin .06 x .75 1
37 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder 1
38 174-2756 Clevis pin 3/16 x 19/32 1
39 999-1363 Washer 7/8 flat stainless steel 6
40 999-0464 Washer 3/16 flat plain finish 2
41 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
43 999-0632 Washer 1/4 split lock stainless steel 2
45 999-0082 Screw 10-24 x 1/4 round head slotted zinc plated 1
46 999-0817 Screw 10-24 x 5/8 round head zinc plated 5
47 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
48 174-5775 Serial nameplate decal 1
49 174-8228 Clear laminate decal 1
51 999-1134 Washer 1 1/4 flat stainless steel 1
52 174-0387 Knob 1
53 174-1121 Cord clip 1
54 174-7150 Base assembly 1
55 174-8231 Solution control lever assembly 1
56 174-8232 Nut 3/16 inch push on washer cap 1
57 174-8233 Solution control rod 1
58 174-8234 Yoke 3/16 x 10-32 clevis 1
N/S 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
N/S 174-8251 Washer flat stainless steel 2
N/S 174-8229 Patent number label 1
