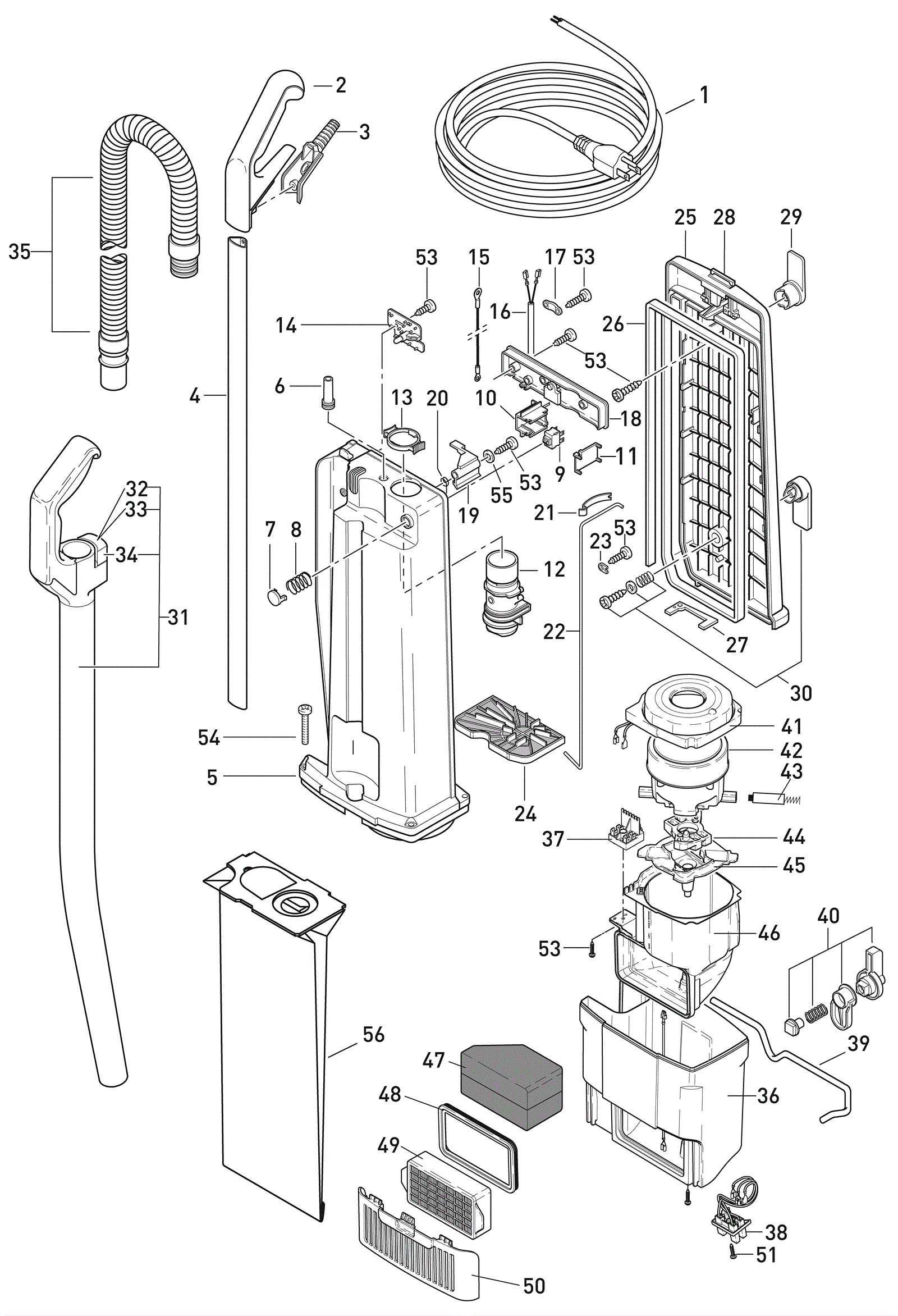

Upper Housing Assembly

#PartDescription ReqNotesAvailability
1a 273-7614 18/3 power cord (yellow) 1
1b 173-7535 Power cord 1
2 173-7536 Handle grip (black) 1
3 173-0157 Handle cover 1
4 173-5005 830mm handle tube 1
5 173-5006 Dust bag housing 1
6 173-7539 Grommet (black) 1
7 173-7540 Switch button (yellow) 1
8 173-0190 Spring 1
10 173-0043 Switch holder 1
11 173-0061 Switch cover 1
12 173-7541 Connecting tube 1
13 173-7542 Retaining ring 1
14a 173-0033 Printed circuit board 1
14b 173-7543 8 inch antistatic wire 1 (included with 14a)
15 173-7544 7 inch antistatic wire 1
16 173-0031 Interconnect cord 1
17 173-0030 Cable clamp 1
18 173-0040 Switch housing cover 1
19 173-0044 Dust bag lever 1
20 173-0045 Torsion spring 1
21 173-0046 Leaf spring 1
22 173-0047 Connecting rod 1
23 173-0048 Clamp 1
24 173-0003 Vacuum motor filter 1
25 173-7386 Rear cover (dark gray) 1
26 173-0050 Rear cover seal 1
27 173-4718 Gasket 1
28 173-5016 Latch with spring and pin 1
29 173-7547 Upper cord hook 1
30 173-7548 Lower cord hook 1
31 173-7549 Extension tube 1 (includes 32-34)
32 173-5017 Catch 1
33 173-5021 Leaf spring 1
34 173-5030 Catch holder 1
35 273-0133 Hose assembly 1
36 173-5031 Motor housing 1
37 173-5036 Terminal block 1
38 173-5039 Female contact holder 1
39 173-4724 Locking rod 1
40 173-4725 Locking catch 1
41 173-5060 Vacuum motor seal 1
42 173-5346 120V vacuum motor 1
43 173-4208 Carbon brush (pkg of 2) 1
44 173-5061 Motor support 1
45 173-5062 Motor locator 1
46 173-5063 Air duct 1
47 173-5010 Silencer (OBSOLETE) 1
48 173-5064 Seal 1
49 173-5011 Exhaust filter 1
50 173-5066 Exhaust filter cover 1
51 173-0134 Screw M3-.5 x 5mm 1
52 173-0007 Screw M3-.5 x 13mm 1
53 173-0135 Screw M3-.5 x 16mm 1
55 999-0985 Washer #4 SAE flat 1
57 273-5580 Hand tool kit 1
