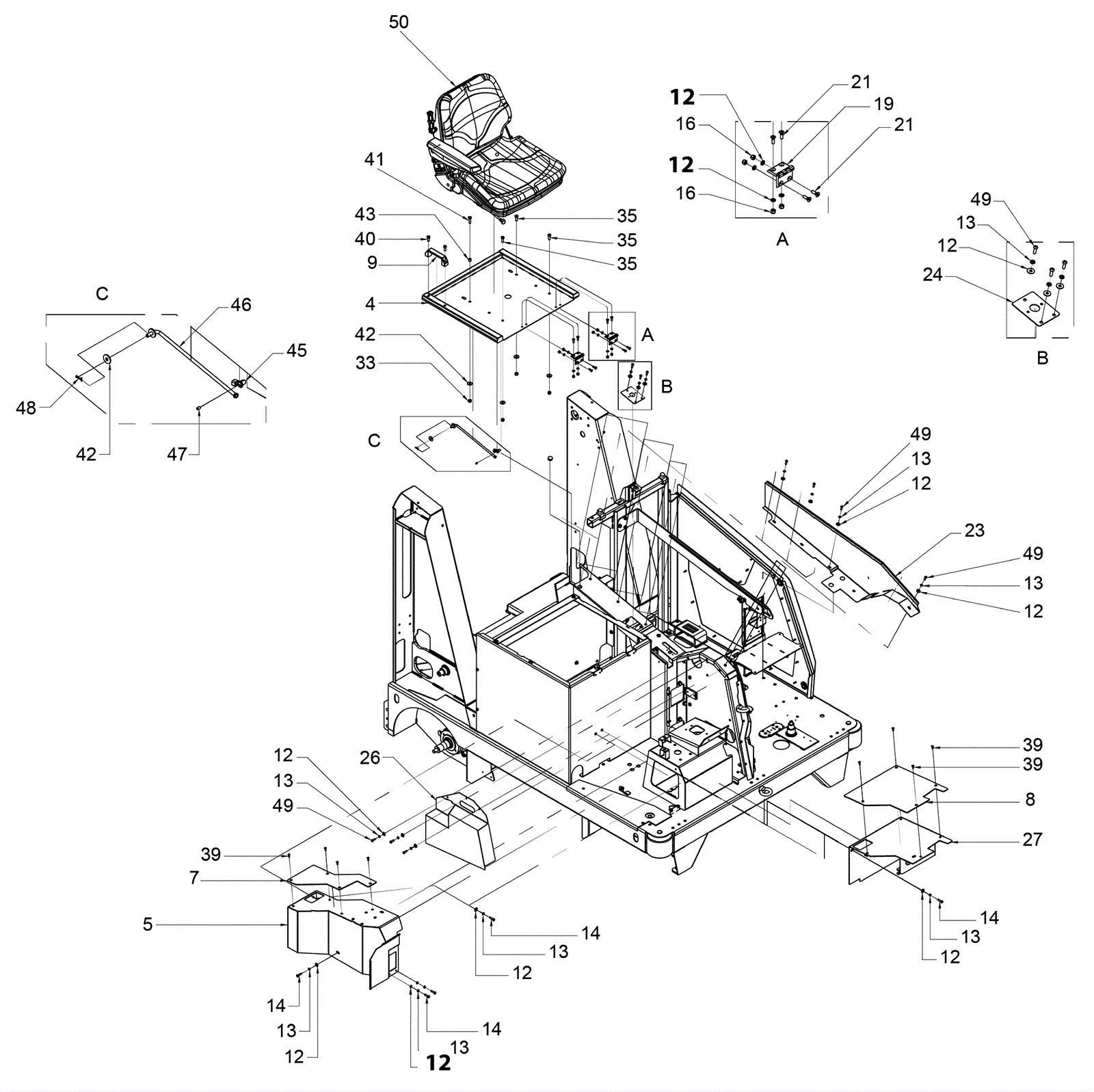

B 300 R I Seat Assembly-Model 1.480-235.2

#PartDescriptionPriceReqNotesAvailability
4 N/A Not available Call for price 1 (plate) usually ships 3-26 days
5 N/A Not available Call for price 1 (bracket) usually ships 3-26 days
7 373-3166 Right hand leg room plate Call for price 1 usually ships 7-19 days
8 373-3167 Left hand leg room plate Call for price 1 usually ships 7-19 days
9 373-3116 Handhold $40.69 1 usually ships 7-19 days
12 273-7480 Washer 6 $4.18 48 usually ships 1-5 days
13 273-5814 Spring washer $2.85 36 usually ships 7-19 days
14 183-2042 Screw, hex head $1.49 25 usually ships 1-5 days
16 373-3171 Nut M6-8 $0.99 10 usually ships 7-19 days
19 273-7926 Hinge $95.15 2 usually ships 7-19 days
21 273-0327 Screw M6 x 25 countersunk $2.31 8 usually ships 7-19 days
23 N/A Not available Call for price 1 (plate) usually ships 3-26 days
24 373-3168 Safety cut-off plate Call for price 1 usually ships 7-19 days
26 N/A Not available Call for price 1 (plate) usually ships 3-26 days
27 N/A Not available Call for price 1 (plate) usually ships 3-26 days
33 999-1651 Nut M8-1 hex stainless steel $2.83 6 ships same day
35 183-4164 Screw, hex head (Obsolete) $4.49 8 usually ships 1-5 days
39 273-7918 Screw M5 x 16mm countersink $0.99 8 usually ships 7-19 days
40 273-7847 Screw M8 x 20mm cylinder head $1.21 2 usually ships 7-19 days
41 273-9238 Screw M8 x 30 hex head $8.69 1 usually ships 7-19 days
42 273-8187 Washer $1.03 7 usually ships 7-19 days
43 373-3125 Seat stop $14.04 1 usually ships 7-19 days
45 373-3172 Locking motor cover $7.13 1 usually ships 7-19 days
46 373-3173 Stay cover $144.10 1 usually ships 7-19 days
47 373-3169 Threaded pin Call for price 1 usually ships 7-19 days
48 373-1559 Screw $1.40 1 usually ships 7-19 days
49 173-9890 Screw M6 x 20 $1.94 14 usually ships 1-5 days
50 373-3170 Seat with armrest Call for price 1 usually ships 7-19 days
