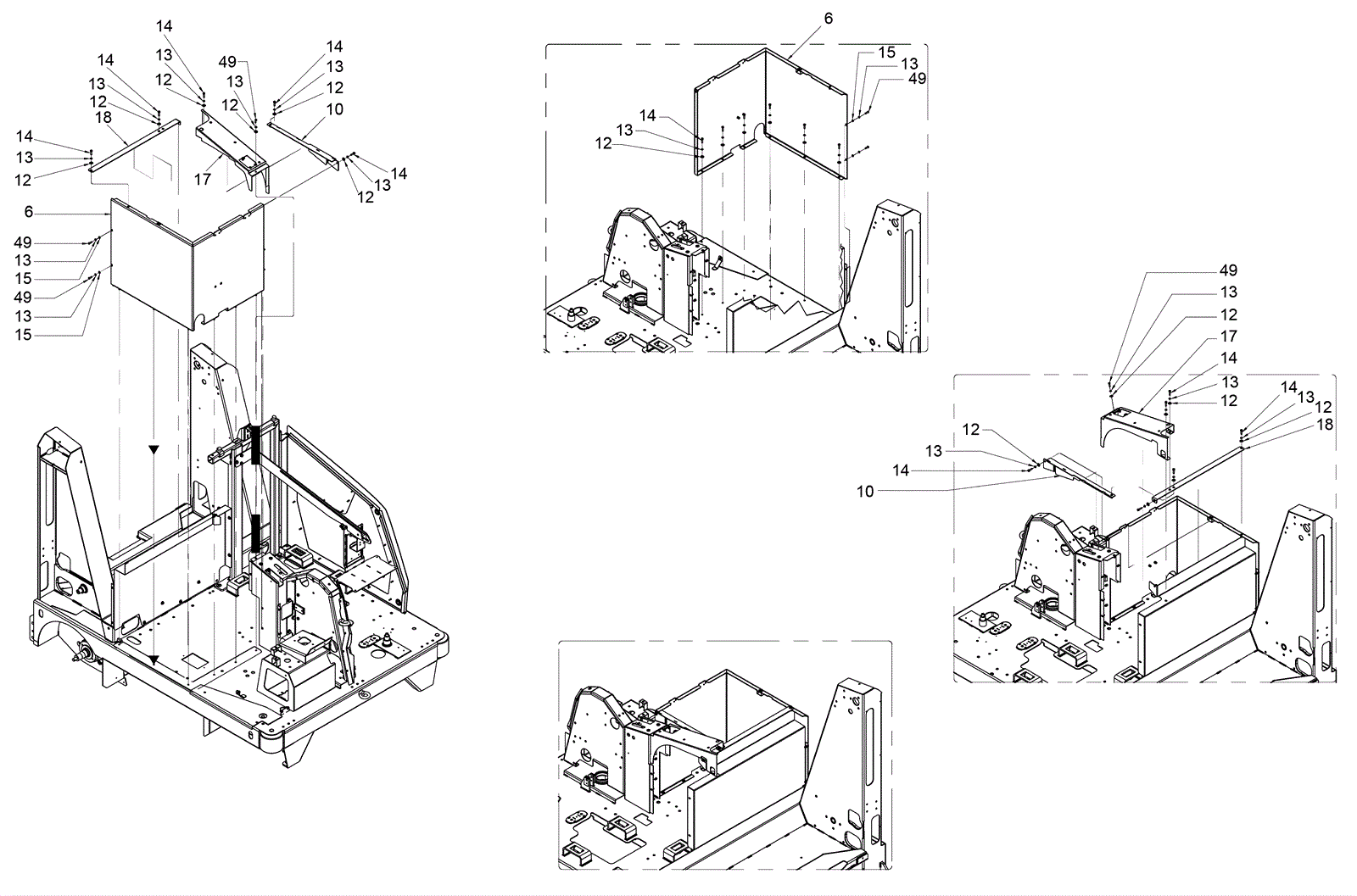

B 300 R I Battery Compartment Assembly-Model 1.480-235.2

#PartDescriptionPriceReqNotesAvailability
6 N/A Not available Call for price 1 (plate) usually ships 3-26 days
10 N/A Not available Call for price 1 (guide) usually ships 3-26 days
12 273-7480 Washer 6 $4.87 34 usually ships 1-5 days
13 273-5814 Spring washer $3.31 36 usually ships 14-22 days
14 183-2042 Screw, hex head $1.76 25 usually ships 1-5 days
15 273-7480 Washer 6 $4.87 14 usually ships 1-5 days
17 N/A Not available Call for price 1 (bracket) usually ships 3-26 days
18 373-3165 Seat plate Call for price 1 usually ships 14-22 days
49 173-9890 Screw M6 x 20 $2.26 14 usually ships 1-5 days
