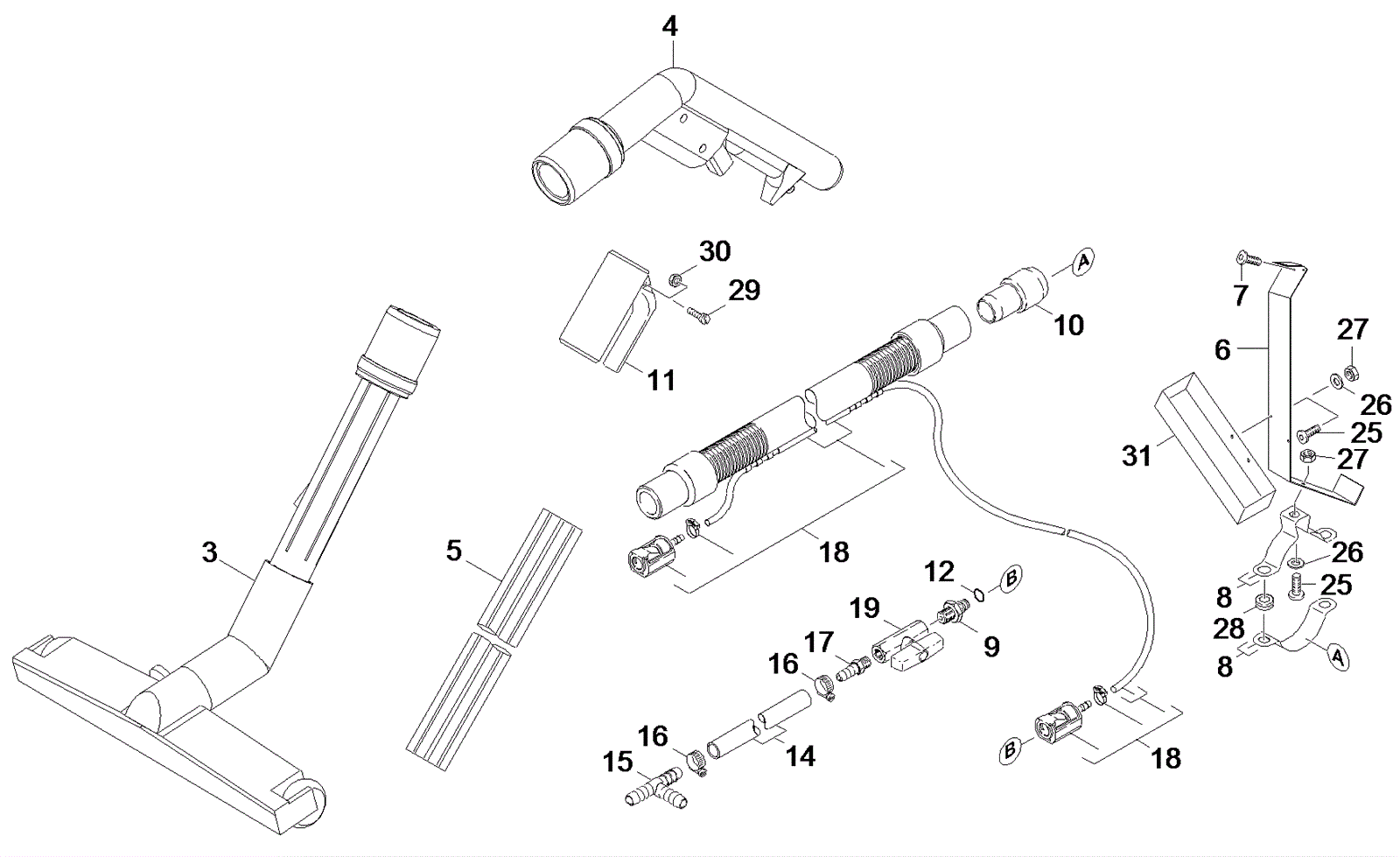

B 250 R Vacuum Spray Assembly-Model 1.480-231.2

#PartDescriptionPriceReqNotesAvailability
3 373-2032 Floor tool $461.12 1 usually ships 7-19 days
4 173-5907 Handle assembly $172.70 1 usually ships 7-19 days
5 373-2033 Suction tube $44.00 1 usually ships 7-19 days
6 373-2034 Holder $161.57 1 usually ships 7-19 days
7 183-0075 Screw 5-16 x 10.9mm $0.99 3 ships same day
8 373-2035 Clamp $44.69 1 usually ships 7-19 days
9 373-2031 Nipple Call for price 1 usually ships 7-19 days
10 273-4723 Connecting sleeve $37.95 1 usually ships 7-19 days
11 373-2036 Hook $30.47 1 usually ships 7-19 days
12 173-5859 O-ring seal $1.94 1 ships same day
14 273-4610 Hose $25.74 3 usually ships 7-19 days
15 373-1844 T-hose nozzle $28.11 1 usually ships 7-19 days
16 273-4732 Hose clip $7.15 4 usually ships 7-19 days
17 373-1839 Hose nozzle Call for price 1 usually ships 7-19 days
18 173-5850 8 foot suction hose $108.37 1 usually ships 7-19 days
19 373-1838 Ball valve Call for price 1 usually ships 7-19 days
25 173-6286 Screw M6 x 12mm $2.09 2 usually ships 1-5 days
26 173-6297 Washer $1.94 2 usually ships 1-5 days
27 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
28 373-1366 Rubber bushing $2.64 2 usually ships 7-19 days
29 N/A Not available Call for price 1 (screw) usually ships 3-26 days
30 373-1502 Nut $2.84 1 usually ships 7-19 days
31 373-2037 Tub $205.22 1 usually ships 7-19 days
