B 250 R

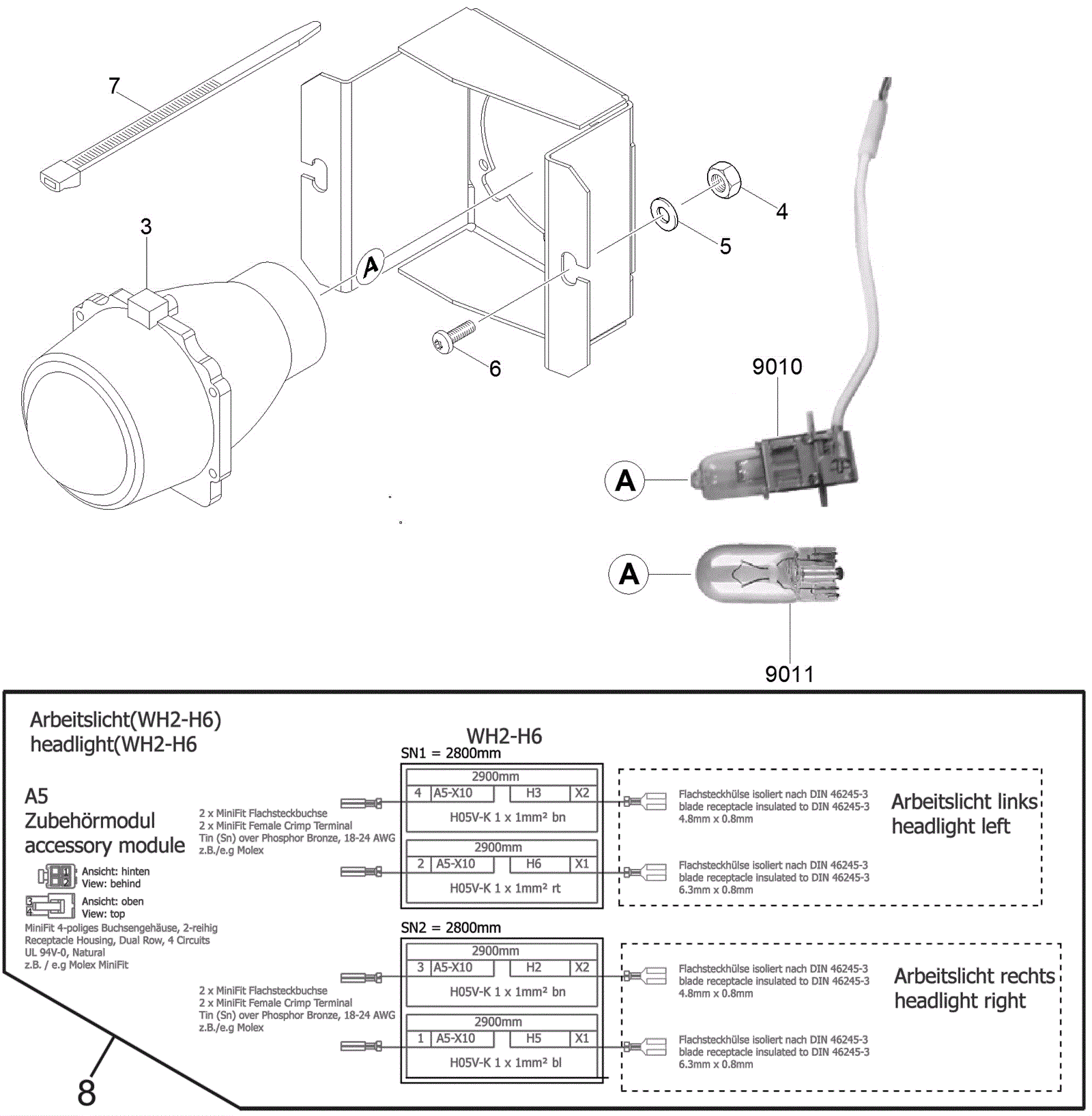

Headlight Assembly (optional)-Model 1.480-231.2
| # | Part | Description | Price | Req | Notes | Availability |
|---|
3 |
373-2015
|
Headlight |
$266.53
|
2 |
|
usually ships 11-15 days |
4 |
183-0262
|
Hex nut |
$1.54
|
4 |
|
usually ships 1-5 days |
5 |
173-6297
|
Washer |
$2.26
|
4 |
|
usually ships 1-5 days |
6 |
183-0281
|
Screw |
$2.63
|
8 |
|
usually ships 14-19 days |
7 |
273-4548
|
Cable tie |
$2.26
|
7 |
|
usually ships 11-15 days |
8 |
373-2014
|
Cable harness |
Call for price
|
1 |
|
usually ships 11-15 days |
9010 |
373-2016
|
24V 70W light bulb |
$28.07
|
1 |
|
usually ships 11-15 days |
9011 |
373-2017
|
24V 3W light bulb |
$5.50
|
1 |
|
usually ships 11-15 days |
