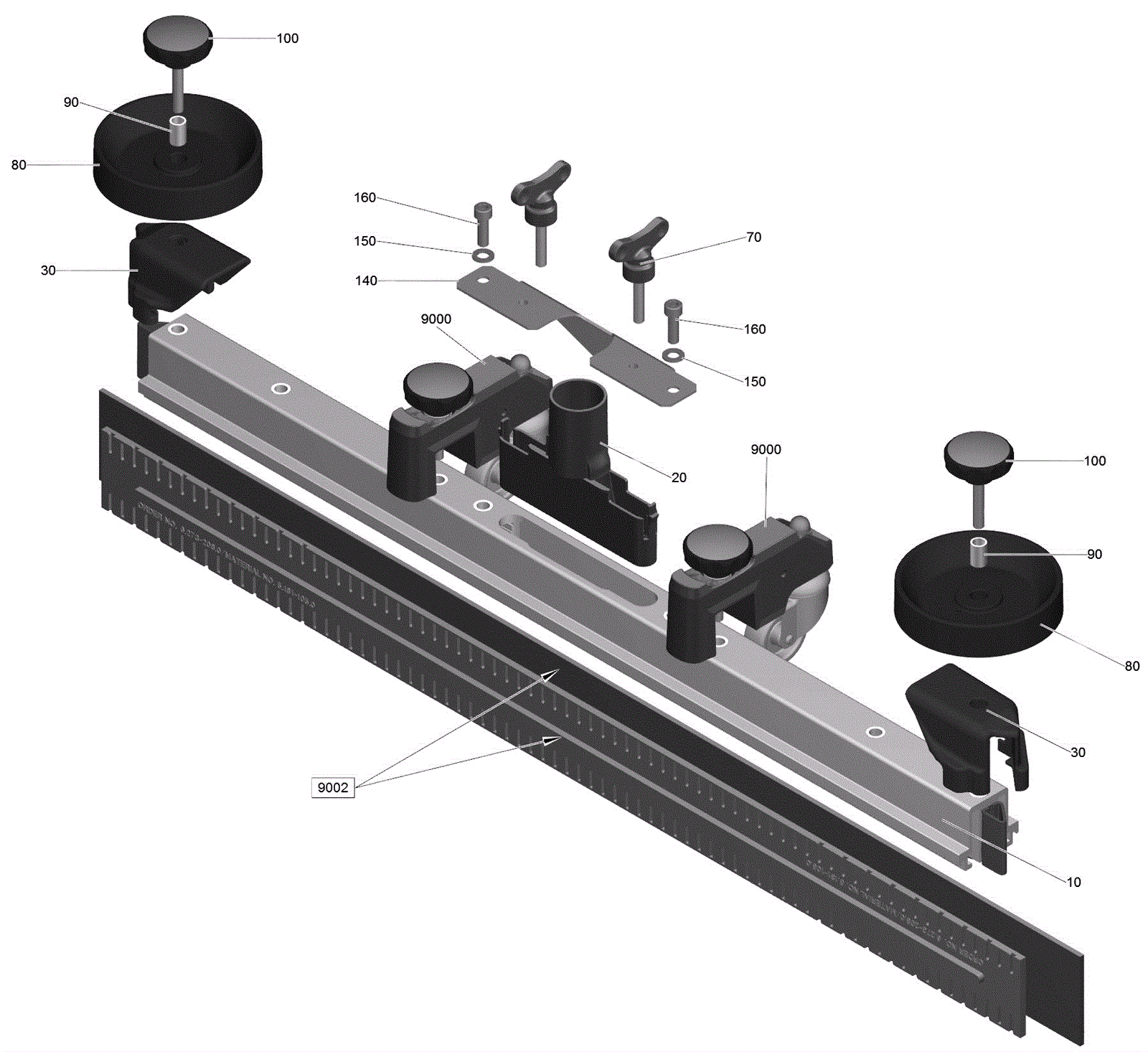

| # | Part | Description | Price | Req | Notes | Availability |
|---|
10a |
N/A
|
Not available |
Call for price
|
1 |
(suction bar pre-assembled straight 1420mm) |
usually ships 3-26 days |
10b |
N/A
|
Not available |
Call for price
|
1 |
(suction bar pre-assembled straight 1180mm) |
usually ships 3-26 days |
20 |
273-3479
|
Suction nipple |
$38.49
|
1 |
|
usually ships 14-22 days |
30a |
273-3475
|
Left and right end pieces |
$93.58
|
1 |
(set) |
usually ships 14-22 days |
30b |
373-1742
|
Left hand end piece |
$15.30
|
1 |
(left) |
usually ships 14-22 days |
30c |
373-1743
|
Right hand end piece |
$15.30
|
1 |
(right) |
usually ships 14-22 days |
70 |
N/A
|
Not available |
Call for price
|
2 |
(wing screw) |
usually ships 3-26 days |
80 |
273-3481
|
Guide wheel |
$31.55
|
2 |
|
ships same day |
90 |
273-5924
|
Sleeve suction bar |
$9.77
|
2 |
|
usually ships 14-22 days |
100 |
273-7072
|
Star knob |
$24.84
|
2 |
|
usually ships 14-22 days |
140 |
273-3478
|
Suction bar support plate |
$84.16
|
1 |
|
usually ships 14-22 days |
150 |
999-0150
|
Washer #8 medium split lock |
$0.99
|
2 |
|
ships same day |
160 |
273-3477
|
Screw |
$5.50
|
2 |
|
usually ships 14-22 days |
9000a |
373-1738
|
Support |
$115.35
|
2 |
(version 2) |
ships same day |
9000b |
273-3485
|
Squeegee roller assembly |
$284.83
|
2 |
(version 1) |
usually ships 14-22 days |
9002a |
373-1988
|
1420mm Linatex rubber lip set |
$486.10
|
1 |
(tearproof) (1420mm) |
usually ships 14-22 days |
9002b |
373-1990
|
1180mm Linatex squeegee blade set |
$324.85
|
1 |
(1180mm) (tearproof) |
usually ships 14-22 days |
9002c |
373-1890
|
1400mm rear squeegee blade |
$1,506.56
|
1 |
(1420mm) |
usually ships 14-22 days |
9002d |
273-7800
|
Squeegee blade set |
$362.52
|
1 |
(1180mm) |
usually ships 14-22 days |
9002e |
373-1891
|
1400mm squeegee blade set |
$376.64
|
1 |
(1420mm) |
usually ships 14-22 days |
9002f |
373-1991
|
1180mm squeegee blades |
$673.24
|
1 |
(1180mm) |
usually ships 14-22 days |
9002g |
373-1989
|
1420mm squeegee blades |
$660.30
|
1 |
(1420mm) |
usually ships 14-22 days |
9002h |
373-1892
|
1160mm squeegee blade set |
$367.22
|
1 |
(1180mm) |
usually ships 14-22 days |
N/S |
373-1987
|
Deflector roll stack formation |
Call for price
|
1 |
|
usually ships 14-22 days |
