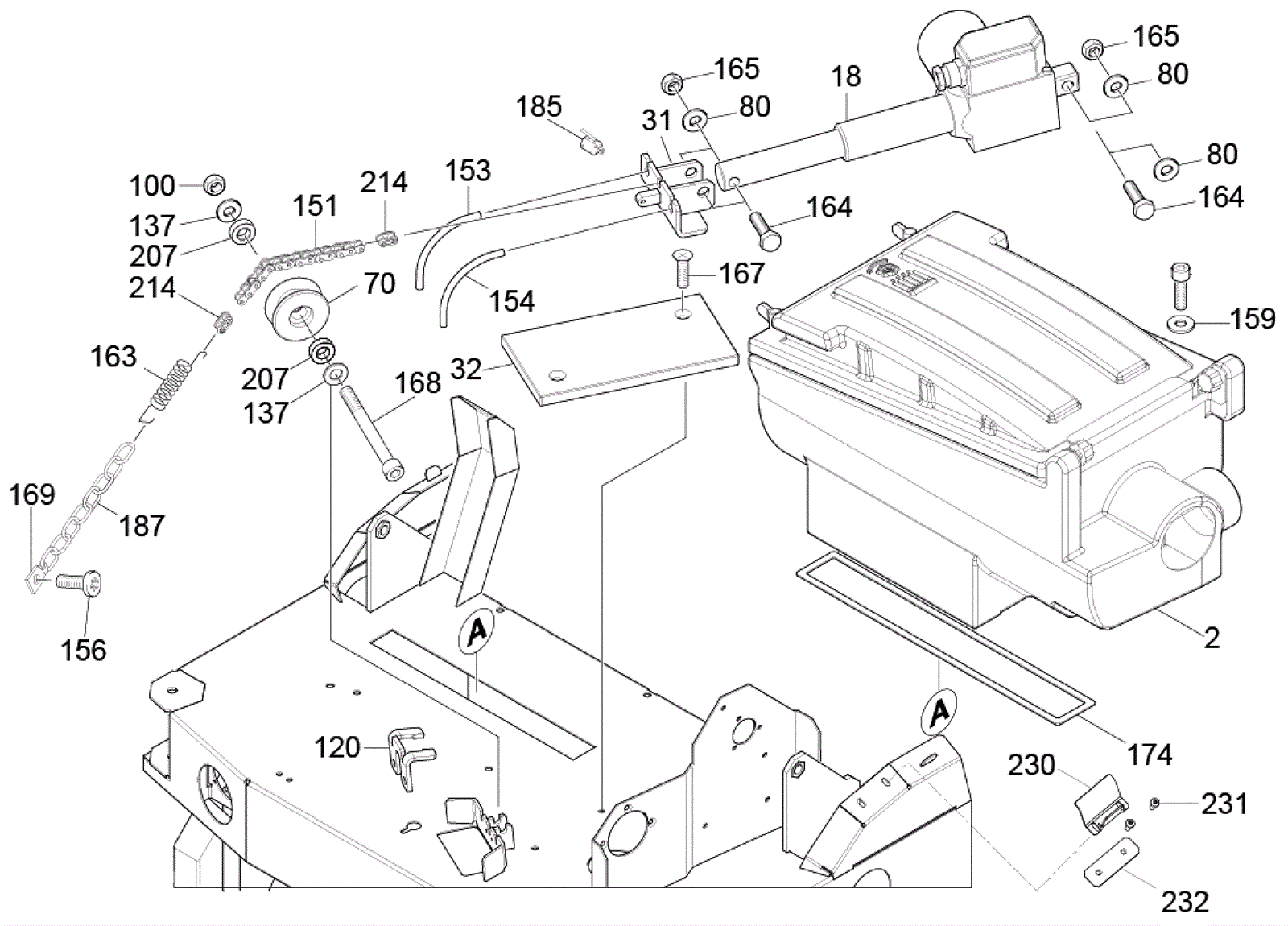

B 250 R Sweep Unit Assemby-Filter Box-Model 1.480-231.2

#PartDescriptionPriceReqNotesAvailability
2 N/A Not available Call for price 1 (filter box complete) usually ships 3-26 days
18 373-1943 24V hoisting motor $663.30 1 usually ships 7-19 days
31 373-1939 Cable cylinder coupler Call for price 1 usually ships 7-19 days
32 373-1940 Sliding plate Call for price 1 usually ships 7-19 days
80 273-7045 Washer $3.45 12 usually ships 7-19 days
100 273-7139 Nut M8-8 hex $1.94 3 usually ships 1-5 days
120 373-1944 Roller retainer plate $38.80 1 usually ships 7-19 days
137 999-9097 Washer M8 flat stainless steel $0.99 7 ships same day
151 373-1945 Roller chain $33.03 1 usually ships 7-19 days
153 373-1946 Right hand bowden wire set $253.56 1 usually ships 7-19 days
154 373-1947 Left hand bowden wire set $260.63 1 usually ships 7-19 days
156 173-2935 Screw M4-.7 x 12mm $4.54 4 usually ships 1-5 days
159 173-6204 Washer 8M $1.28 8 usually ships 7-19 days
163 373-1948 Extension spring $64.90 1 usually ships 7-19 days
164 273-4719 Screw M10 x 50mm hex head $6.60 2 usually ships 7-19 days
165 999-6697 Nut M10-1.5 hex stainless steel $1.01 4 ships same day
167 273-7853 Screw M6 X 30 countersink $4.42 2 usually ships 7-19 days
168 N/A Not available Call for price 1 (screw) usually ships 3-26 days
169 273-4595 Bracket plate $20.13 1 usually ships 7-19 days
174 373-1949 Seal filter box $11.21 1 usually ships 7-19 days
185 373-1950 Micro switch $32.21 2 usually ships 7-19 days
187 273-4594 Chain zinc plated (OBSOLETE) Call for price 0.2m (to order as cut goods) usually ships 7-19 days
207 183-4094 Ball bearing $21.32 2 usually ships 1-5 days
214 373-1874 Chain $17.49 2 usually ships 7-19 days
230 373-1941 Guide plate Call for price 2 usually ships 7-19 days
231 183-0236 Screw $0.62 4 usually ships 8-21 days
232 373-1942 Retaining plate Call for price 2 usually ships 7-19 days
N/S 373-1419 Screw M6 x 16mm $1.69 4 usually ships 7-19 days
