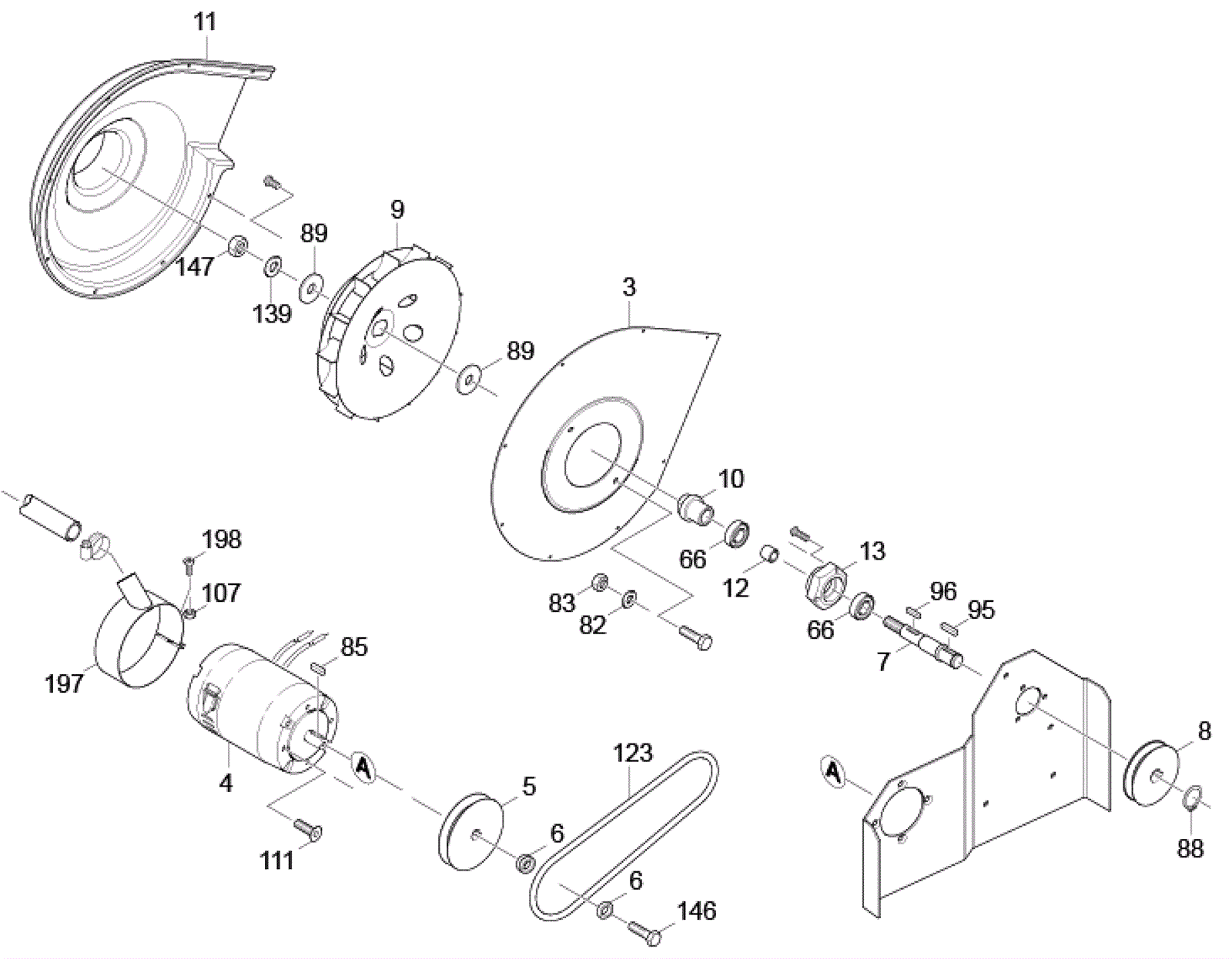

B 250 R Sweep Unit Assembly-Motor-Model 1.480-231.2

#PartDescriptionPriceReqNotesAvailability
3 373-1920 Sheet metal component Call for price 1 usually ships 7-19 days
4 373-1922 Direct current motor $327.80 2 usually ships 7-19 days
5 273-8310 Belt pulley $79.75 1 usually ships 7-19 days
6 273-9261 Bushing $6.60 3 usually ships 7-19 days
7 373-1923 Shaft $67.22 1 usually ships 7-19 days
8 373-1921 Pulley belt Call for price 1 usually ships 7-19 days
9 273-8316 Blower wheel $58.85 1 usually ships 7-19 days
10 273-8314 Bushing $44.33 1 usually ships 7-19 days
11 273-8319 Housing $184.80 1 usually ships 7-19 days
12 273-8239 Bushing $14.52 1 usually ships 7-19 days
13 373-1924 Flange cast $72.60 5 usually ships 7-19 days
66 273-7160 Ball bearing $39.82 12 usually ships 1-5 days
82 173-6297 Washer $1.94 4 usually ships 1-5 days
83 273-6081 Nut M6-4 hex $1.87 4 usually ships 7-19 days
85 273-9262 Parallel key $7.21 2 usually ships 7-19 days
88 273-8312 Locking ring $4.07 7 usually ships 7-19 days
89 273-8315 Spacer $22.00 2 usually ships 7-19 days
95 273-5818 Parallel key $2.11 2 usually ships 7-19 days
96 273-8184 Parallel key $3.45 2 usually ships 7-19 days
107 183-0262 Hex nut $1.35 3 usually ships 1-5 days
111 373-1466 Screw M6 x 16mm $5.56 4 usually ships 7-19 days
123 373-1925 695mm round belt $134.20 1 usually ships 7-19 days
139 173-6333 Washer $2.30 2 usually ships 1-5 days
146 273-8209 Screw M6 x 20 hex head $2.78 2 usually ships 7-19 days
147 999-0503 Nut M12-1.75 hex stainless steel $1.91 1 ships same day
197 373-1926 Ring $123.20 2 usually ships 7-19 days
198 173-9890 Screw M6 x 20 $1.94 2 usually ships 1-5 days
N/S 273-8317 Washer $3.33 5 usually ships 7-19 days
