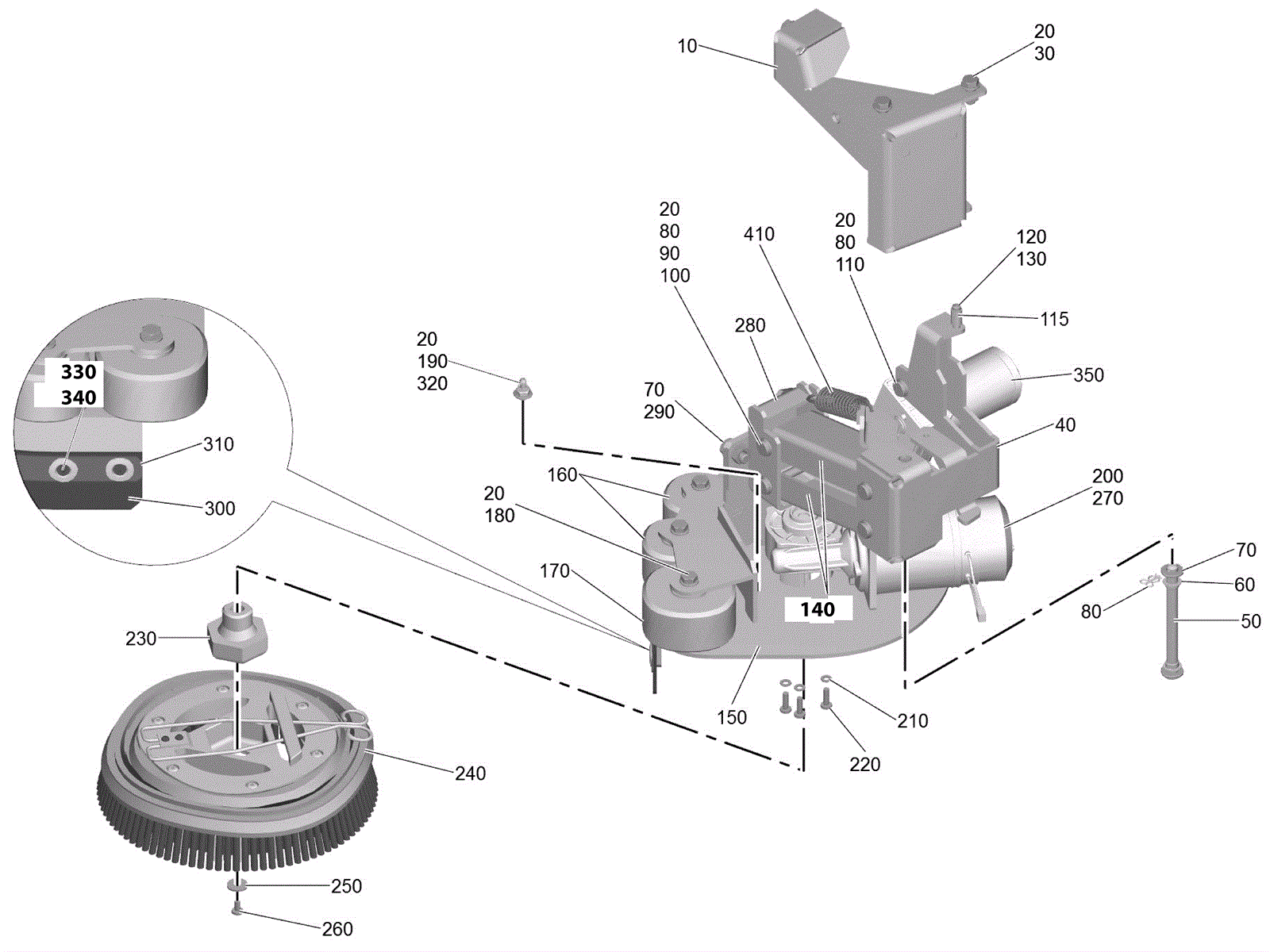

B 250 R Side Group Scrubbing Deck Assembly-Model 1.480-231.2

#PartDescriptionPriceReqNotesAvailability
10 373-1850 Fixing frame Call for price 1 usually ships 7-19 days
20 273-6016 Washer $1.94 18 usually ships 1-5 days
30 273-9272 Screw M10 x 25-8.8 hex head $6.44 3 usually ships 7-19 days
40 373-1851 Welded swivel plate Call for price 1 usually ships 7-19 days
50 373-1852 Bolt Call for price 1 usually ships 7-19 days
60 373-1867 Plain bearing $5.94 2 usually ships 7-19 days
70 173-6333 Washer $2.30 4 usually ships 1-5 days
80 273-4446 Double spring clip $28.05 7 usually ships 7-19 days
90 373-1853 Plain bearing with collar Call for price 8 usually ships 7-19 days
100 373-1868 Bolt B 10x85 -St-A2E ISO 2341 $6.55 4 usually ships 7-19 days
110 273-9531 Bolt $9.57 2 usually ships 7-19 days
115 273-5924 Sleeve suction bar $9.13 1 ships same day
120 273-8124 Washer $0.99 1 usually ships 7-19 days
130 999-6690 Screw M5-.8 x 12mm hex head stainless steel $0.99 1 usually ships 11-24 days
140 373-1854 Lever Call for price 2 usually ships 7-19 days
150 373-1855 Base plate Call for price 1 usually ships 7-19 days
160 373-1856 Deflector roll Call for price 2 usually ships 7-19 days
170 373-1857 Deflector roll Call for price 1 usually ships 7-19 days
180 999-1321 Screw M10-1.5 x 70mm hex head stainless steel $5.57 3 usually ships 1-5 days
190 373-1869 Nipple $12.21 1 usually ships 7-19 days
200 373-1858 Gear mounting Call for price 1 usually ships 7-19 days
210 999-1261 Washer M6 flat stainless steel $0.99 6 ships same day
220 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel $2.48 6 ships same day
230 373-1859 Brush retainer Call for price 1 usually ships 7-19 days
240 373-1860 Brush complete Call for price 1 usually ships 7-19 days
250 173-9867 Washer $3.15 1 usually ships 7-19 days
260 273-9061 Screw M6 x 12-A2/70-ISO7045 $31.13 1 usually ships 7-19 days
270 273-5818 Parallel key $2.11 1 usually ships 7-19 days
280 373-1861 Retainer base plate Call for price 1 usually ships 7-19 days
290 999-1223 Screw M12-1.75 x 25mm hex head stainless steel $5.17 2 ships same day
300 373-1862 Side scrubber deck scraping lip Call for price 1 usually ships 7-19 days
310 373-1863 Scraper lip retaining plate Call for price 1 usually ships 7-19 days
320 273-4735 Hose clip $1.76 1 usually ships 7-19 days
330 273-6452 Countersunk screw (OBSOLETE) $0.99 6 usually ships 7-19 days
340 373-1864 Scraper lip fixing sleeve Call for price 6 usually ships 7-19 days
350 373-1866 24V hoisting motor Call for price 1 usually ships 7-19 days
410 373-1865 Extension spring Call for price 1 usually ships 7-19 days
