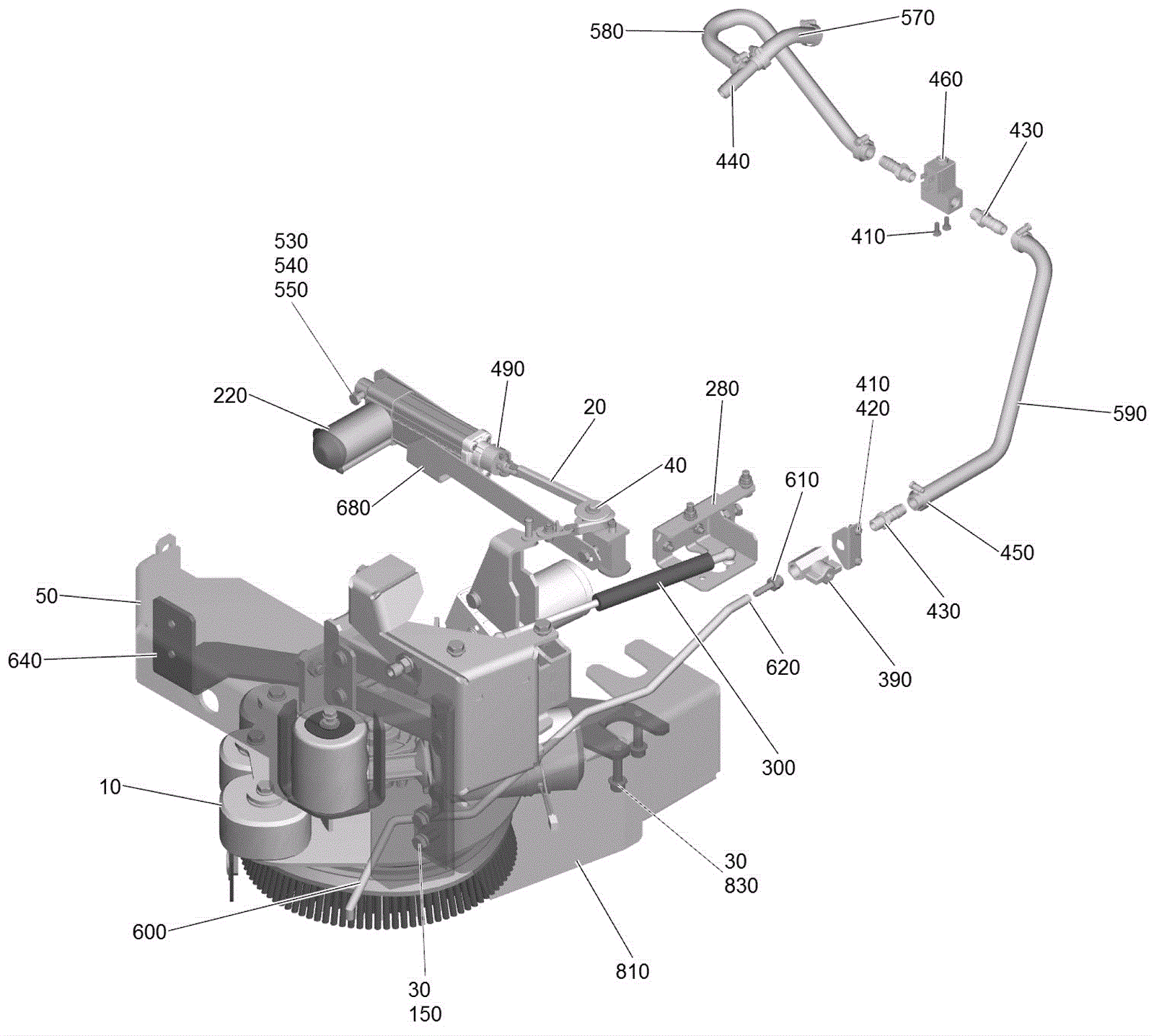

B 250 R Side Scrubbing Deck Assembly-1-Model 1.480-231.2

#PartDescriptionPriceReqNotesAvailability
10 N/A Not available Call for price 1 (assembly group side scrubbing deck) usually ships 3-26 days
20 N/A Not available Call for price 1 (assembly group chain) usually ships 3-26 days
30 273-6016 Washer $1.94 5 usually ships 1-5 days
40 N/A Not available Call for price 1 (assembly group deflection chain) usually ships 3-26 days
50 N/A Not available Call for price 1 (assembly group ram protection lateral) usually ships 3-26 days
150 273-9272 Screw M10 x 25-8.8 hex head $6.44 3 usually ships 7-19 days
220 373-1828 Side broom hoisting motor $1,259.50 1 usually ships 7-19 days
280 N/A Not available Call for price 1 (retainer damper steering) usually ships 3-26 days
300 373-1837 Gas spring Call for price 1 usually ships 7-19 days
390 373-1838 Ball valve Call for price 1 usually ships 7-19 days
410 999-6690 Screw M5-.8 x 12mm hex head stainless steel $0.99 4 usually ships 11-24 days
420 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
430 373-1839 Hose nozzle Call for price 3 usually ships 7-19 days
440 373-1844 T-hose nozzle $28.11 1 usually ships 7-19 days
450 273-4732 Hose clip $7.15 6 usually ships 7-19 days
460 373-1840 Water solenoid valve Call for price 1 usually ships 7-19 days
490 373-1836 Sleeve spacer cylinder Call for price 1 usually ships 7-19 days
530 183-0341 Hex nut $1.63 1 usually ships 1-5 days
540 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
550 273-8130 Screw M8 x 45 hex head $6.11 1 usually ships 7-19 days
570 273-5847 Spiral hose (sold by the inch) $24.20 0.10m usually ships 7-19 days
580 273-5847 Spiral hose (sold by the inch) $24.20 0.33m usually ships 7-19 days
590 273-5847 Spiral hose (sold by the inch) $24.20 0.42m usually ships 7-19 days
600 273-9057 Hose $10.67 0.8m usually ships 7-19 days
610 373-1841 Hose stem Call for price 1 usually ships 7-19 days
620 273-4735 Hose clip $1.76 1 usually ships 7-19 days
640 373-1842 Ram protection support Call for price 1 usually ships 7-19 days
680 373-1829 Hoisting motor plate $37.27 1 usually ships 7-19 days
810 373-1843 Side scrubbing deck ram protection Call for price 1 usually ships 7-19 days
830 373-1845 Cylinder head screw M10x45-8.8-A2K DIN $5.12 2 ships same day
