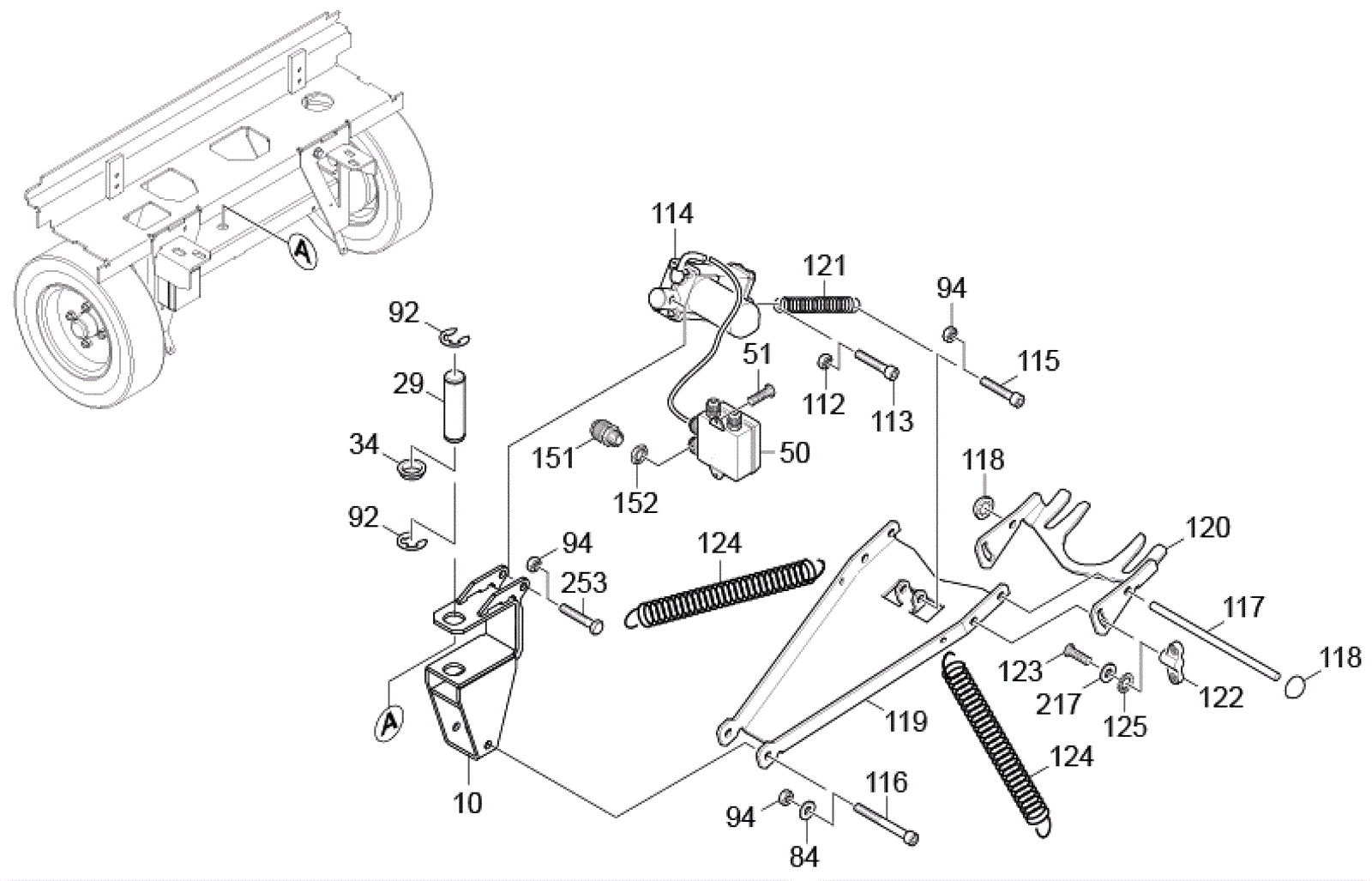

B 250 R Carriage Assembly-Hoisting-Model 1.480-231.2

#PartDescriptionPriceReqNotesAvailability
10 273-9283 Suction bar holder $367.22 1 usually ships 14-22 days
29 273-9284 Retraction bolt suction beam $64.90 1 usually ships 14-22 days
34 273-8135 Plain bearing $24.24 4 usually ships 14-22 days
50 273-9285 Distribution box $20.13 1 usually ships 14-22 days
51 173-6287 Screw M5 x 16mm (OBSOLETE) $2.26 3 usually ships 1-5 days
84 999-9097 Washer M8 flat stainless steel $0.99 45 ships same day
92 183-0372 Washer $6.36 2 usually ships 1-5 days
94 273-7139 Nut M8-8 hex $2.26 17 usually ships 1-5 days
112 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
113 173-5898 Screw M6 x 30mm cylinder head $1.06 1 usually ships 1-5 days
114 273-9286 36V hoisting motor $994.57 1 usually ships 14-22 days
115 273-9287 Screw M8 x 40-8.8 $2.89 1 usually ships 14-22 days
116 273-9288 Screw M8 x 70-8.8 $5.50 1 usually ships 14-22 days
117 183-0342 Bar $8.67 1 ships same day
118 173-6305 Lock washer $7.01 2 usually ships 14-22 days
119 273-9289 Sheet metal component $234.22 1 usually ships 14-22 days
120 273-9290 Rocker suction bar $96.25 1 usually ships 14-22 days
121 273-9291 Extension spring $75.92 2 usually ships 14-22 days
122 273-9292 M6 wing nut $30.83 2 usually ships 14-22 days
123 183-0343 Screw $1.76 2 usually ships 15-28 days
124 273-9293 Extension spring $58.38 2 usually ships 14-22 days
125 273-9294 Toothed lock washer $2.40 2 usually ships 14-22 days
151 273-9295 Cable gland $3.19 5 usually ships 14-22 days
152 273-8525 Lock nut $7.26 5 usually ships 14-22 days
217 999-1261 Washer M6 flat stainless steel $0.99 9 ships same day
253 273-8130 Screw M8 x 45 hex head $6.53 1 usually ships 14-22 days
