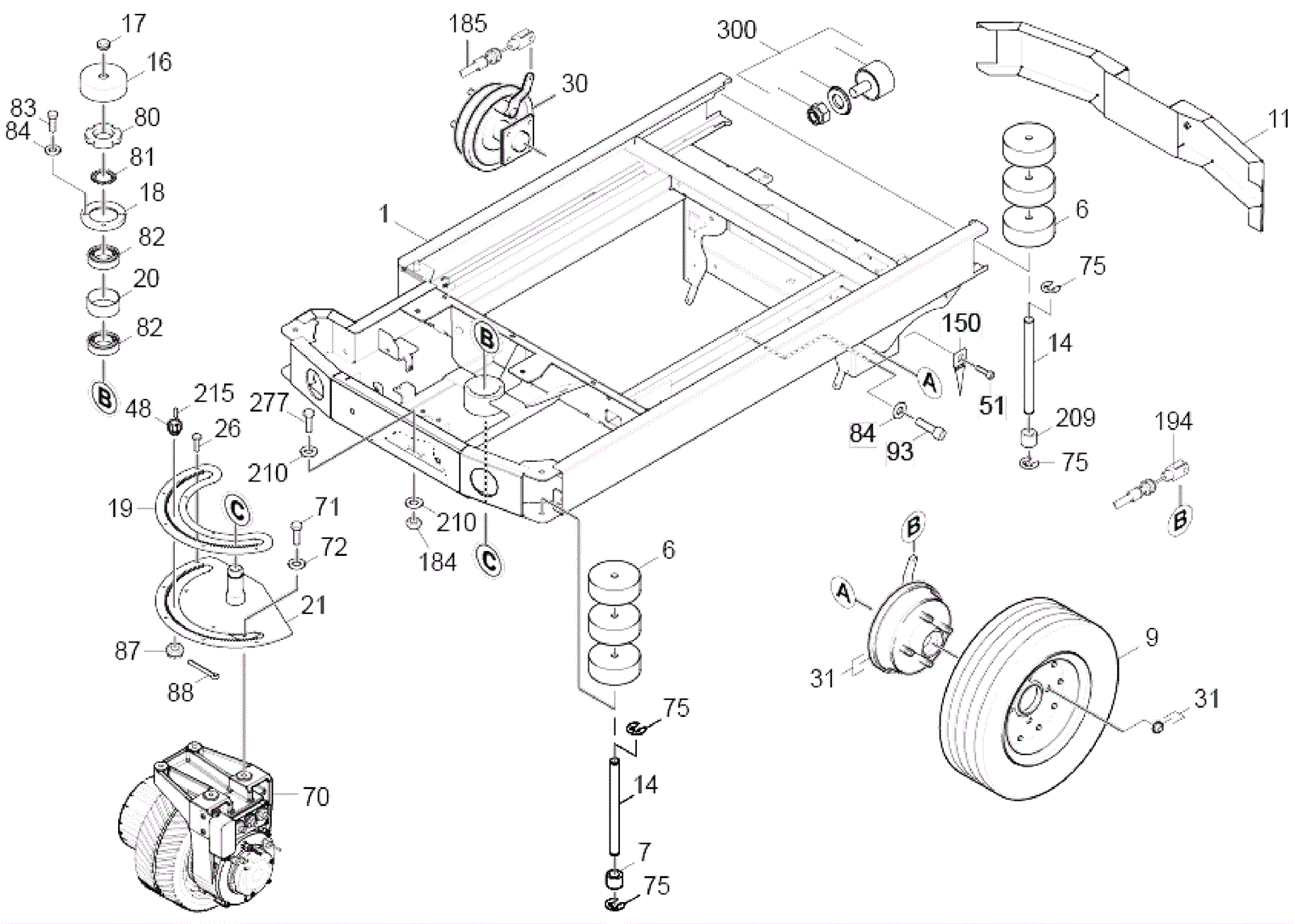

B 250 R Carriage Assembly-Main-Model 1.480-231.2

#PartDescriptionPriceReqNotesAvailability
1 273-9239 Frame $4,812.50 1 usually ships 7-19 days
6 183-0289 Roller wheel $24.09 12 usually ships 7-19 days
7 273-9240 Sleeve $7.59 2 usually ships 7-19 days
9 273-9241 Super grip rear wheel $1,320.00 2 usually ships 7-19 days
11 273-9242 Rear panel closing $5.50 1 usually ships 7-19 days
14 273-9243 Bolt $18.70 14 usually ships 7-19 days
16 273-9244 Cover Call for price 1 usually ships 7-19 days
17 273-9245 Wire protecting sleeve Call for price 1 usually ships 7-19 days
18 273-9246 Flange $83.05 1 usually ships 7-19 days
19 273-9247 Segment steering plate $83.60 1 usually ships 7-19 days
20 273-9248 Steering sleeve $34.10 1 usually ships 7-19 days
21 273-9249 Flanged bearing $671.00 1 usually ships 7-19 days
26 273-9250 Screw M6 x 16 hex head $4.95 7 usually ships 7-19 days
30a 373-1770 Right hand wheel brake Call for price 1 (version 2) usually ships 7-19 days
30b 273-9251 Right hand wheel brake $1,052.70 1 (version 1) usually ships 7-19 days
31a 373-1771 Left hand wheel brake Call for price 1 (version 2) usually ships 7-19 days
31b 373-1772 Left hand wheel brake packaged $1,001.28 1 (version 1) usually ships 7-19 days
48 273-9253 Gear wheel $257.40 1 usually ships 7-19 days
51 173-6287 Screw M5 x 16mm $1.94 3 usually ships 1-5 days
70 273-3609 Drive wheel $9,405.00 1 usually ships 7-19 days
71 273-9254 Screw M12 x 30 hex head Call for price 4 usually ships 7-19 days
72 173-6333 Washer $2.30 20 usually ships 1-5 days
75 273-7031 Lock washer $1.88 8 usually ships 7-19 days
80 273-9255 Nut KM8 slotted $21.45 1 usually ships 7-19 days
81 273-9256 Locking plate $4.02 1 usually ships 7-19 days
82 273-8095 Ball bearing $62.15 2 usually ships 7-19 days
83 273-9238 Screw M8 x 30 hex head $8.69 4 usually ships 7-19 days
84 999-9097 Washer M8 flat stainless steel $0.99 45 ships same day
87 183-7460 Castel nut $3.61 1 usually ships 8-21 days
88 183-7459 Cotter pin $2.02 1 usually ships 8-21 days
93 273-8267 Screw M8 x 30 socket head $3.21 8 usually ships 7-19 days
150 273-9258 Grounding tongue $89.10 1 usually ships 7-19 days
184 999-1651 Nut M8-1 hex stainless steel $2.83 8 ships same day
185 273-9259 Left hand bowden brake wire $250.80 1 usually ships 7-19 days
194 373-1773 Right hand brake wire $87.87 1 usually ships 7-19 days
209 273-9261 Bushing $6.60 2 usually ships 7-19 days
210 173-6204 Washer 8M $1.28 10 usually ships 7-19 days
215 273-9262 Parallel key $7.21 1 usually ships 7-19 days
277 183-4164 Screw, hex head (Obsolete) $4.49 2 usually ships 1-5 days
300 273-9263 Buffer bracket conversion kit (rubber) Call for price 1 usually ships 7-19 days
