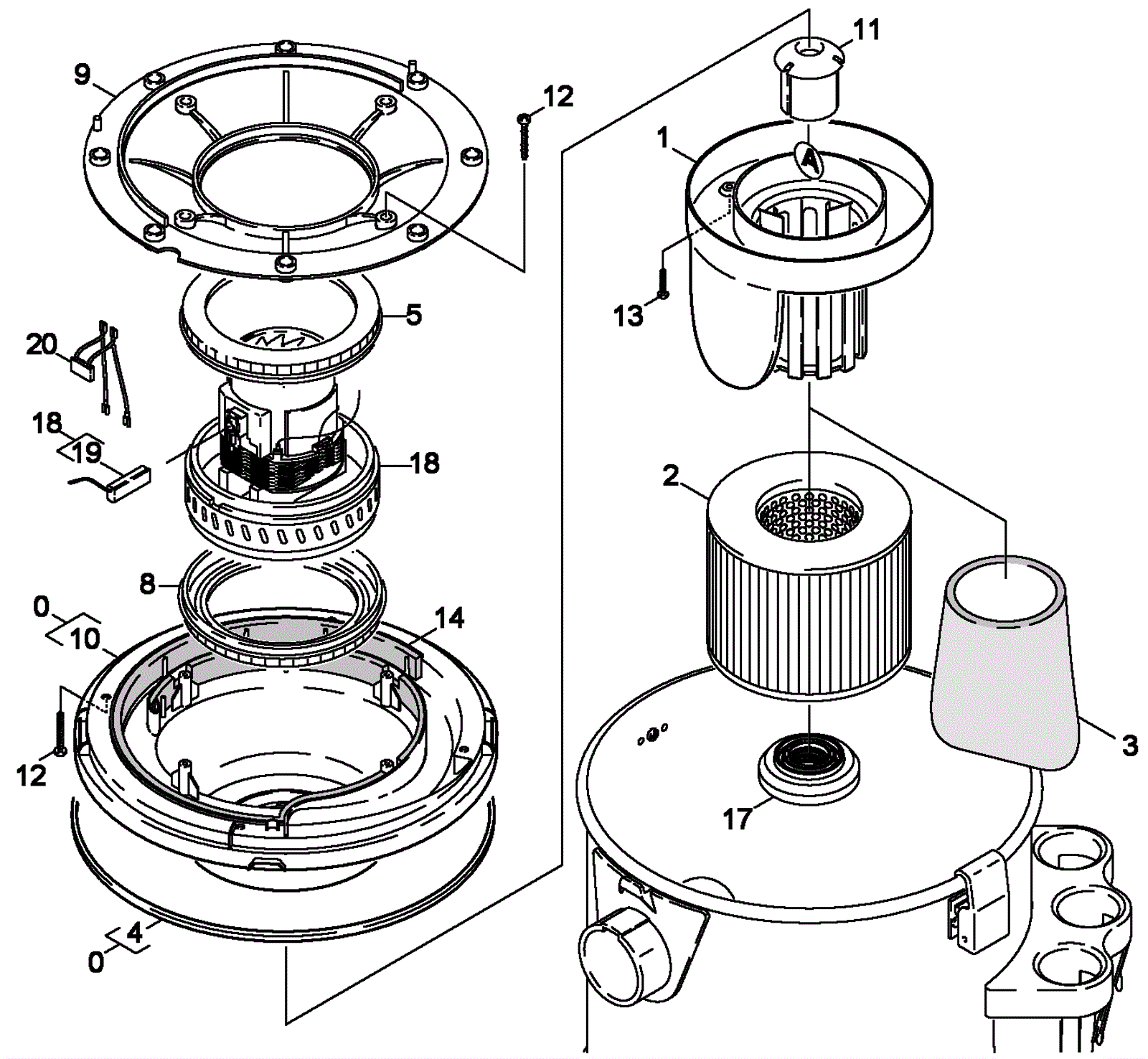

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
173-5741
|
Motor and base assembly |
1 |
(includes 4, 10) |
|
1 |
173-5751
|
Upper filter housing |
1 |
|
|
2 |
173-5752
|
Cartridge filter |
1 |
|
|
3 |
173-5743
|
Filter |
1 |
|
|
4 |
173-5744
|
Seal |
1 |
|
|
5 |
173-5745
|
Top motor seal |
1 |
|
|
8 |
173-5746
|
Bottom motor seal |
1 |
|
|
9 |
173-5747
|
Upper plate |
1 |
|
|
10 |
173-5748
|
Bottom plate |
1 |
|
|
11 |
173-5387
|
Float |
1 |
|
|
12 |
173-5749
|
Screw M4-10.9 x 35mm round head |
8 |
|
|
13 |
173-5750
|
Screw M4-10.9 x 16mm round head |
2 |
|
|
14 |
273-0964
|
Sound insulation set |
1 |
|
|
17 |
173-5753
|
Lower filter housing |
1 |
|
|
18 |
173-5386
|
120V vacuum motor |
1 |
(includes 19) |
|
19 |
173-5742
|
Carbon brush |
2 |
|
|
20 |
273-0958
|
Wire |
1 |
|
|
