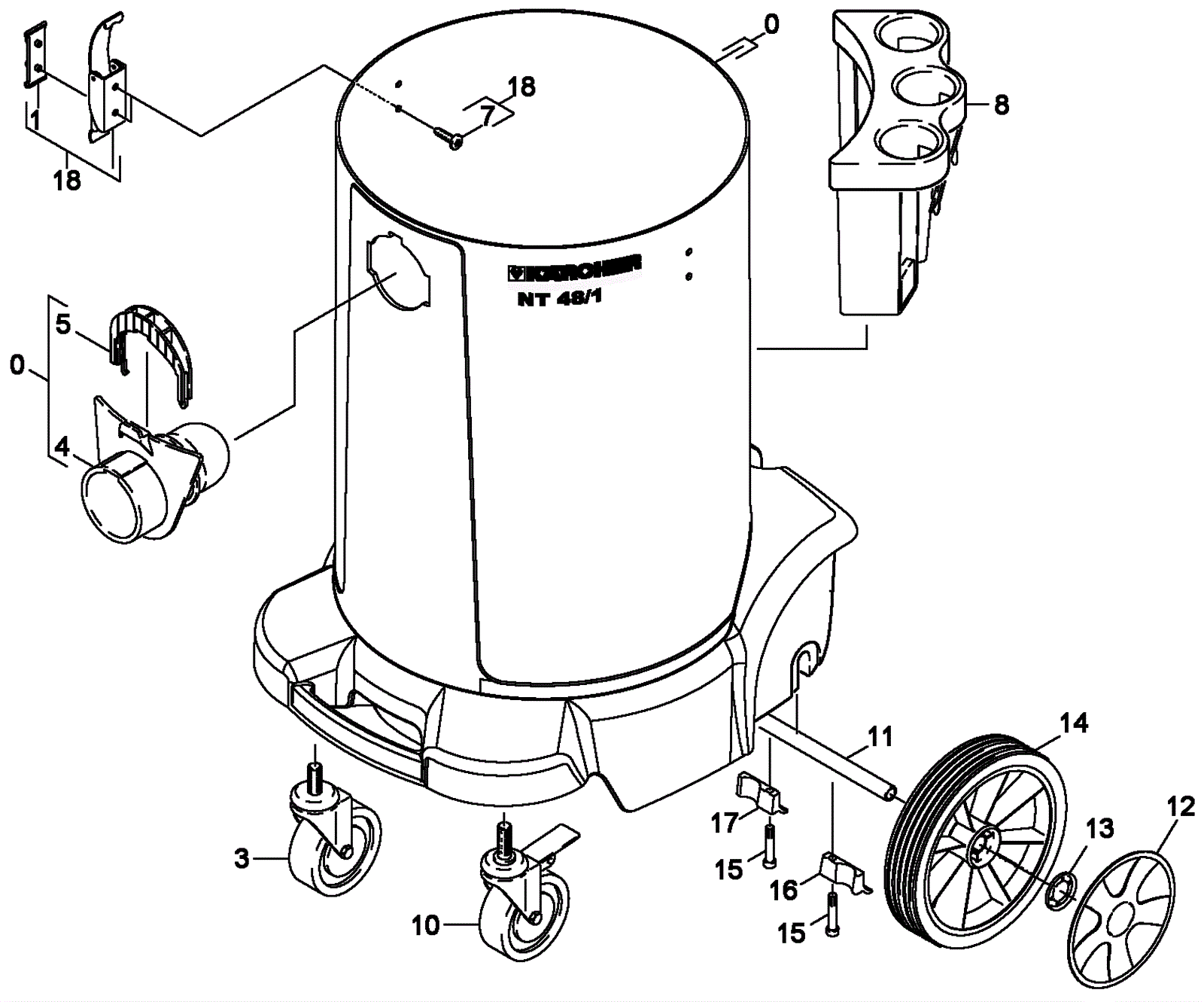

Tank Assembly-Model 9.398-200.0

#PartDescription ReqNotesAvailability
0 273-0858 Tank assembly (grey) 1 (includes 4-5)
1 273-0859 Holder closure 2
3 273-0968 Caster wheel 1
4 273-0969 Hose receptacle 1
5 273-0970 Hose holder connector 1
7 173-5867 Screw 4 x 12 4
8 273-0860 Accessories holder 1
10 173-5389 3 inch caster wheel 1
11 273-0974 Axle 1
12 173-0744 Wheel caps set 1
13 273-0976 Hub clip 2
14 173-5390 Wheel 2
15 273-0977 Screw M5-10.9 x 30mm 2
16 273-0978 Left holder 1
17 273-0979 Right holder 1
18 273-6804 Latch 2 (includes 1, 7)
