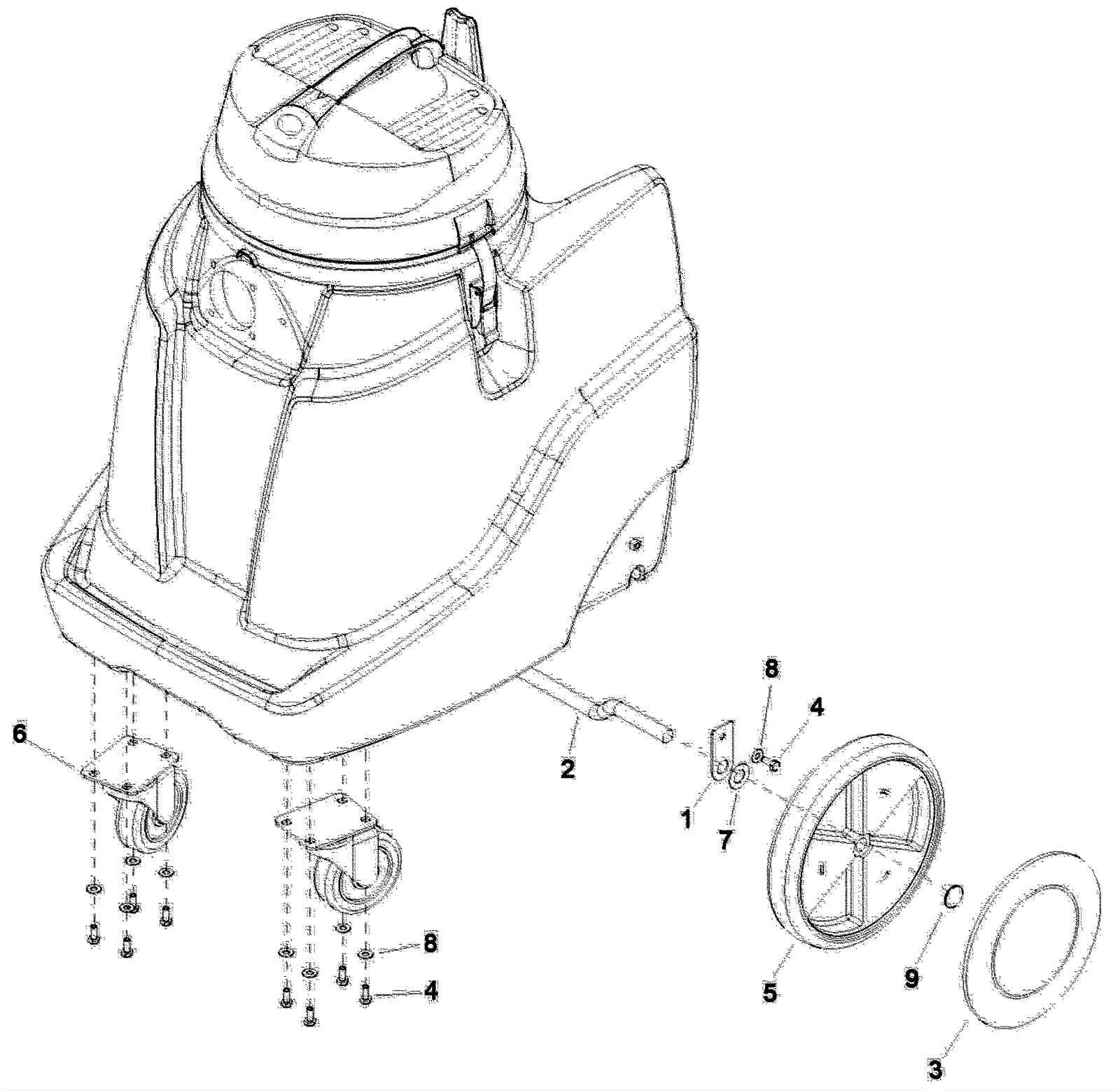

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-1219
|
Axle retainer plate |
2 |
|
|
2 |
273-6806
|
Rear axle |
1 |
|
|
3 |
273-3529
|
Hubcap (black) |
2 |
|
|
4 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
10 |
|
|
5 |
273-4000
|
10 inch gray wheel |
2 |
|
|
6 |
173-0557
|
4 inch swivel caster wheel |
2 |
|
|
7 |
999-9127
|
Washer 5/8 SAE flat stainless steel |
2 |
|
|
8 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
10 |
|
|
9 |
173-2064
|
Axle cap |
2 |
|
|
