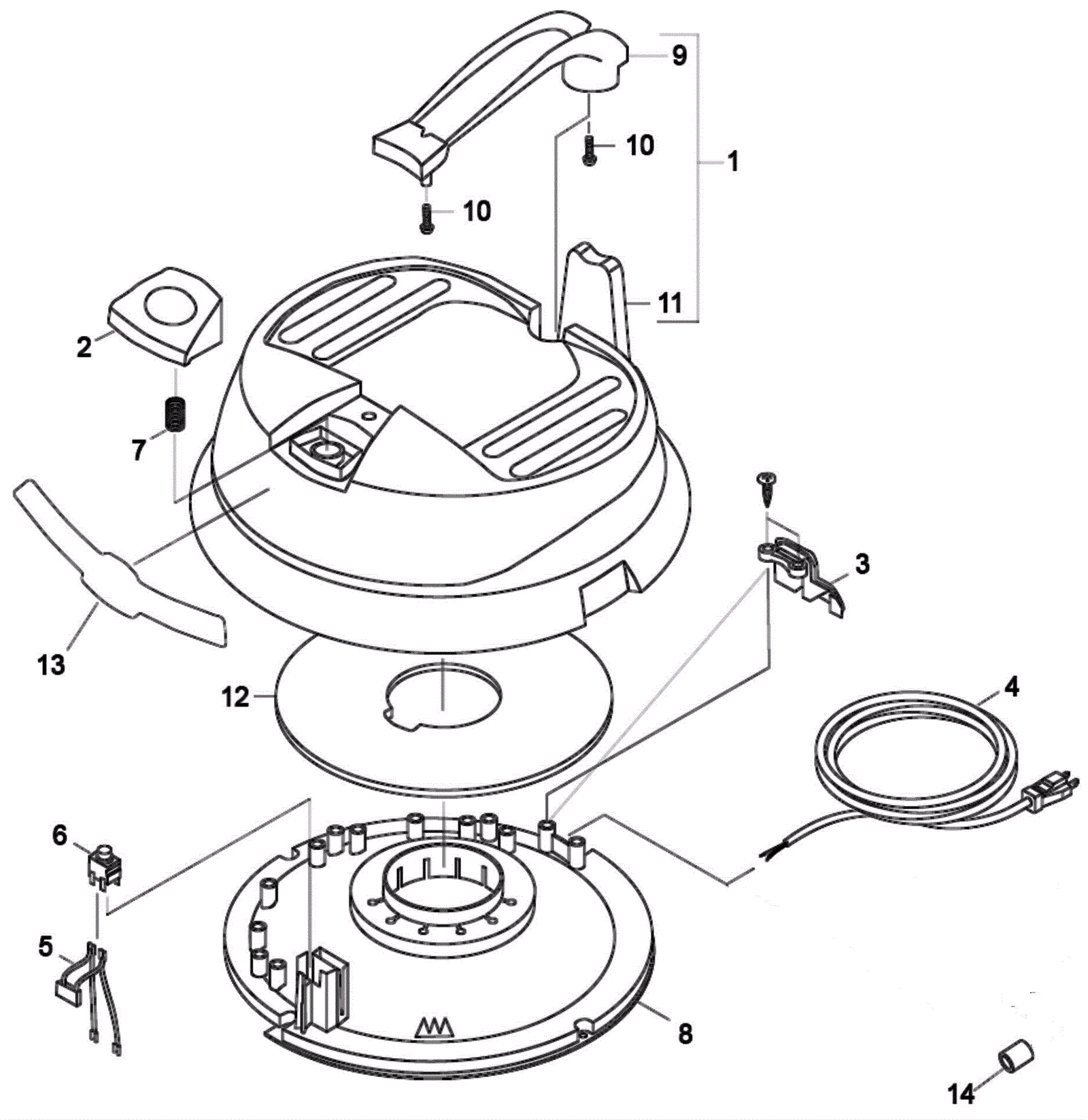

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-0955
|
Cover assembly |
1 |
(includes 9-11) |
|
2a |
273-0956
|
Spring cover |
1 |
|
|
2b |
273-5020
|
Pushbutton (yellow) |
1 |
|
|
3a |
273-0957
|
Strain relief |
1 |
|
|
3b |
273-5021
|
Strain relief |
1 |
|
|
4 |
273-6807
|
Power cord |
1 |
(120V) |
|
5a |
273-5022
|
Electrical small parts |
1 |
|
|
5b |
273-0958
|
Wire |
1 |
|
|
6 |
173-5367
|
Toggle switch |
1 |
|
|
7 |
273-0959
|
Spring |
1 |
|
|
8 |
273-0960
|
Bottom plate |
1 |
|
|
9 |
273-0961
|
Handle |
1 |
|
|
10 |
273-0962
|
Screw M4-10.9 x 25mm phillips head |
4 |
|
|
11 |
273-0963
|
Cover |
1 |
|
|
12 |
273-0964
|
Sound insulation set |
1 |
|
|
13 |
273-6808
|
Wet/dry decal |
1 |
|
|
14 |
273-0385
|
Ferrite ring |
1 |
|
|
