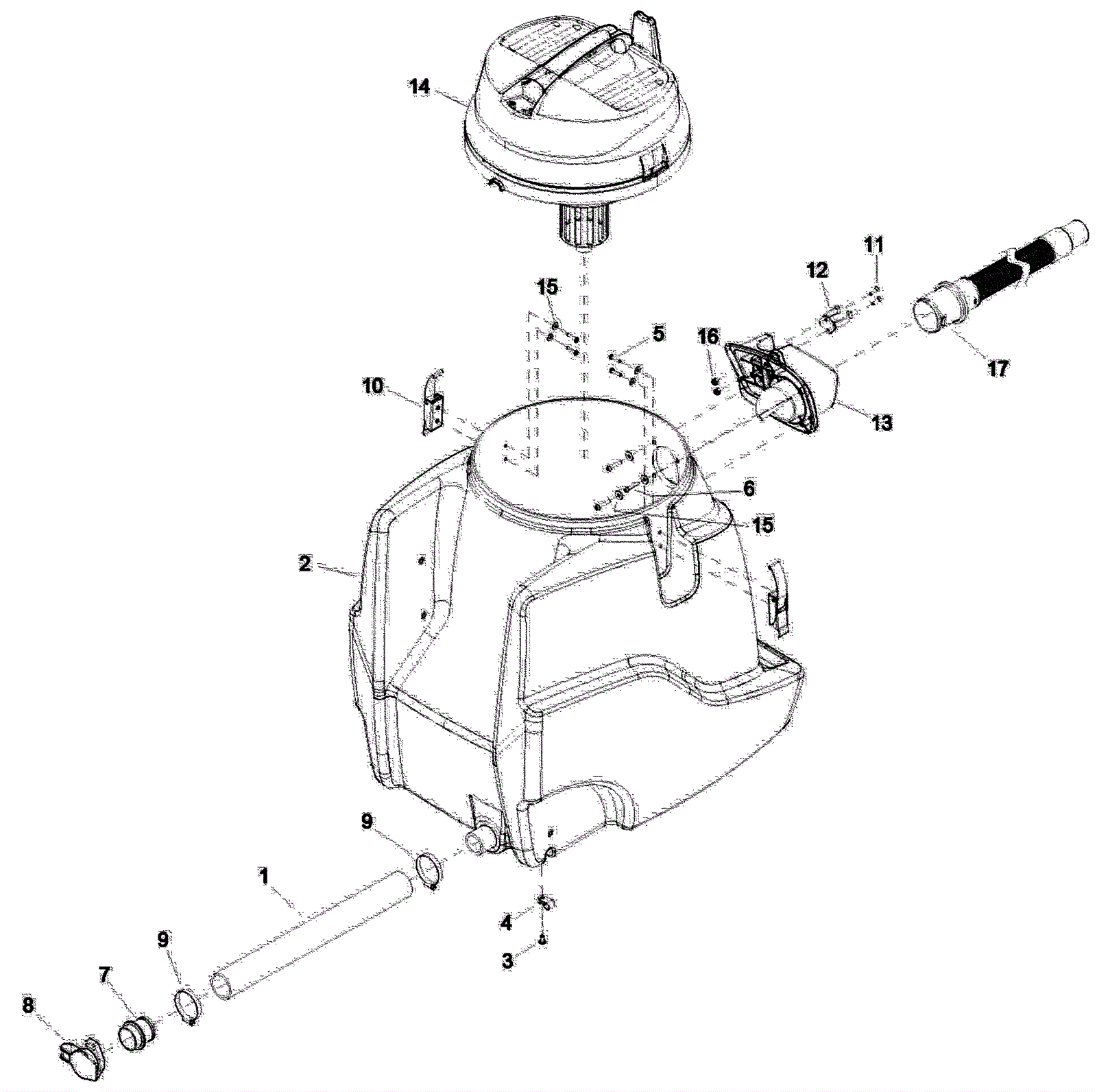

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-6802
|
Drain hose |
1 |
|
|
2 |
273-5019
|
Tank wet dry Mongoose (gray) |
1 |
|
|
3 |
999-0896
|
Screw 10-32 x 3/8 round head phillips stainless steel |
1 |
(except model 1.013-019.0) |
|
4 |
173-1709
|
P clamp (OBSOLETE) |
1 |
(except model 1.013-019.0) |
|
5 |
273-5650
|
Screw KA40 x 20mm oval |
4 |
|
|
6 |
273-5415
|
Screw KA50 x 25mm stainless steel |
4 |
|
|
7 |
173-5207
|
Hose insert |
1 |
|
|
8 |
173-5208
|
Drain plug |
1 |
|
|
9 |
189-0329
|
Hose clamp |
2 |
|
|
10 |
273-6804
|
Latch |
2 |
|
|
11 |
999-1684
|
Screw 8-32 x 3/4 phillips flat head thread cutting |
2 |
|
|
12 |
173-9990
|
Clip |
1 |
|
|
13 |
273-6809
|
Hose adapter |
1 |
|
|
14 |
273-6810
|
Tank lid complete |
1 |
|
|
15 |
273-5539
|
Washer M5 stainless steel |
8 |
|
|
16 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
2 |
|
|
17 |
273-7450
|
26 1/4 inch vacuum hose |
1 |
(except model 1.013-021.0) |
|
