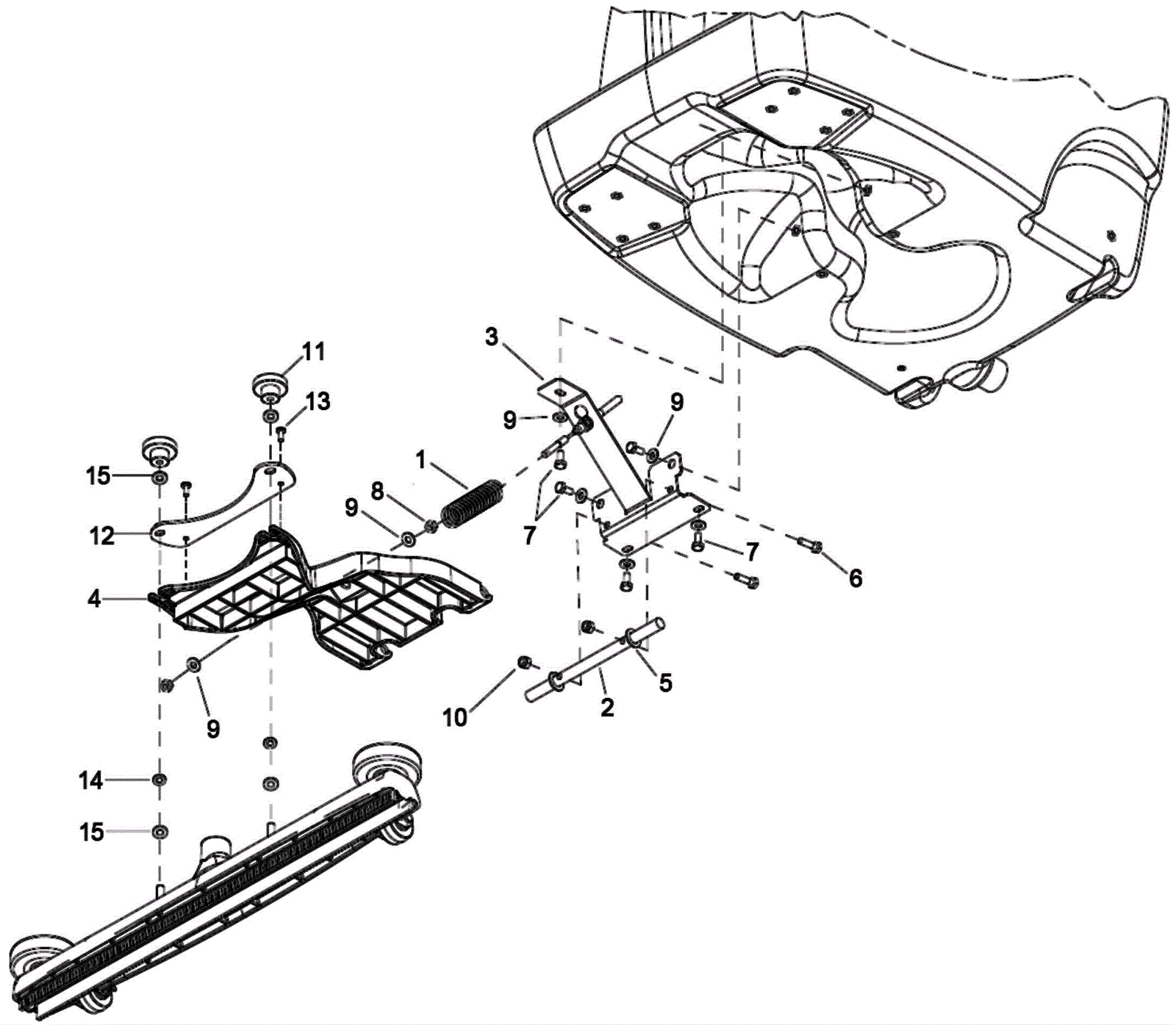

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-6812
|
Spring |
1 |
|
|
2 |
273-6813
|
Shaft |
1 |
|
|
3 |
273-6814
|
Retainer bracket |
1 |
|
|
4 |
273-6790
|
Squeegee pivot arm |
1 |
|
|
5 |
173-2581
|
Washer flat |
2 |
|
|
6 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
2 |
|
|
7 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
5 |
|
|
8 |
999-0651
|
Nut 1/4-28 hex stainless steel |
2 |
|
|
9 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
7 |
|
|
10 |
252-0109
|
Nut 1/4 inch ESNA |
2 |
|
|
11 |
173-3184
|
Knob |
2 |
|
|
12 |
273-6815
|
Plate |
1 |
|
|
13 |
173-2566
|
Screw #10 x 1/2 pan head |
2 |
|
|
14 |
999-0548
|
Washer 5/16 external star lock stainless steel |
2 |
|
|
15 |
173-3985
|
Washer 7/16 flat stainless steel |
4 |
|
|
