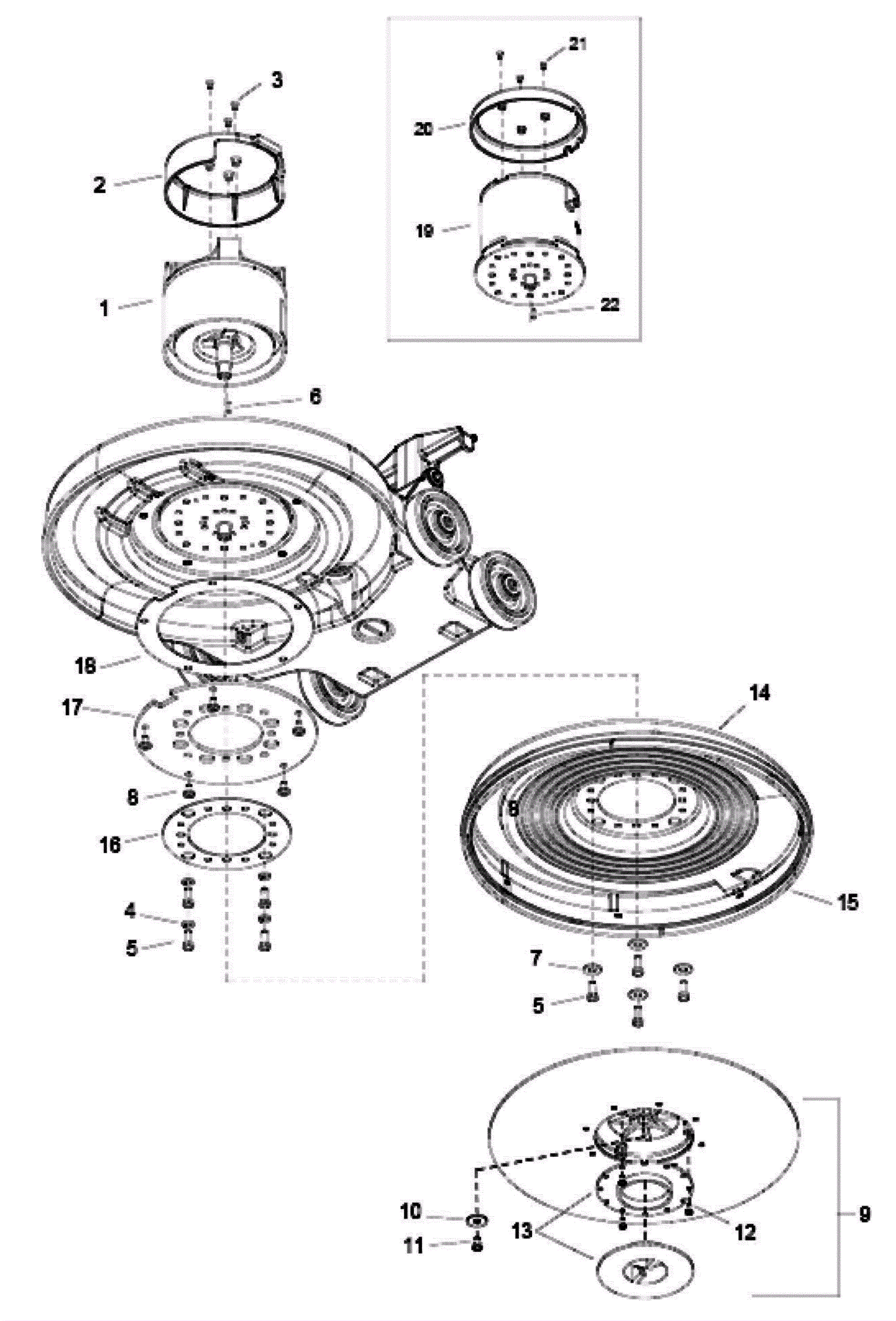

BDP 51/2000 Motor and Pad Driver Assembly-Model 1.009-101.0

#PartDescriptionPriceReqNotesAvailability
1a 173-4157 115V 1.5HP motor 2000RPM $778.00 1 (for models manufactured after 12-11-17) usually ships 11-15 days
1b 273-5012 230V motor Call for price 1 (for models manufactured after 12-11-17) usually ships 11-15 days
2 273-5013 Motor cover assembly $50.84 1 (for models manufactured after 12-11-17) usually ships 11-15 days
3 273-5007 Screw $0.99 3 (for models manufactured after 12-11-17) usually ships 11-15 days
4 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
5 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 8 ships same day
6 273-5014 Motor key (OBSOLETE) Call for price 1 (for models manufactured after 12-11-17) usually ships 11-15 days
7 173-2548 Washer M10 x 30mm plated $4.30 4 usually ships 11-15 days
8 273-5003 Screw $0.99 5 usually ships 11-15 days
9 173-8596 Pad driver assembly $280.13 1 (includes 12-13) usually ships 11-15 days
10 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
11 173-0439 Screw 5/16-24 x 1/2 machine stainless steel $3.54 1 usually ships 11-15 days
12 173-4754 Screw #10 x 3/8 pan head phillips standard type b $1.90 3 usually ships 11-15 days
13 991-2205 Deep lock ring and pad grip ring $32.00 1 usually ships 19-25 days
14 173-9017 Burnisher shroud $258.94 1 (includes 15) usually ships 11-15 days
15 173-2799 Bristle strip (pkg of 6) $105.93 1 ships same day
16 173-9865 Shim 1.5 mm $25.89 1 usually ships 1-5 days
17 273-5015 Motor mount plate $63.80 1 usually ships 11-15 days
18 273-5016 Motor shim $8.59 1 usually ships 11-15 days
19a 273-5017 230V motor $1,153.46 1 (for 230V models manufactured before 12-11-17) usually ships 11-15 days
19b 273-5018 Motor brush kit $101.22 1 (120V brush motor kit) (not shown) usually ships 11-15 days
19c 173-9863 Brush set (pkg of 4) $154.19 2 (brush set, pkg of 4) (not shown) usually ships 11-15 days
20 173-4665 Motor cover $112.41 1 (for models manufactured before 12-11-17) usually ships 11-15 days
21 173-4668 Screw M5-.8 x 15mm $5.08 3 (for models manufactured before 12-11-17) usually ships 1-5 days
22 173-9018 Square keyway $5.50 1 (for models manufactured before 12-11-17) usually ships 11-15 days
N/S 273-1134 50amp bridge rectifier $112.99 1 (50A 1000V rectifier bridge) usually ships 11-15 days
N/S 173-0221 25amp fuse $70.04 3 (fuse) ships same day
N/S 173-2868 Fuse holder $90.63 4 (fuse holder) usually ships 11-15 days
N/S 173-9864 Sealed ball bearing $20.24 5 (bottom motor ball bearing) usually ships 1-5 days
N/S 173-2869 Sealed ball bearing $30.02 6 (top motor ball bearing) usually ships 11-15 days
