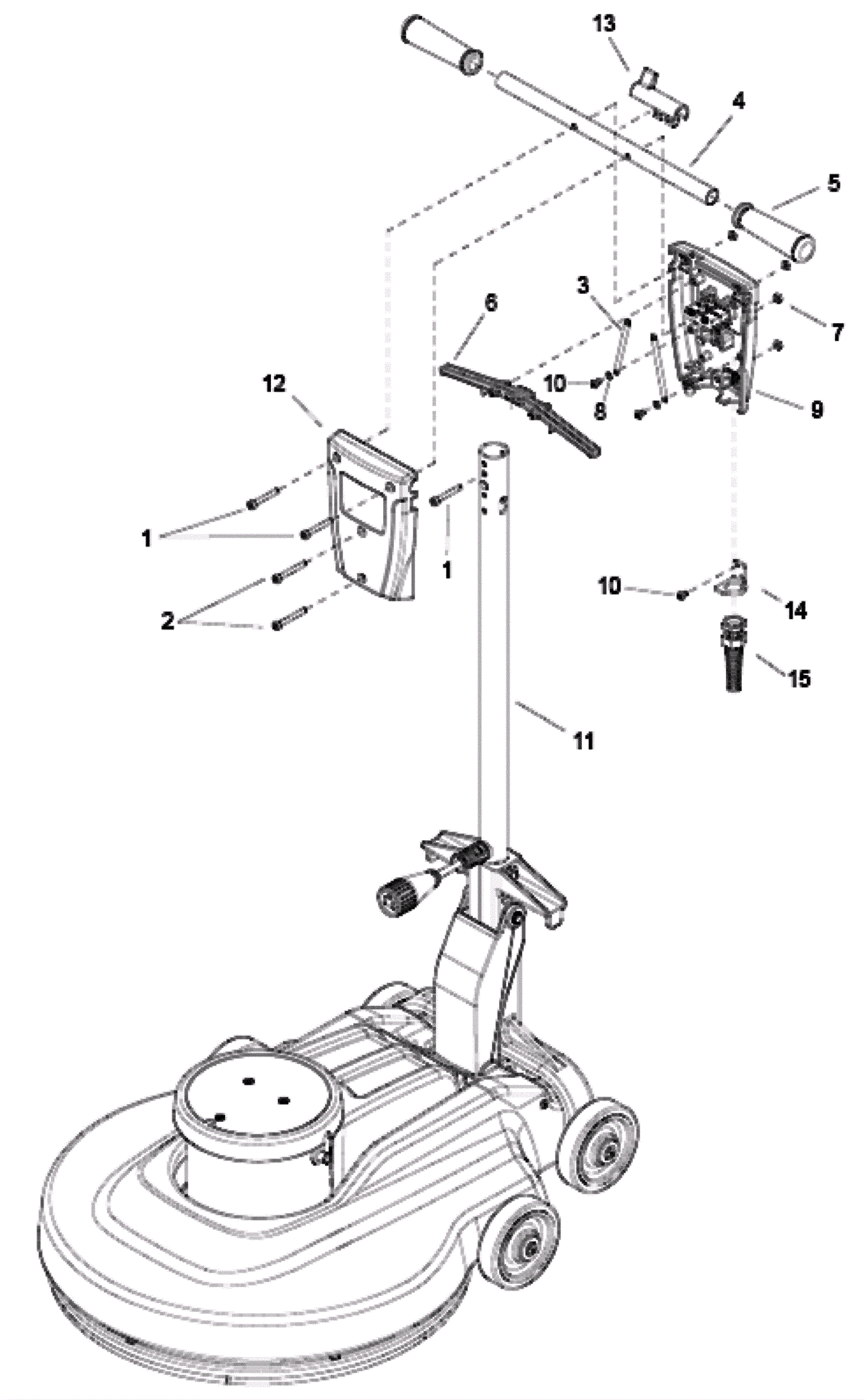

BDP 51/2000 Upper Handle Assembly-Model 1.009-101.0

#PartDescriptionPriceReqNotesAvailability
1 999-1336 Screw M6-1 x 45mm socket head $0.99 2 usually ships 19-32 days
2 999-1337 Screw M6 x 50mm socket head $0.99 2 ships same day
3 173-4699 Spring $19.06 2 usually ships 11-16 days
4 273-5009 Bearing $10.40 1 usually ships 11-16 days
5 173-0371 Handle grip $13.42 2 usually ships 11-16 days
6 273-5010 Lever handhold $14.25 2 usually ships 11-16 days
7 999-0950 Nut M6-1 hex aluminum $1.32 4 ships same day
8 173-7429 Washer M4 flat $1.06 2 usually ships 1-5 days
9 273-4045 Rear handle housing $65.91 1 usually ships 11-16 days
10 173-4697 Screw M4-.8 x 10mm hex head thread forming $2.33 3 ships same day
11 173-8998 Handle tube $34.10 1 usually ships 1-5 days
12 273-4046 Front handle housing $64.15 1 usually ships 11-16 days
13 173-4689 Safety handle lock $21.78 1 ships same day
14 273-4047 Strain relief bracket (OBSOLETE) $9.90 1 usually ships 11-16 days
15a 273-5011 Small metal strain relief $75.92 1 (230V) usually ships 11-16 days
15b 273-4048 Strain relief $78.86 1 (120V) usually ships 11-16 days
