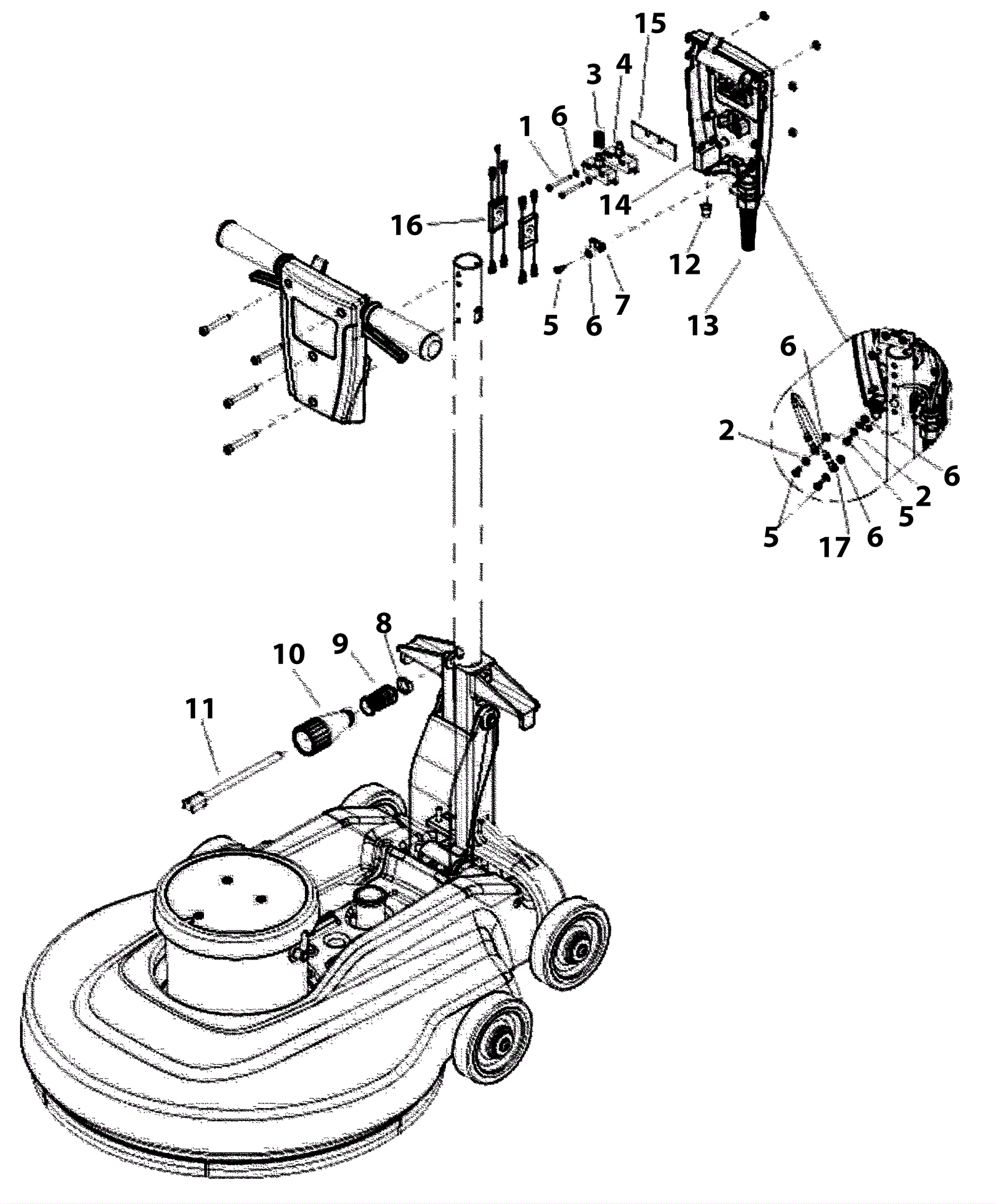

BDP 51/2000 Electrical Assembly-Model 1.009-101.0

#PartDescriptionPriceReqNotesAvailability
1 173-4704 Screw M3-.5 x 40mm pan head thread forming $7.77 2 usually ships 11-15 days
2 999-9100 Washer M5 flat stainless steel $5.83 3 (between SN 1.009-099.0 and SN 1.009-100.0) ships same day
3 173-0923 Spring (OBSOLETE) $2.00 1 usually ships 11-15 days
4 173-6460 25amp switch SPDT service kit $68.27 2 usually ships 11-15 days
5 173-4697 Screw M4-.8 x 10mm hex head thread forming $2.33 4 (between SN 1.009-099.0 and SN 1.009-100.0) ships same day
6 173-4706 Washer M5 shakeproof $1.39 6 (between SN 1.009-099.0 and SN 1.009-100.0) usually ships 11-15 days
7 173-1800 5/16 nylon clamp (OBSOLETE) $0.99 1 usually ships 11-15 days
8 173-2846 Spacer $5.08 1 usually ships 11-15 days
9 173-2845 Strain relief $21.78 1 usually ships 11-15 days
10 173-2844 Cord end boot $4.81 1 usually ships 11-15 days
11 173-8469 14/3 x 38 inch pigtail cord $42.14 1 usually ships 11-15 days
12 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 12-17 days
13 273-5005 14/75 cord set (yellow) $223.63 1 (120V) usually ships 11-15 days
14a 273-7341 11amp circuit breaker $42.72 1 (230V) usually ships 11-15 days
14b 173-7427 14amp circuit breaker $49.43 1 (120V) usually ships 11-15 days
15 173-4765 Barrier sheet $3.67 1 usually ships 11-15 days
16 273-5006 230V filter assembly $71.80 1 (for 230V models manufactured after 3/11/2019) usually ships 11-15 days
17 173-9862 Wire $7.71 1 usually ships 1-5 days
