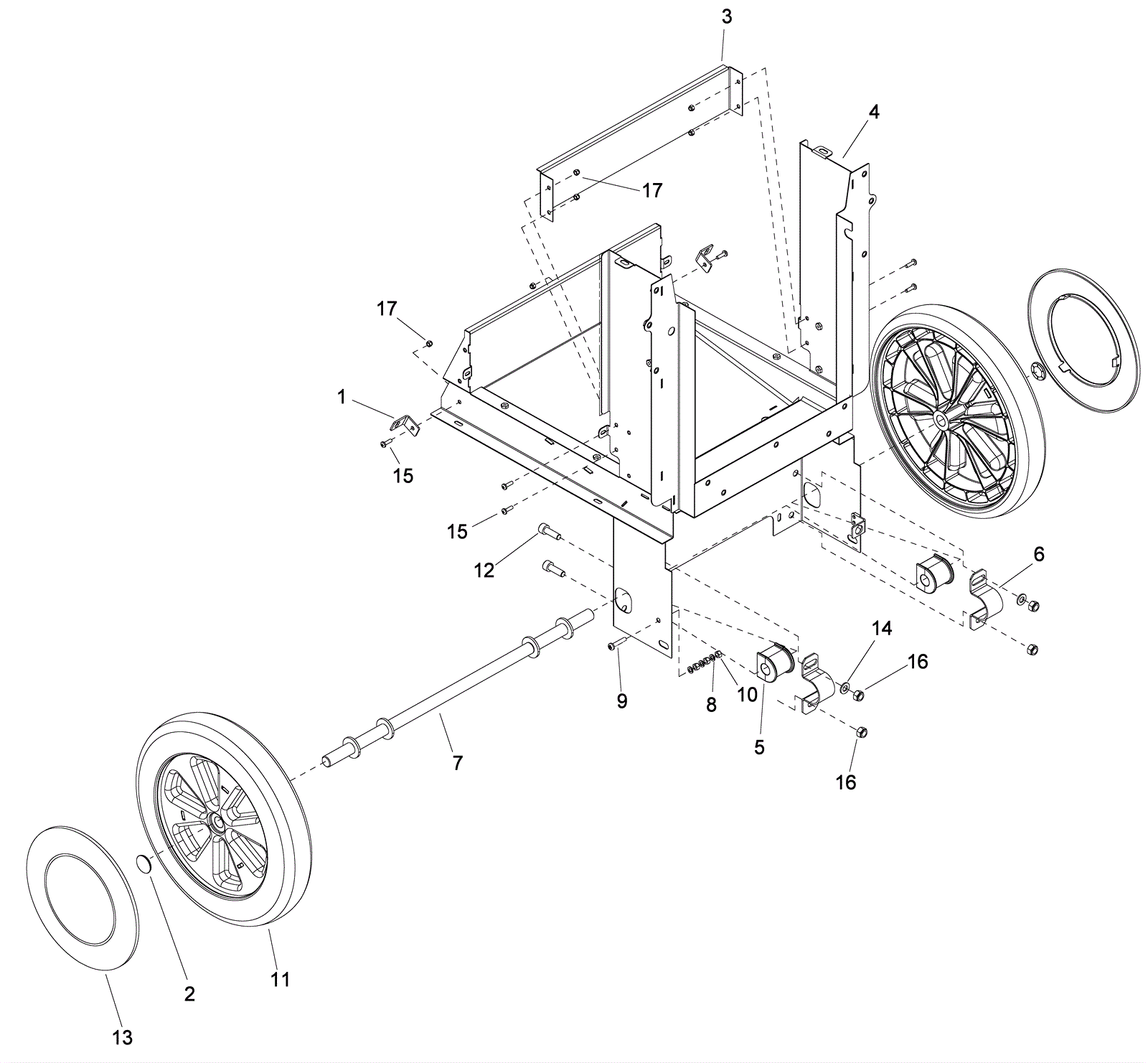

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-4126
|
Attachement bracket |
2 |
|
|
2 |
173-2064
|
Axle cap |
2 |
|
|
3 |
273-4127
|
Rear axle support bracket |
1 |
|
|
4 |
273-4128
|
Frame assembly |
1 |
|
|
5 |
273-4129
|
Axle bushing |
2 |
|
|
6 |
273-4130
|
Axle mount bracket |
2 |
|
|
7 |
273-4131
|
Axle |
1 |
|
|
8 |
999-9132
|
Washer M5 split lock stainless steel |
3 |
|
|
9 |
999-1425
|
Screw M5-.8 x 25mm pan head stainless steel |
1 |
|
|
10 |
999-0740
|
Nut M5-.8 hex stainless steel |
3 |
|
|
11 |
173-5308
|
12 inch wheel |
2 |
|
|
12 |
999-9138
|
Screw M8-1.25 x 25mm socket head stainless steel |
4 |
|
|
13 |
273-5748
|
Wheel hubcap |
2 |
|
|
14 |
273-5523
|
Washer M8 flat stainless steel |
2 |
|
|
15 |
173-8687
|
Screw M4 x 14mm pan head phillips |
6 |
|
|
16 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
17 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
6 |
|
|
