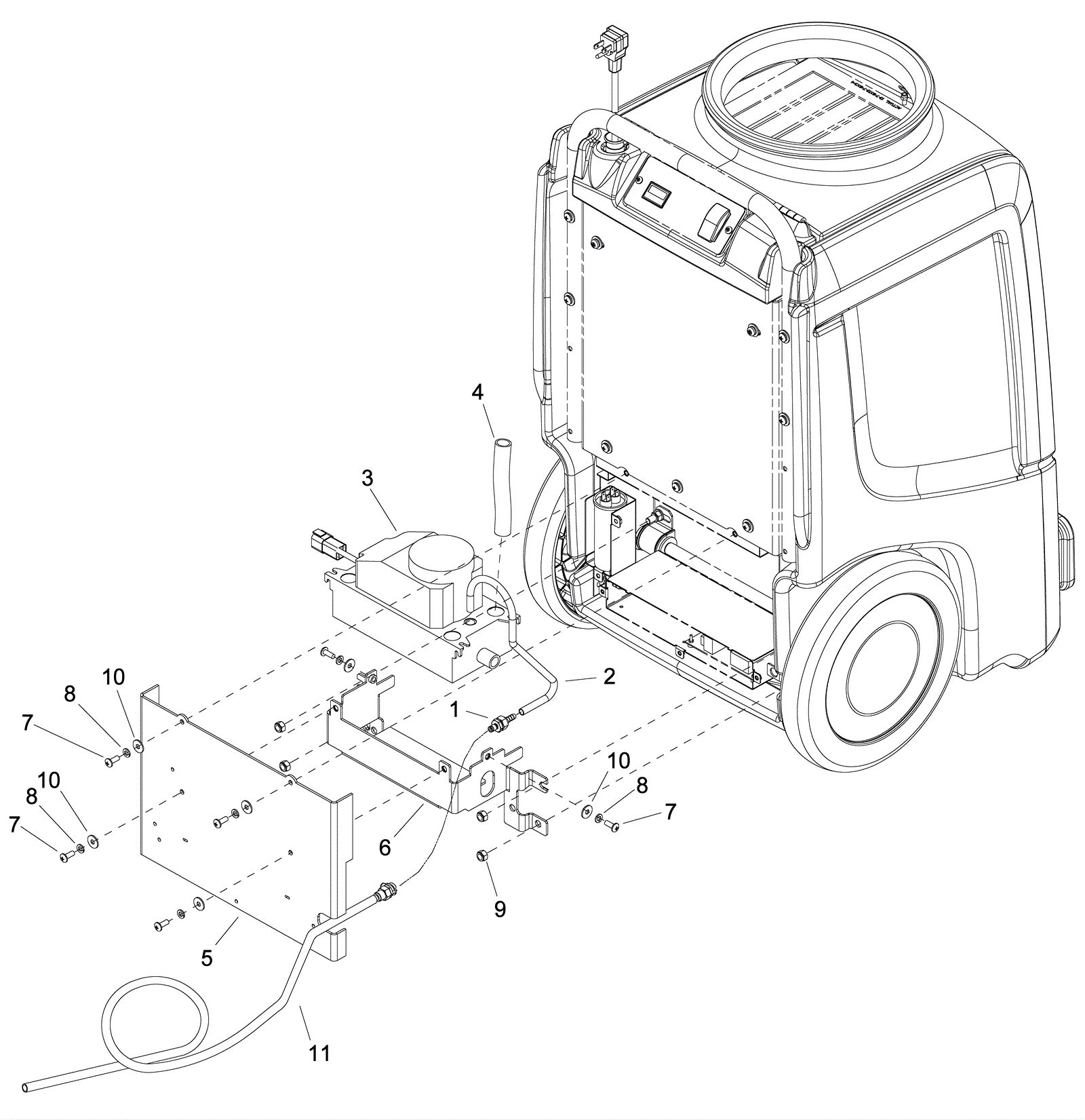

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-4134
|
Quick disconnect fitting |
1 |
|
|
2 |
273-4135
|
Condensate pump tube (OBSOLETE) |
1 |
|
|
3 |
273-7763
|
Pump assembly |
1 |
|
|
4 |
273-4136
|
Hose |
1 |
|
|
5 |
273-4137
|
Back plate |
1 |
|
|
6 |
273-7764
|
Pump mount bracket |
1 |
|
|
7 |
273-0225
|
Screw M6 x 16mm pan head stainless steel |
6 |
|
|
8 |
273-5506
|
Washer 6mm spring lock (OBSOLETE) |
6 |
|
|
9 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
10 |
173-4178
|
Washer M6 flat plated (OBSOLETE) |
6 |
|
|
11 |
273-7765
|
Discharge service kit tube |
1 |
|
|
