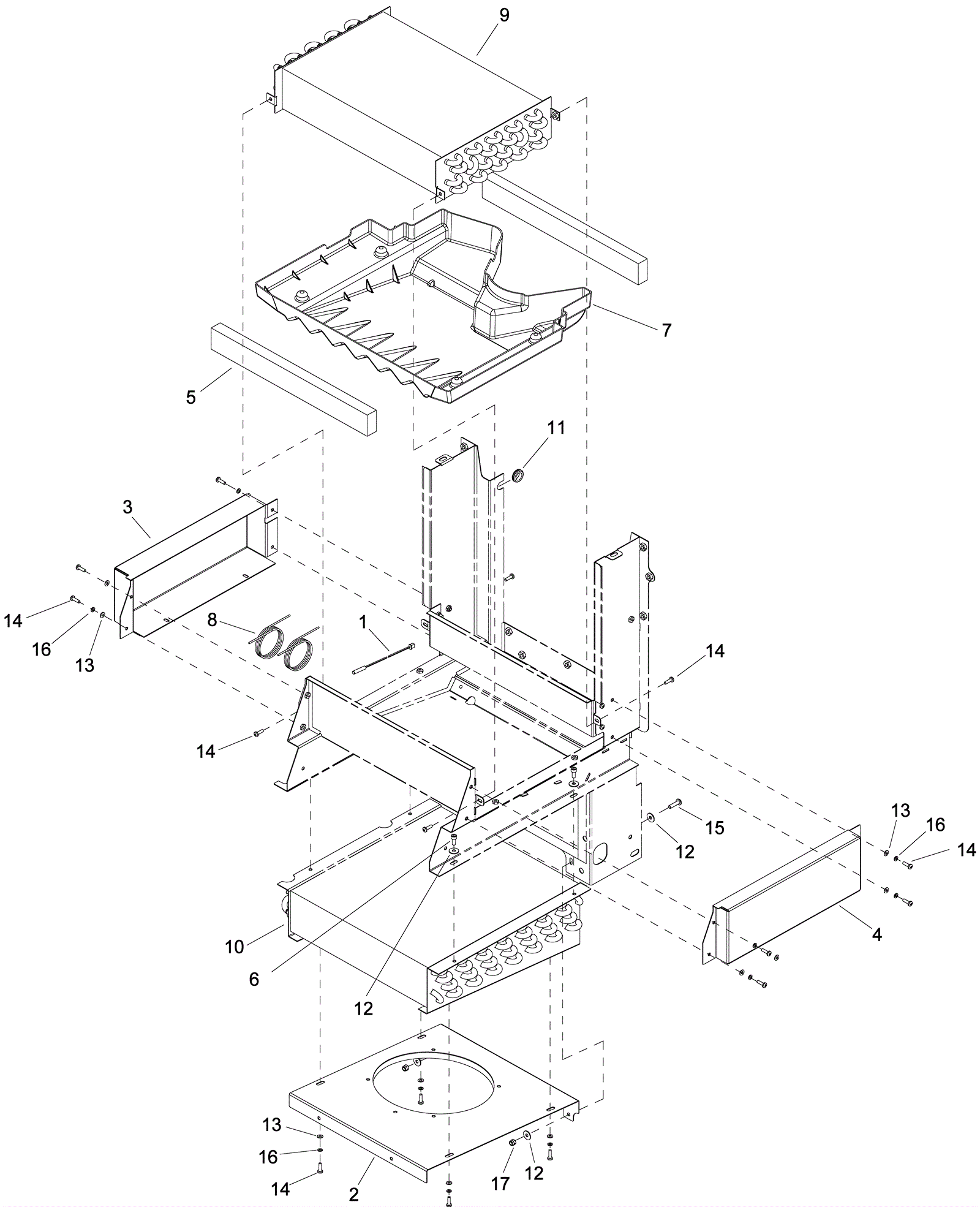

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-4138
|
Thermistor assembly |
1 |
|
|
2 |
273-7766
|
Fan shroud |
1 |
|
|
3 |
273-7767
|
Right cap with seal |
1 |
|
|
4 |
273-7768
|
Left cap with seal |
1 |
|
|
5 |
273-4139
|
Evaporator coil gasket |
2 |
|
|
6 |
273-5734
|
Screw M5-.8 x 12mm socket head cap stainless steel |
4 |
|
|
7 |
273-4140
|
Condensate liner tray |
1 |
|
|
8 |
273-7769
|
Tube |
2 |
|
|
9 |
273-7770
|
Evaporator |
1 |
|
|
10 |
273-1169
|
Condenser |
1 |
|
|
11 |
273-5698
|
Grommet |
1 |
|
|
12 |
273-5591
|
Washer M5 flat stainless steel |
8 |
|
|
13 |
999-9089
|
Washer M4 flat stainless steel |
12 |
|
|
14 |
173-8687
|
Screw M4 x 14mm pan head phillips |
20 |
|
|
15 |
273-5489
|
Screw M5 x 20mm pan head phillips stainless steel |
2 |
|
|
16 |
999-1802
|
Washer M4 spring lock stainless steel |
15 |
|
|
17 |
999-0495
|
Nut M5-.8 nylon insert lock zinc plated |
2 |
|
|
