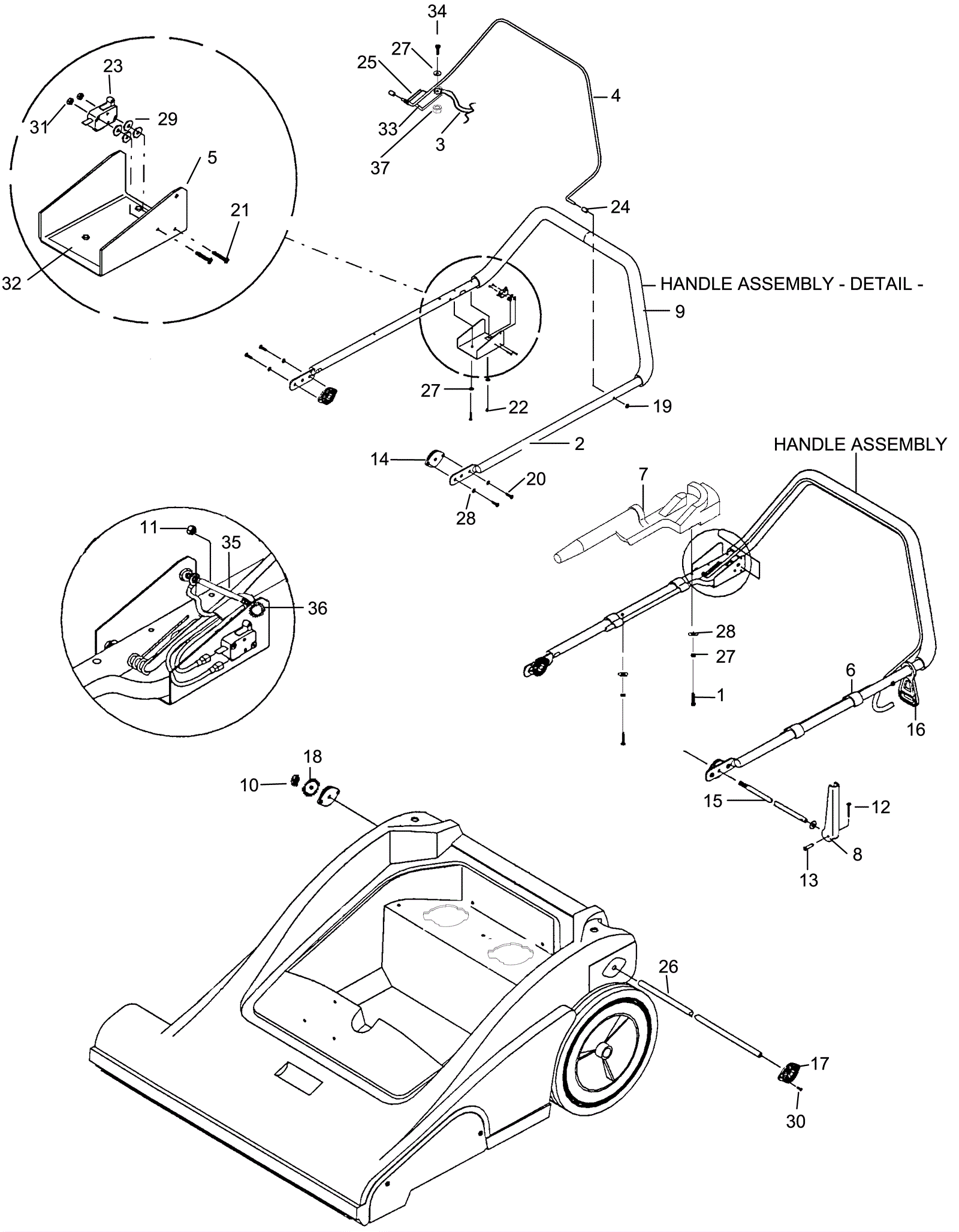

CV 71/2 Handle Assembly-Model 1.012-548.0

#PartDescriptionPriceReqNotesAvailability
1 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated $0.99 2 ships same day
2 373-9513 Main handle Call for price 1 usually ships 1-5 days
3 173-8407 6 Inch ground wire $11.77 1 usually ships 1-5 days
4 173-8408 Brush switch bar assembly (OBSOLETE) $172.70 1 usually ships 14-22 days
5 173-8409 Switch mounting bracket $79.75 1 usually ships 1-5 days
6 173-2077 Power cord clip $1.69 4 usually ships 14-22 days
7 373-9514 CV 71/2 holster Call for price 1 usually ships 1-5 days
8 173-0418 Handle locking lever $31.90 1 usually ships 14-22 days
9 173-8411 17 Inch adjustable handle grip $29.59 2 usually ships 1-5 days
10 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
11 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 1 ships same day
12 173-1130 Cotter ring $2.42 1 ships same day
13 173-0419 Clevis pin $8.47 1 usually ships 14-22 days
14 173-5097 Handle adjustment lock $96.80 2 usually ships 14-22 days
15 173-2343 Vacuum pivot rod $85.80 1 usually ships 1-5 days
16 173-0708 Strain relief cord hook $4.36 1 usually ships 1-5 days
17 173-8412 Handle lock $125.40 2 usually ships 14-22 days
18 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
19 173-8413 Nut 1/4 cap $0.99 2 ships same day
20 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 4 ships same day
21 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
22 999-1990 Screw #10-32 X 1/2 phillips pan head rolling thread zinc $0.99 2 ships same day
23 189-0305 Microswitch $123.95 1 usually ships 14-22 days
24 173-1049 .5 OD x .28 ID x .38 Lnyl Spacer $1.21 2 usually ships 1-5 days
25 173-8414 Torsion spring (OBSOLETE) $28.16 1 usually ships 14-22 days
26 173-8415 Handle adjustment tube $51.59 1 usually ships 1-5 days
27 999-0311 Washer #10 external star lock zinc plated $0.99 5 ships same day
28 999-0998 Washer #10 flat stainless steel $0.99 6 ships same day
29 173-3904 Washer 1/8 rivet backup $1.40 4 usually ships 1-5 days
30 999-0087 Screw 10-32 x 5/8 flat head slotted zinc plated $0.99 4 ships same day
31 173-2579 Nut 4-40 hex star lock $0.99 2 usually ships 1-5 days
32 173-8416 Switch box insulator plate (OBSOLETE) $11.88 1 usually ships 14-22 days
33 173-8417 Spring steel lever $41.47 1 usually ships 1-5 days
34 173-2508 Screw 10-32 x 3/8 pan head thread rolling $0.99 1 usually ships 1-5 days
35 999-0362 Bolt 1/4-20 x 3 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
36 999-0017 Washer 1/4 external star lock $0.99 1 ships same day
37 173-2499 Washer 1/2 External Star $1.19 1 usually ships 1-5 days
