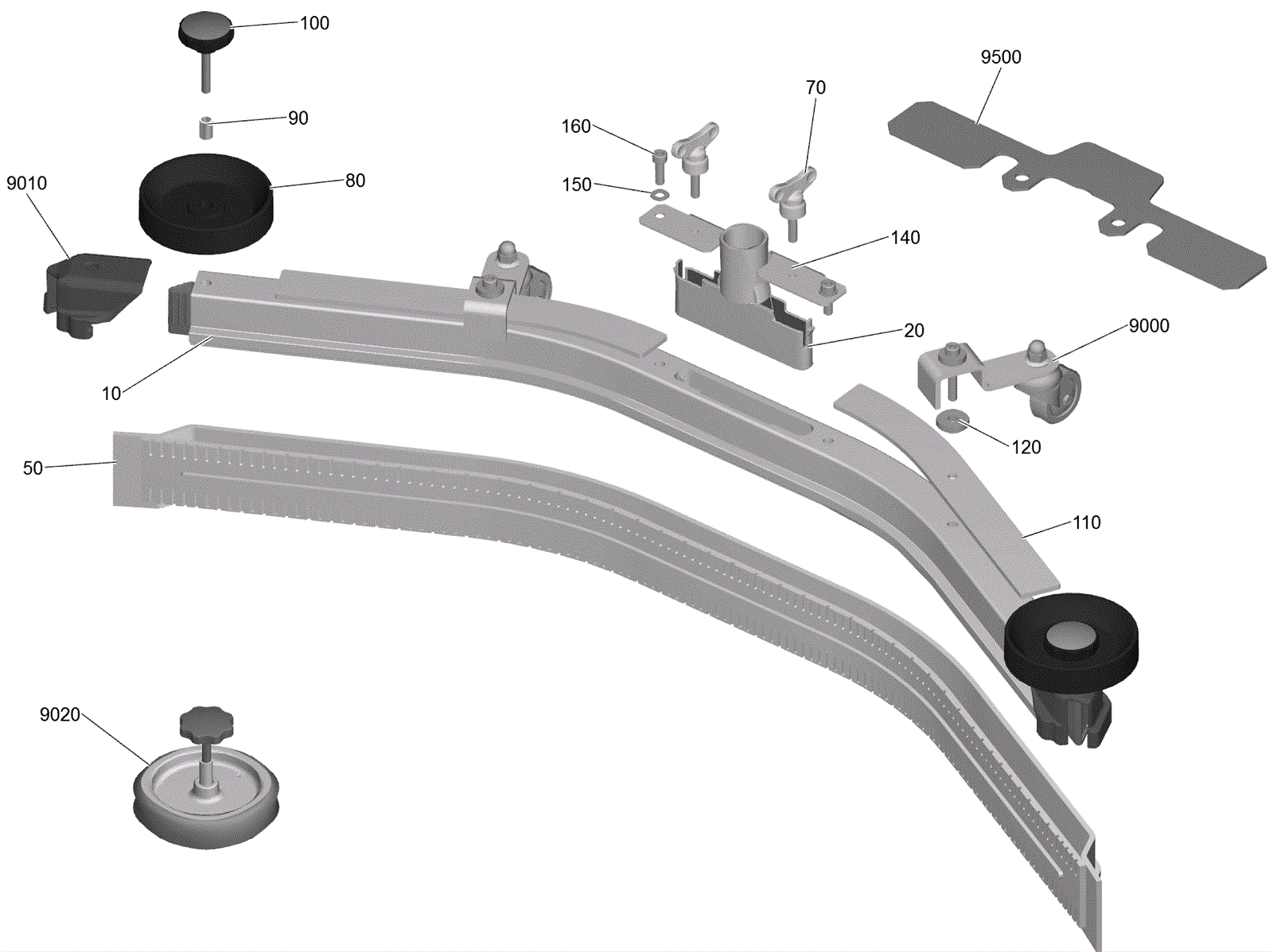

BD 80/100 Curved Suction Bar Assembly Model 1.127-012.0

#PartDescriptionPriceReqNotesAvailability
10a N/A Not available Call for price 1 (includes 10b-10c) (pre assembled suction bar) usually ships 3-26 days
10b 373-1742 Left hand end piece $15.30 1 usually ships 14-22 days
10c 373-1743 Right hand end piece $15.30 1 usually ships 14-22 days
20 273-3479 Suction nipple $38.49 1 usually ships 14-22 days
50a 373-9176 48 inch squeegee standard $176.55 1 (standard) usually ships 14-22 days
50b 373-9177 48 inch squeegee oil resistant $460.21 1 usually ships 14-22 days
50c 373-9178 48 inch squeegee linatex $609.69 1 usually ships 14-22 days
50d 373-9179 Squeegee oil resistant $426.07 1 usually ships 14-22 days
50e 373-9180 Squeegee blade $397.83 1 usually ships 14-22 days
50f 373-9181 Squeegee blade anti stripe oil resistant $529.65 1 usually ships 14-22 days
70 373-4987 Wing screw M8x30 $7.54 2 ships same day
80 273-3481 Guide wheel $31.55 2 (version 1) ships same day
90 273-5924 Sleeve suction bar $9.77 2 (version 1) usually ships 14-22 days
100 373-1737 Star grip $39.90 2 (version 1) ships same day
110 373-9492 Suction bar weight plate $94.60 2 usually ships 1-5 days
120 173-6204 Washer 8M $1.47 10 usually ships 14-22 days
140 373-9493 Suction bar support plate with nut $36.61 1 usually ships 1-5 days
150 999-0150 Washer #8 medium split lock $0.99 2 ships same day
160 273-3477 Screw $5.50 2 usually ships 14-22 days
9000 373-1738 Support $115.35 2 ships same day
9010 273-3475 Left and right end pieces $93.58 1 usually ships 14-22 days
9020 273-0870 Deflector roll assembly $87.69 1 (version 2) usually ships 14-22 days
9500 273-5929 Weight $125.94 1 usually ships 14-22 days
N/S 373-1987 Deflector roll stack formation Call for price 1 usually ships 14-22 days
N/S 373-9494 Metal roller support $61.20 2 usually ships 1-5 days
