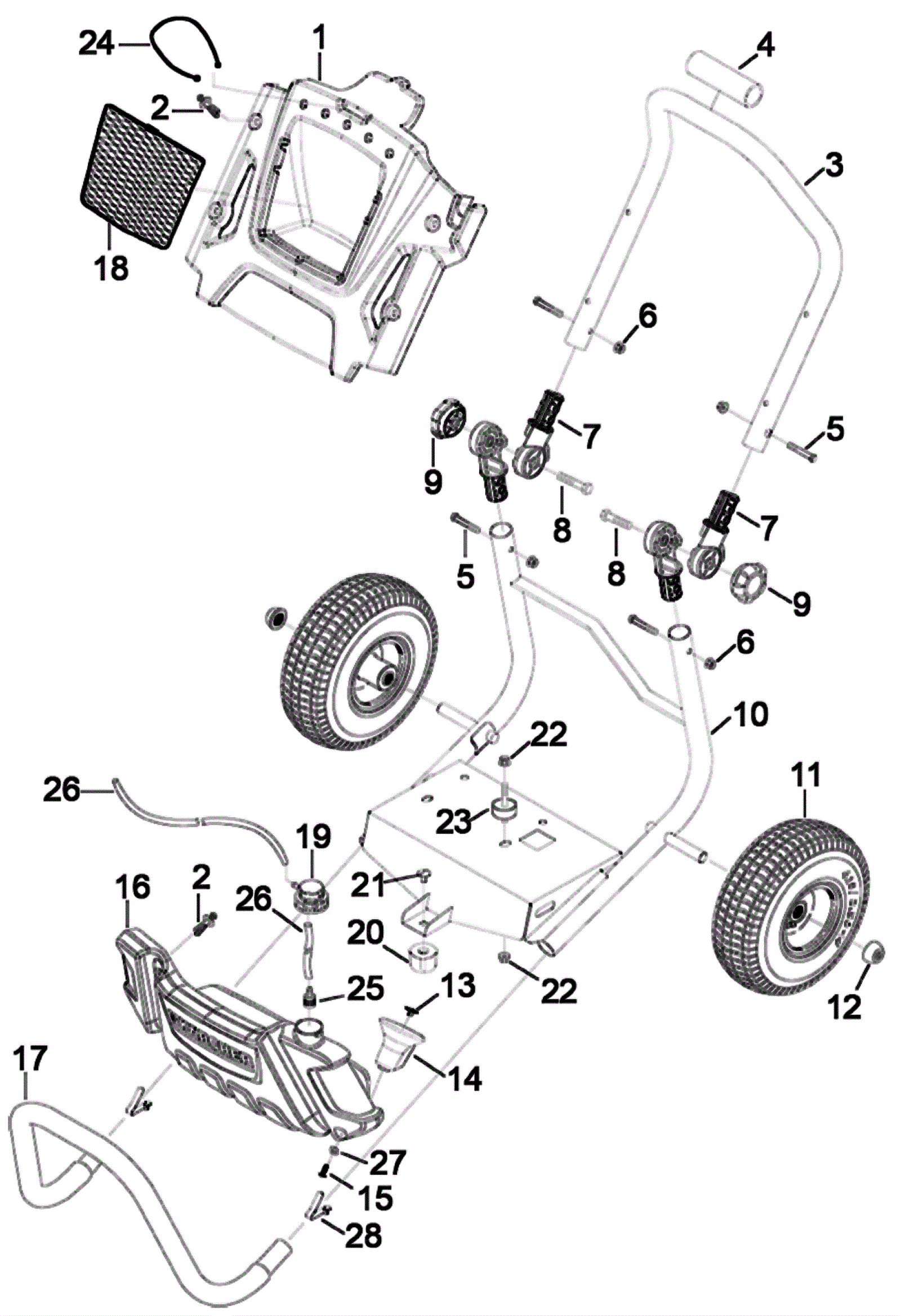

G2800 XC Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-9708 Storage/name plate $49.17 1 usually ships 7-19 days
2 273-0436 Anchor rivet with screw $1.40 8 usually ships 7-19 days
3 273-9709 Titanium handle $50.60 1 usually ships 7-19 days
4 273-9710 Foam grip (black) $5.49 1 usually ships 7-19 days
5 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 4 ships same day
6 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
7 273-9616 Rotary joint assembly $12.98 4 usually ships 7-19 days
8 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
9 273-9712 Knob $2.12 2 usually ships 7-19 days
10 273-9713 Titanium frame $95.70 1 usually ships 7-19 days
11 373-1019 10 inch wheel assembly steel rim with tube (gray) $24.97 2 (after SN 102457) usually ships 7-19 days
12 373-1020 5/8 inch plastic cap (black) $2.30 2 ships same day
13 273-9714 Weld nut #10-32 $4.39 1 usually ships 7-19 days
14 273-9715 Wand holder $5.49 1 ships same day
15 999-1487 Screw 10-32 x 5/8 pan head phillips stainless steel $0.99 1 ships same day
16 273-9717 Detergent tank $30.88 1 usually ships 7-19 days
17 273-9718 Titanium bumper $38.50 1 usually ships 7-19 days
18 273-9719 Bungee net $4.73 1 usually ships 7-19 days
19 273-2077 Cover $11.88 1 ships same day
20 273-0437 Rubber buffer $3.87 1 usually ships 7-19 days
21 999-1575 Bolt 5/16-18 x 1/2 carriage head zinc plated $0.99 1 usually ships 1-5 days
22 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 8 ships same day
23 273-9722 Vibration isolator $5.49 4 usually ships 7-19 days
24 273-9723 Cord bungee $1.96 1 usually ships 7-19 days
25 252-2016 Filter with weight $30.69 1 usually ships 12-29 days
26 173-6219 Hose (sold by the foot) $6.60 79 in (to order as cut goods) usually ships 12-29 days
27 273-9724 Flat washer #10-32 $1.96 1 usually ships 7-19 days
28 273-9725 Button snap $3.55 2 usually ships 7-19 days
