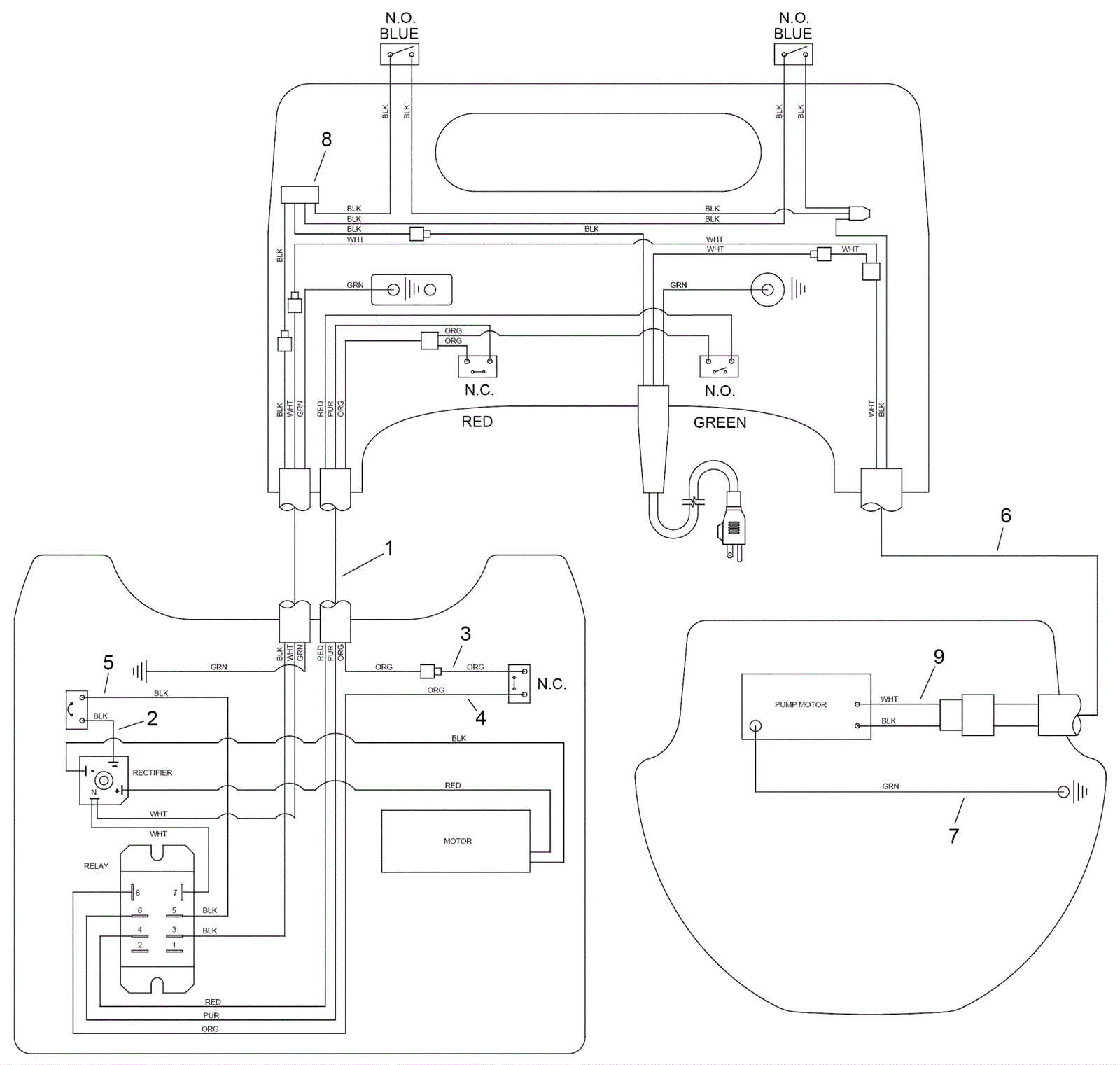

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-5544
|
Main harness |
1 |
|
|
2 |
273-5545
|
10 inch wire (black) |
1 |
|
|
3 |
273-5546
|
15 inch wire (orange) |
1 |
|
|
4 |
273-5547
|
18 inch wire (orange) |
1 |
|
|
5 |
273-5548
|
9 inch wire (black) |
1 |
|
|
6 |
273-7182
|
Deluxe pump housing harness |
1 |
|
|
7 |
273-7183
|
9 1/2 inch wire (green) |
1 |
|
|
8 |
273-7184
|
4 way wire joint (black) |
1 |
|
|
9 |
273-7185
|
Wire assembly with 2 pin connectors |
1 |
|
|
