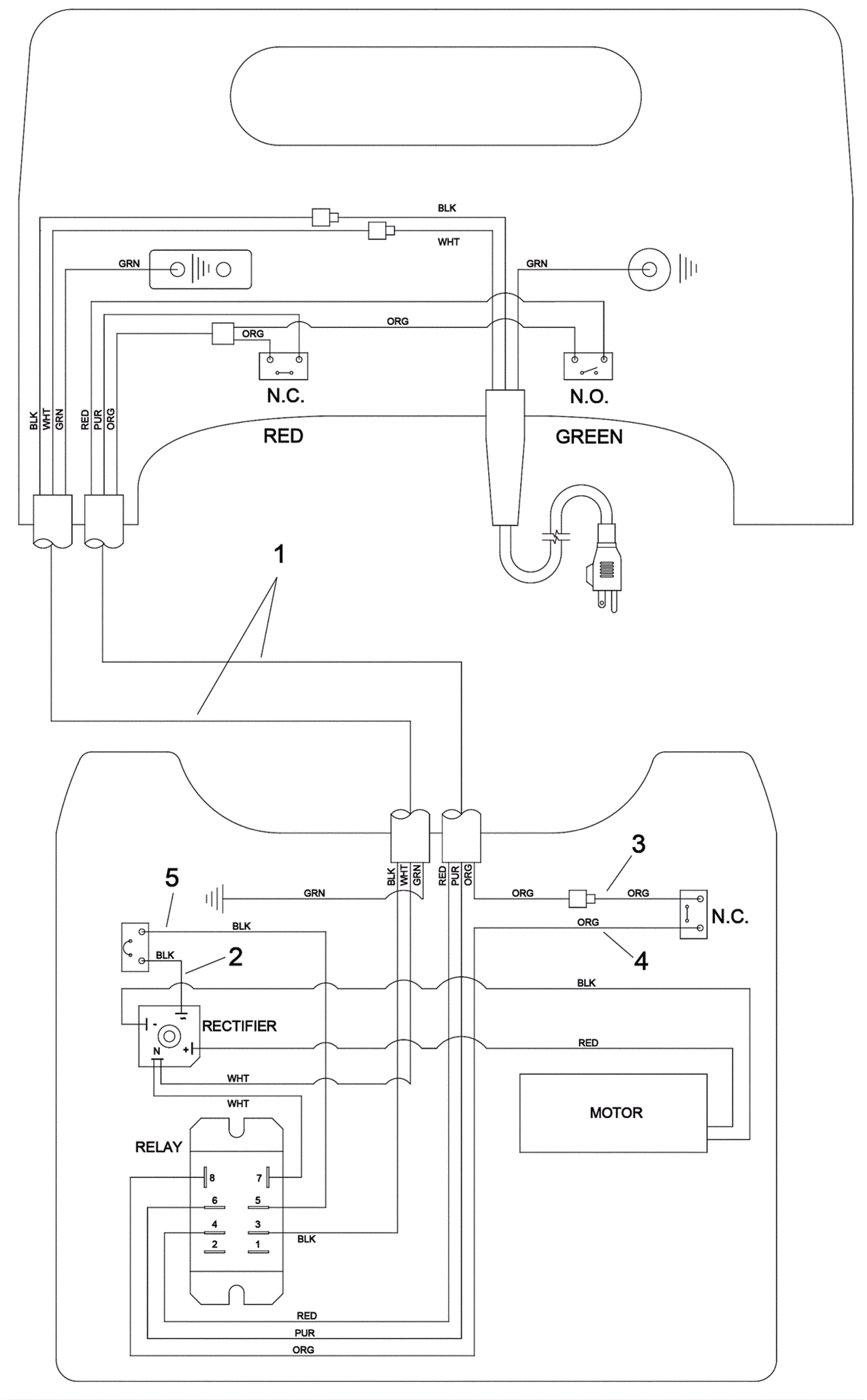

BRS 43/500C 120V Basic Wiring Diagram-Model 1.006-713.0

#PartDescriptionPriceReqNotesAvailability
1 273-5544 Main harness $68.50 1 usually ships 7-19 days
2 273-5545 10 inch wire (black) $4.95 1 usually ships 1-5 days
3 273-5546 15 inch wire (orange) $6.90 1 usually ships 1-5 days
4 273-5547 18 inch wire (orange) $7.50 1 usually ships 1-5 days
5 273-5548 9 inch wire (black) $5.85 1 usually ships 1-5 days
