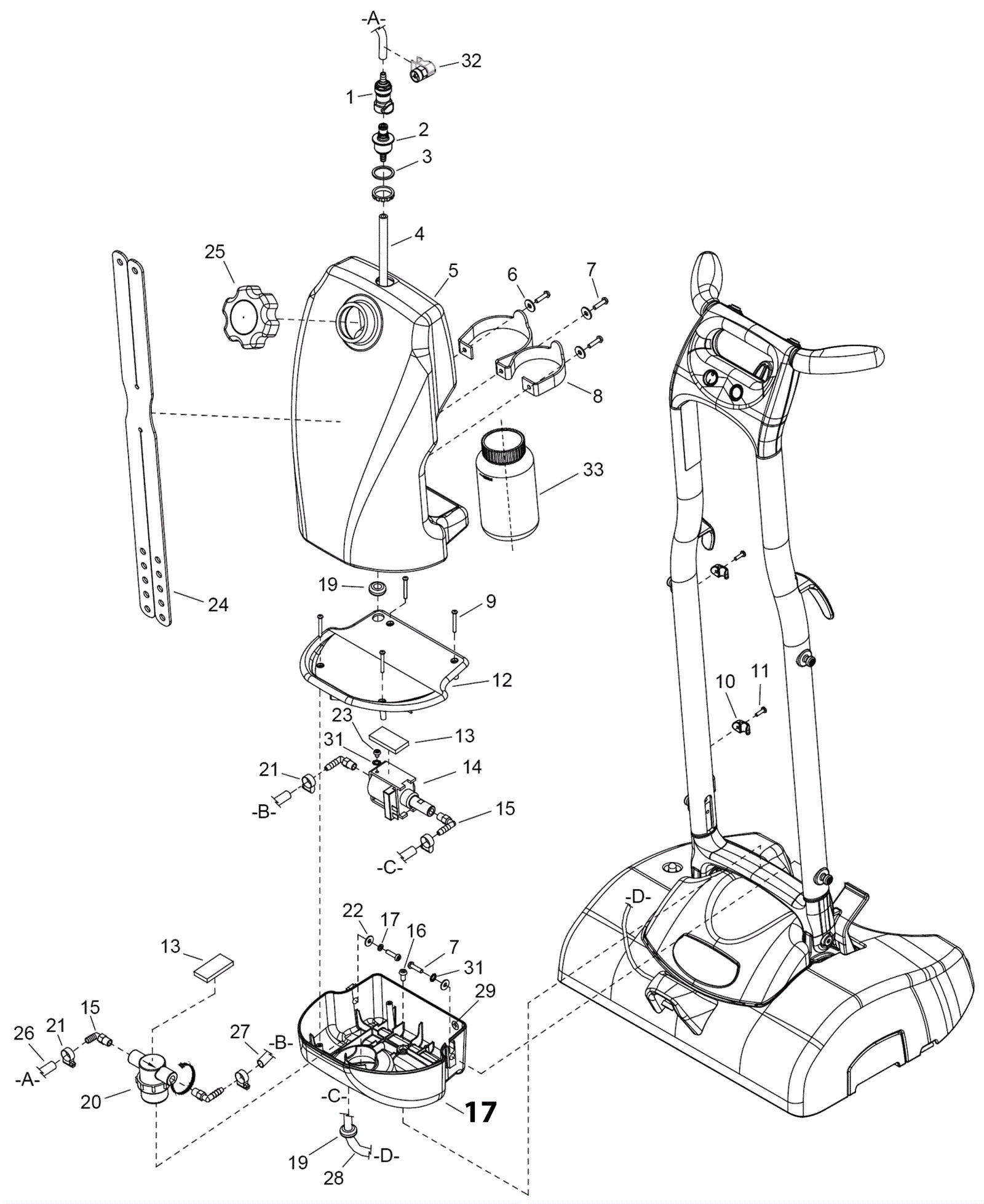

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-5524
|
Female quick connect |
1 |
|
|
2 |
273-5525
|
Male quick connect |
1 |
|
|
3 |
273-5526
|
Coupler seal |
1 |
|
|
4 |
273-5527
|
Suction hose |
1 |
|
|
5 |
273-5528
|
Solution tank |
1 |
|
|
6 |
173-4178
|
Washer M6 flat plated (OBSOLETE) |
3 |
|
|
7 |
273-5489
|
Screw M5 x 20mm pan head phillips stainless steel |
3 |
|
|
8 |
273-5530
|
Chemical bottle strap |
1 |
|
|
9 |
273-5488
|
Screw 40 x 35 oval head |
5 |
|
|
10 |
273-5531
|
Tube clamp |
2 |
|
|
11 |
173-8687
|
Screw M4 x 14mm pan head phillips |
2 |
|
|
12 |
273-5532
|
Top pump cover |
1 |
|
|
13 |
273-5533
|
Neoprene gasket |
2 |
|
|
14 |
173-7036
|
120V flojet pump |
1 |
|
|
15 |
273-5543
|
Hosebarb 1/8 x 1/4 inch |
4 |
|
|
16 |
273-5534
|
Screw M6 x 12mm button socket head stainless steel |
3 |
|
|
17 |
273-5535
|
Washer M5 spring lock |
2 |
|
|
19 |
273-5537
|
Grommet |
2 |
|
|
20 |
273-5538
|
Strainer |
1 |
|
|
21 |
173-2741
|
Hose clamp |
4 |
|
|
22 |
273-5539
|
Washer M5 stainless steel |
2 |
|
|
23 |
173-8400
|
Screw 10-32 x 1/4 |
1 |
|
|
24 |
273-5482
|
Hold down sprayer strap |
1 |
|
|
25 |
273-8802
|
Cap 2 1/4 inch power grip (yellow) |
1 |
|
|
26 |
273-5540
|
Urethane hose 1/4 x 30 inch |
1 |
|
|
27 |
273-5541
|
Urethane hose 1/4 x 8 inch |
1 |
|
|
28 |
273-5542
|
Urethane hose 1/4 x 27 inch |
1 |
|
|
29 |
273-5457
|
Ground symbol decal |
1 |
|
|
31 |
999-0311
|
Washer #10 external star lock zinc plated |
2 |
|
|
32 |
373-9236
|
Jet holder assembly |
1 |
|
|
33 |
273-8803
|
500ml bottle |
1 |
|
|
