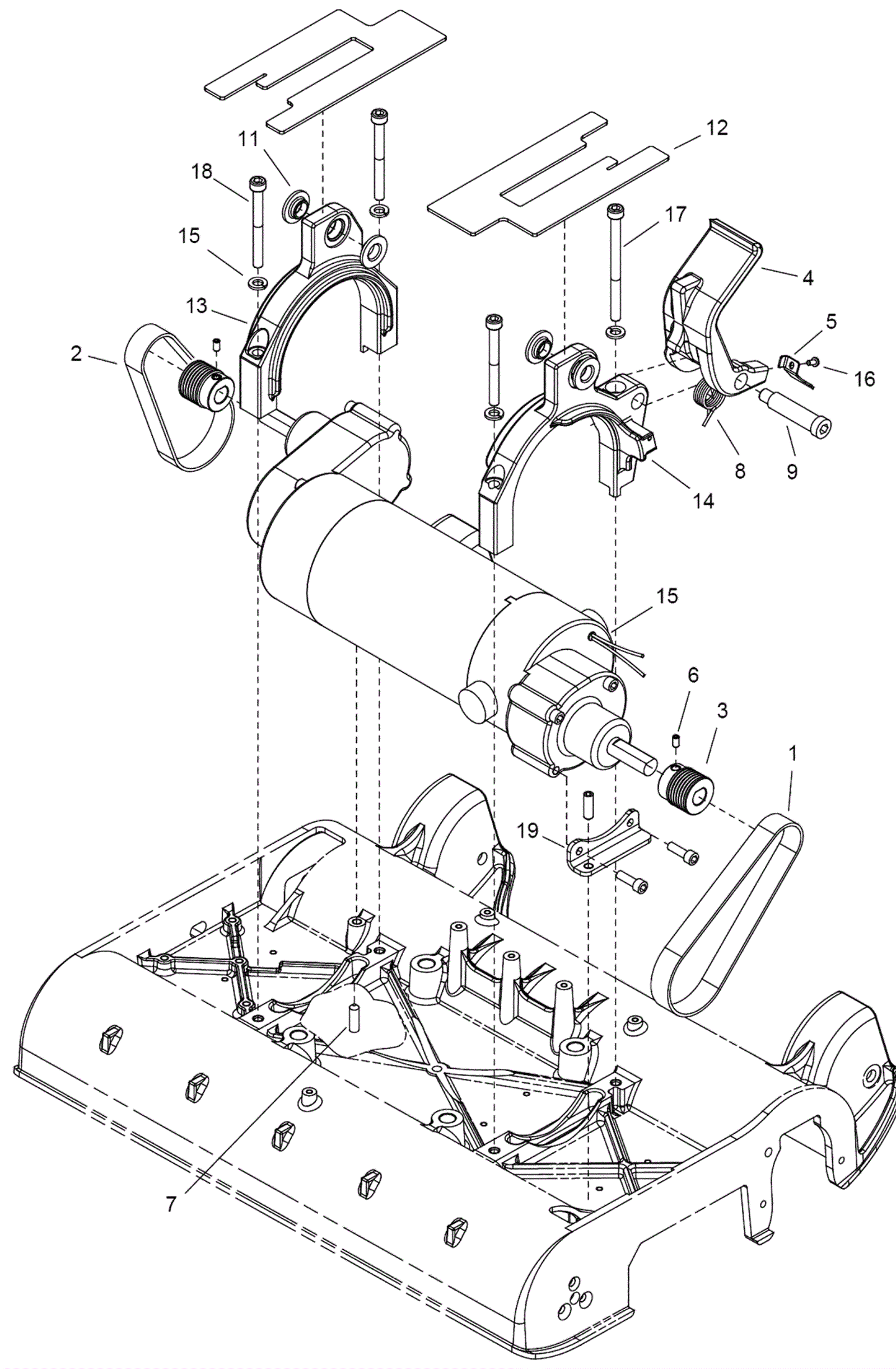

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-7179
|
Left side flex v-belt |
1 |
|
|
2 |
273-7178
|
Right side flex v-belt |
1 |
|
|
3 |
273-7180
|
27mm pulley |
2 |
|
|
4 |
273-8797
|
Foot pedal release handle (yellow) |
1 |
|
|
5 |
273-5512
|
Foot pedal switch bracket |
1 |
|
|
6 |
273-5468
|
Screw M6 x 8mm set |
2 |
|
|
7 |
173-5563
|
Screw M6 x 25mm set nickel plated |
2 |
|
|
8 |
273-5513
|
Torsion spring |
1 |
|
|
9 |
273-8798
|
Shoulder bolt M8 x 40 inch |
1 |
|
|
10 |
273-5515
|
Brush motor |
1 |
|
|
11 |
273-5508
|
Flanged bearing |
4 |
|
|
12 |
273-5509
|
Plate |
2 |
|
|
13 |
273-5505
|
Right side motor mount bracket |
1 |
|
|
14 |
273-5514
|
Left side motor mount bracket |
1 |
|
|
15 |
273-5506
|
Washer 6mm spring lock (OBSOLETE) |
4 |
|
|
16 |
273-5441
|
Screw M3 x 6mm button socket head (OBSOELTE) |
1 |
|
|
17 |
273-5510
|
Screw M6 x 80mm socket head cap |
1 |
|
|
18 |
273-5507
|
Screw M6 x 60mm socket head cap |
3 |
|
|
19 |
273-7181
|
Motor adjustment bracket |
1 |
|
|
N/S |
273-8796
|
87/100 belt conversion kit |
1 |
|
|
