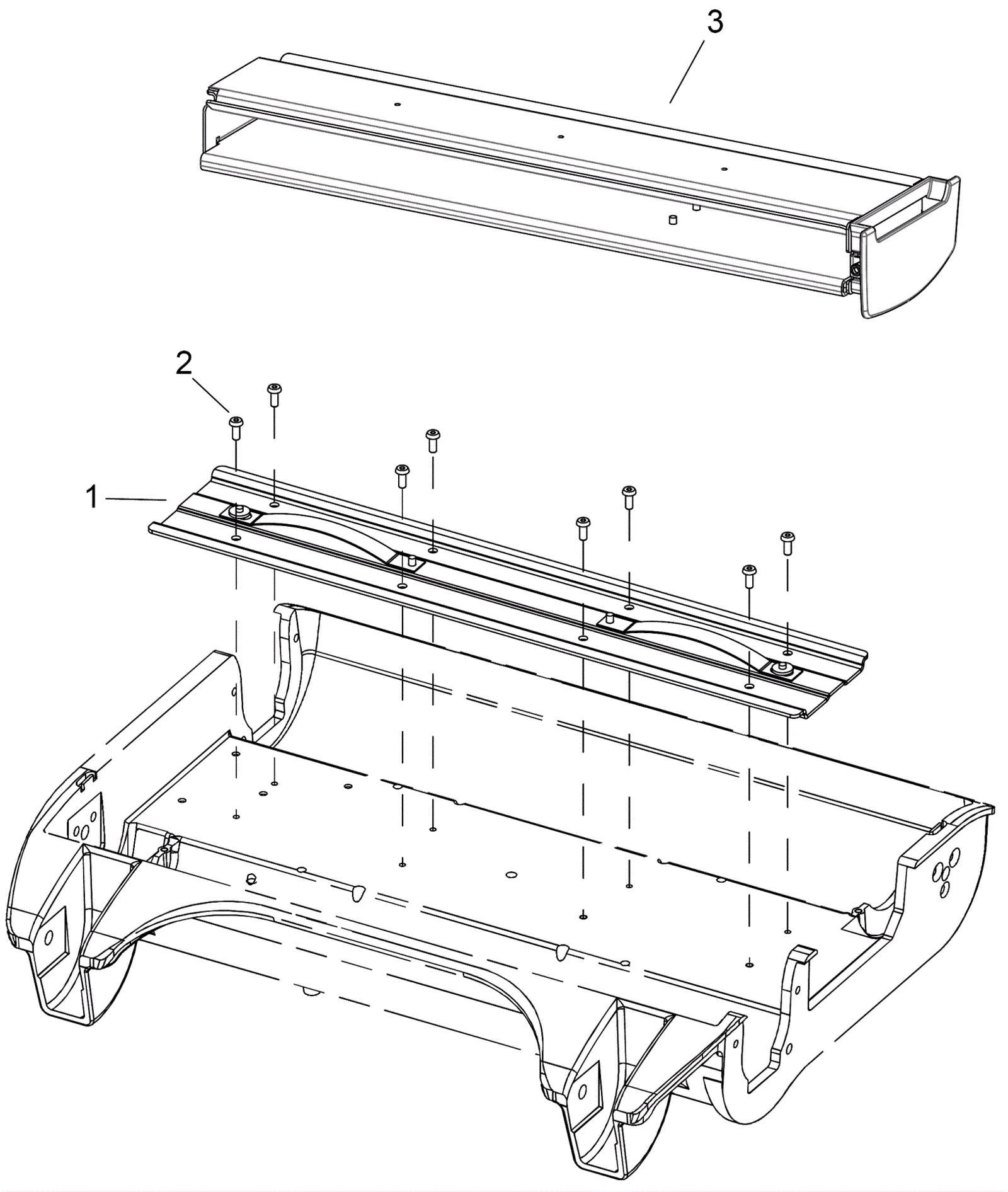

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
273-5498
|
Hopper guide assembly |
1 |
(includes 1b-1e) |
|
1b |
373-9231
|
Spring clip |
2 |
|
|
1c |
373-9232
|
Spacer |
2 |
|
|
1d |
373-9230
|
Rivet |
4 |
|
|
1e |
373-9233
|
Rail guide |
1 |
|
|
2 |
273-5499
|
Screw M4 x 10mm button head socket cap |
8 |
|
|
3 |
273-8794
|
Hopper frame and plate assembly |
1 |
|
|
